SPECIFICATIONS

Application: Outdoor

Brand Name: Vstarcam

Customized support: Online Technical Support,Customized Logo,Software Reengineering,OEM, ODM

Data Storage Options: Cloud,Micro SD card,Memory Card,Sd Card,dvr,NVR,NAS,Full HD

Feature: Mobile Detection Alarm

Function: Two-Way Audio,Pan-Tilt,Abnormal Sound Detection,Alarm I/O,Reset,Built-In Mic,Night Vision,Waterproof / Weatherproof,Wide Angle,Built-In Siren

Image Sensor: dual-sensor

Key Feature1: Siren alarm

Key Feature2: Automatic White Balance

Keyword: 4G/WiFi CCTV IP Camera

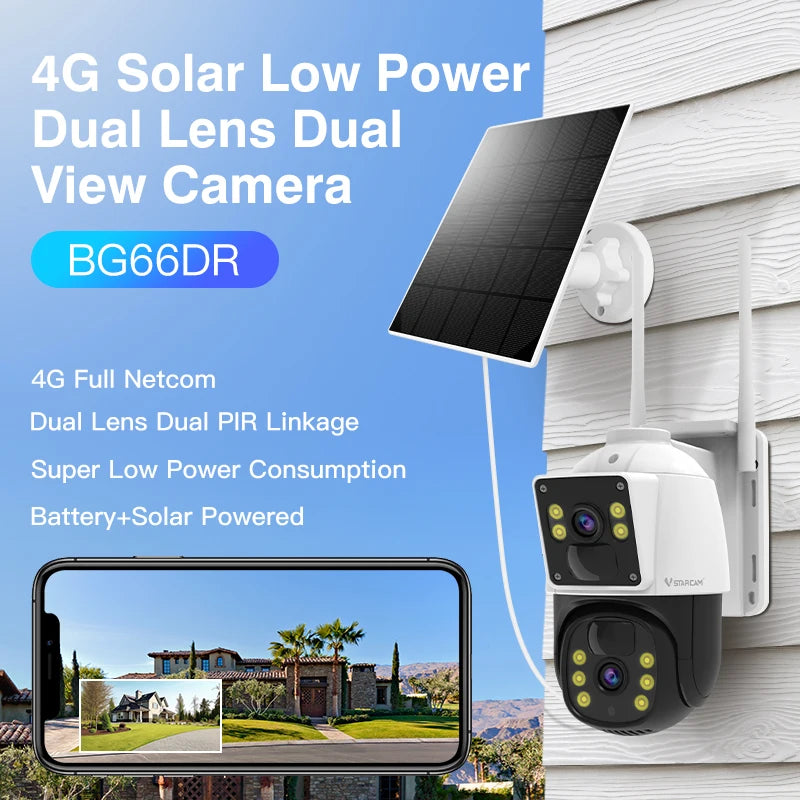

Model Number: BG66DR

Night vision: Color Infrared Night Vision

Place of Origin: Guangdong, China

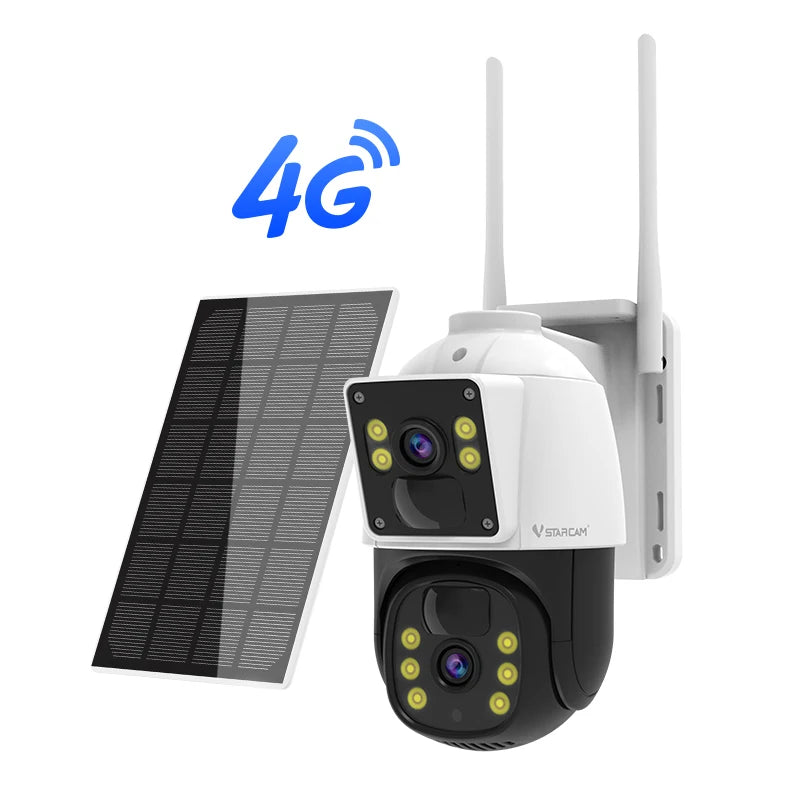

Product name: Dual Lens PTZ Camera

Resolution: 4MP

Sensor: CMOS

Special Features: Human Motion Tracking,Night Vision,Vandal-Proof,Motion Detection,Sound Detection,Waterproof / Weatherproof,Built-In Siren,Pan-Tilt,Two-Way Audio

Style: Dome Camera

Video Compression Format: H.264+

Warranty: 1 Year

Zoom: optical zoom

network: wifi+RJ45

Products Description

Product Paramenters

Model #			CS663DR
Operating system			Embedded Linux
Online visitor			Supports 4 visitors at the same time
CPU/Image sensor			Ingenic T40, 2 MP, dual lens, 1/3 inch 1440p progressive scan CMOS sensor
Minimum illumination			0.5 Lux(Color mode), 0.1 Lux(B&W mode)
Lens			4mm-6mm
Night Vision			IR-CUT with auto-switching,Dual light source, irradiation distance 15-30 meters
Compression standard			H.264 main profile/Motion-JPEG/JPEG
Data rate			Main stream:1080p(1920*1080)@25fps, Substream:360p(640×360)@15fps
Bit rate/maximum frame rate			128～4096kbps/25fps
Image adjustment			Adjustable brightness and contrast
Audio Input			Built-in - 38dB microphone
Audio Output			Built-in 8 Ω 1W speaker
Sampling frequency/bit width			8KHz/16bit
Compression standard/Bit Rate			G.711/64kbps

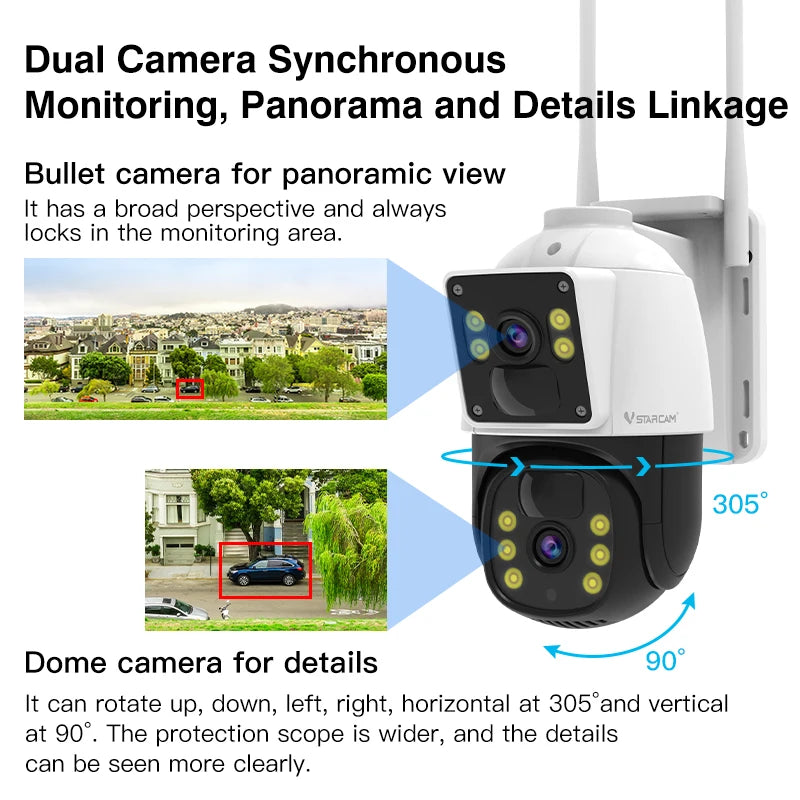

Rotation angle			Horizontal 350 °/Vertical 90 °,can be installed with 360 ° rotation
Preset position			Supports 16 presets (mobile app only supports 5)
Storage functions			Supports T-Flash card(max supports 256GB); Cloud Storage;NVR;NAS
Alarm detection			Support motion detection, humanoid detection, human tracking, alarm voice prompts, flash and illumination functions, and timed activation and shutdown of white light.
Rated voltage			DC12V
Power consumption			Rated power: 4.5W (infrared light on)/maximum power: 11W (PTZ on)
Operating condition			Temperature: -10～50℃; Humidity: ＜90%
Certifications			CE,Rohs,FCC
Warranty			1 Year

Installation Instructions

Customer feedback

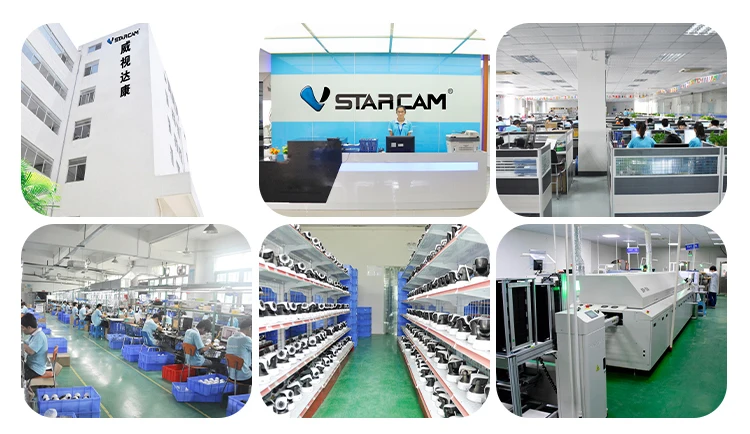

Company Profile
