SPECIFICATIONS

Brand Name: ENSTER

Customized support: Online Technical Support,Customized Logo,OEM, ODM,Software Reengineering

Data Storage Options: Memory Card,NVR

Function: Waterproof / Weatherproof,Two-Way Audio,Pan-Tilt,Night Vision,Reset,Built-In Mic

IR LED: 6PCS Array IR LEDs

Keyword: Solar Cctv

Lens: Autofocus 4.7-84mm Lens

Model Number: NST-S40W20AH+IPC7145-4G

Place of Origin: Guangdong, China

Product name: Wifi Wireless Security 3G 4G Lte Cctv Camera Solar Energy Systems

Resolution: 2.0MP 1920*1080P

Sensor: CMOS,1/2.8" Sony CMOS Sensor

Solar Panel: 60W

Special Features: Night Vision,Two-Way Audio,Human Motion Tracking,Motion Detection,Face Detection,Low Power,Waterproof / Weatherproof

Style: PTZ Camera

Technology: Pan / Tilt / Zoom

Video Compression Format: H.265

View angle: Pan 355°, Tilt 90°

Warranty: 2 Years

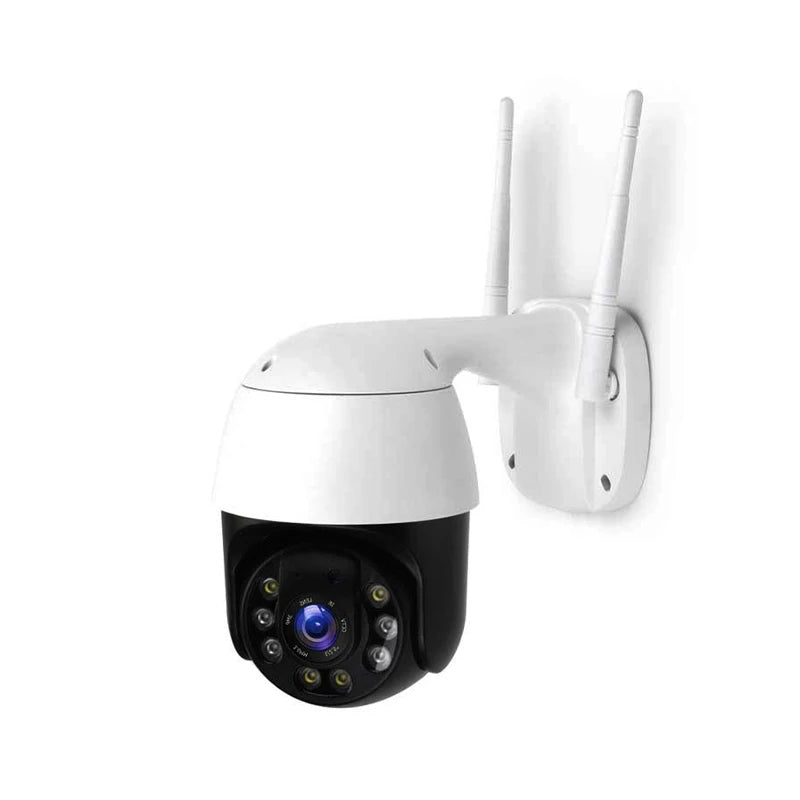

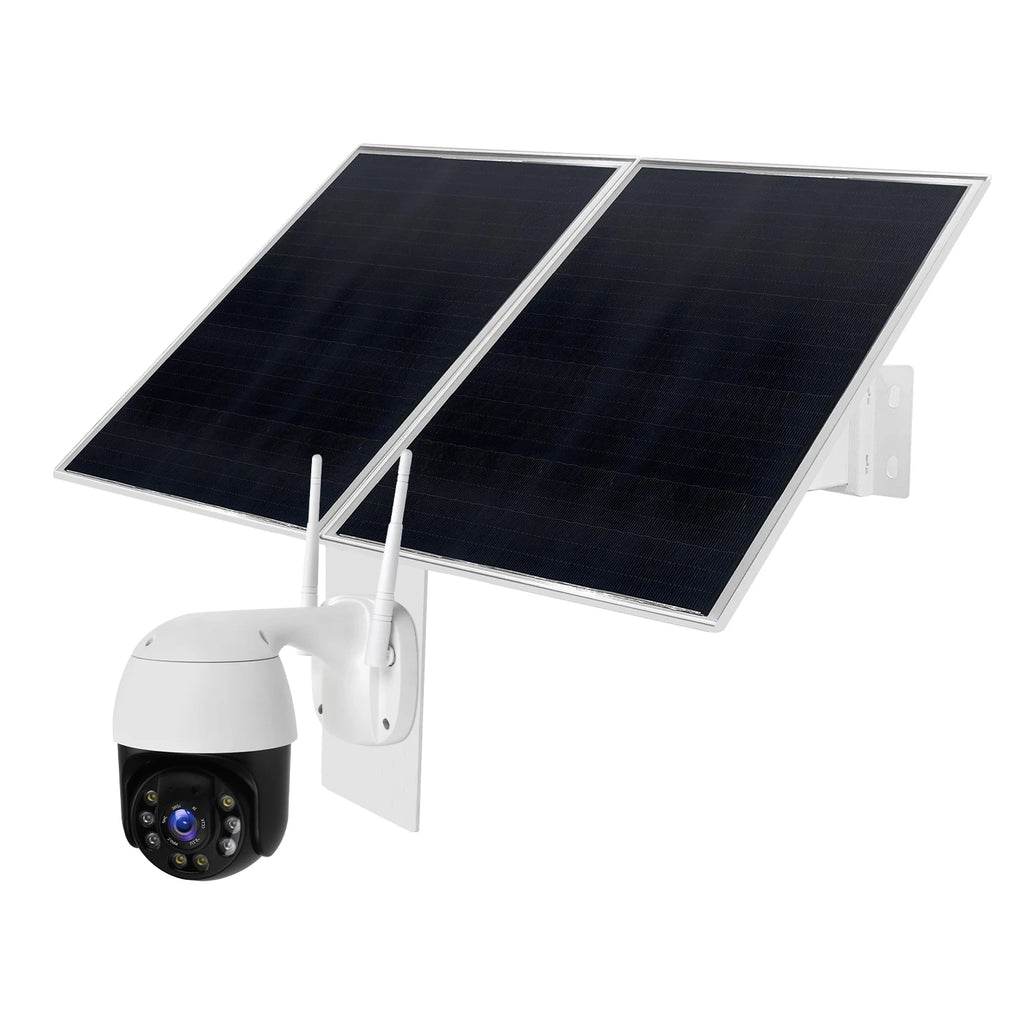

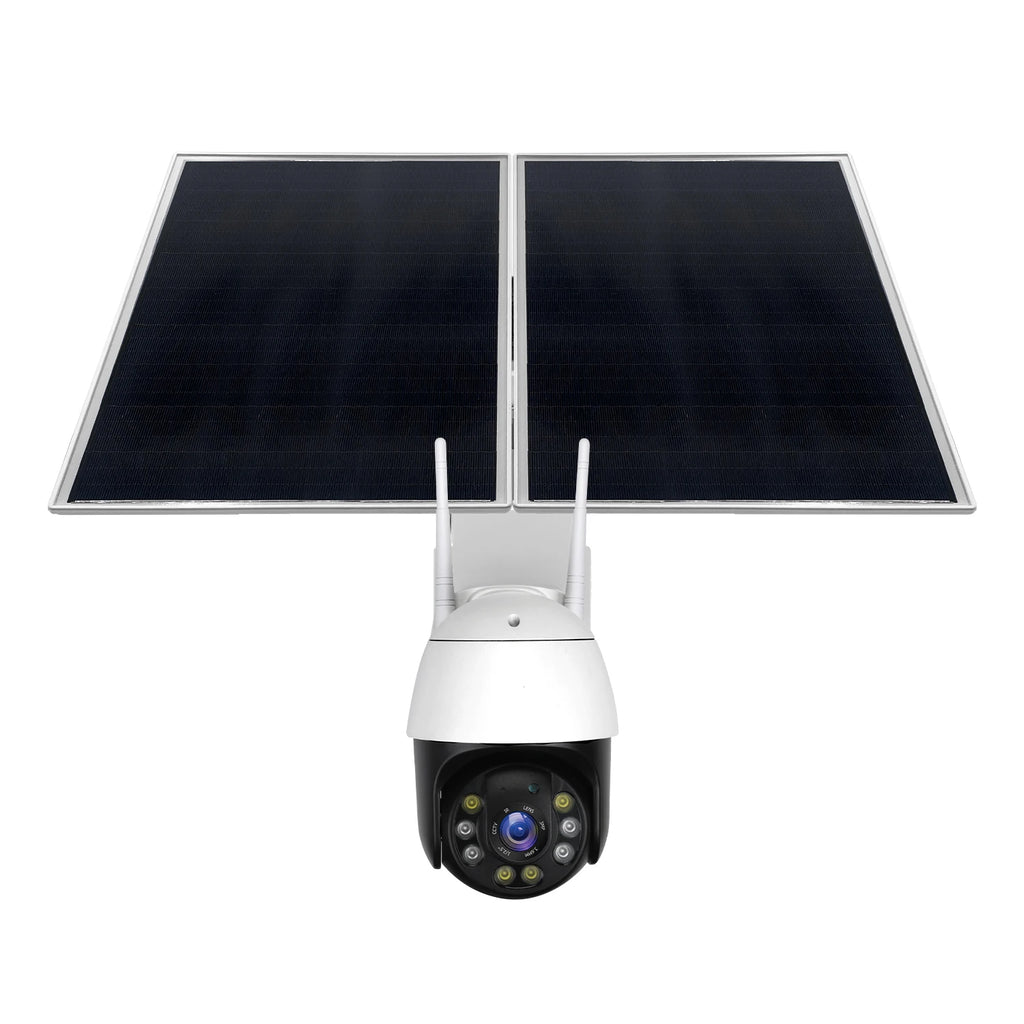

HD 1080P PT Solar Panel Powered Wifi Wireless Security 3G 4G Lte Cctv Camera Solar Energy Systems

Product Description

Feature:

1)Fixed 3.6mm Lens
2)Pan and Tilt
3)3G/4G SIM Card Slot
4)Strong double antenna 5db
5)SD Card Slot for local storage
6)6pcs Array IR LED
7)Plug-Play easy Setting (APP: CAMHI)

8)40W solar power pannel, output voltage:DC12V; with NO Li-battery;

Size: L67*3*63cm(packing size:72*23.5*76cm); equip with 4G Camera: work for 2-3days in cloudy & rainy day

Solar System:

1)1pc 40W solar pannel;

2)1pc 40W solar panel Bracket;

3)1pc waterproof box;

4)1pc 4G Camera NST-IPC7145-4G

Note: we suggest clients buying lithium battery in local, since battery is not acceptable to shipping agent

Model No.		NST-S40W20AH+IPC7145-4G	NST-S40W20AH+IPC7142-4G
4G	Support Network	4G FDD-LTE/TD-LTE/WCDMA/HSPA+/TD-SWCDMA/GSM/GPRS/EDGE
	Support Band	B1/B3/B7/B20/B38/B39/B40/B41/B26
	Support Band of frequencies	FDD LTE Band7 / Band3/BAND1/BAND8
		TD-LTE Band38 (2570-2620MHz) / Band39 (1880-1920MHz) / Band40 (2300-2400MHz) Band41 (2496-2690MHz)
		WCDMA/1900/2100/2600MHz
		TD-SCDMA Band34 (2010-2025MHz) / Band39 (1880-1920MHz)
		EDGE/GPRS/850/900/1800/1900MHz
		UMTS Band1 / Band2 / Band5 GSM 900 / 1800 / 1900 MHz
	Network Speed	FDD-LTE/TD-LTE (4G) :150MBPS/50MBPS
		WCDMA (3G): 21MBPS/5.76MBPS
		TD-SCDMA (3G): 2.8MBPS/2.2MBPS
Video	Resolution	5.0MP (2592H*1944V)	2.0MP (1920*1080)
	Video streaming	5MP(2592H1944V),HD(19201080P),VGA(640*360)	HD(19201080P),VGA(640360),QVGA(320*180)
	Compression standard	H.265/H.264
	IR-Cut	Built-in IR Cut.No color deviation indoor and outdoor
	Lens Mount	Fixed Lens 3.6mm
	Image Frame Rate	30fps maxmium,downward adjustable
	Night Vision	30Pcs LEDs,IR distance up to 30 meters
Audio	Audio Input	Build-in microphone, 15m effective range
	Audio Ouput	2W-4W loudspeaker, 30m effective range
Pan/Tilt	Pan range	0°~355°
	Tilt range	0°~90°
	Pan speed	0.1°~20°/ s
	Tilt speed	0.1°~12°/ s
Network	Ethernet	RJ-45 Ethernet
	Wireless	IEEE 802.11 b/g/n,Security supports WEP,WPA&WPA2 Encryption

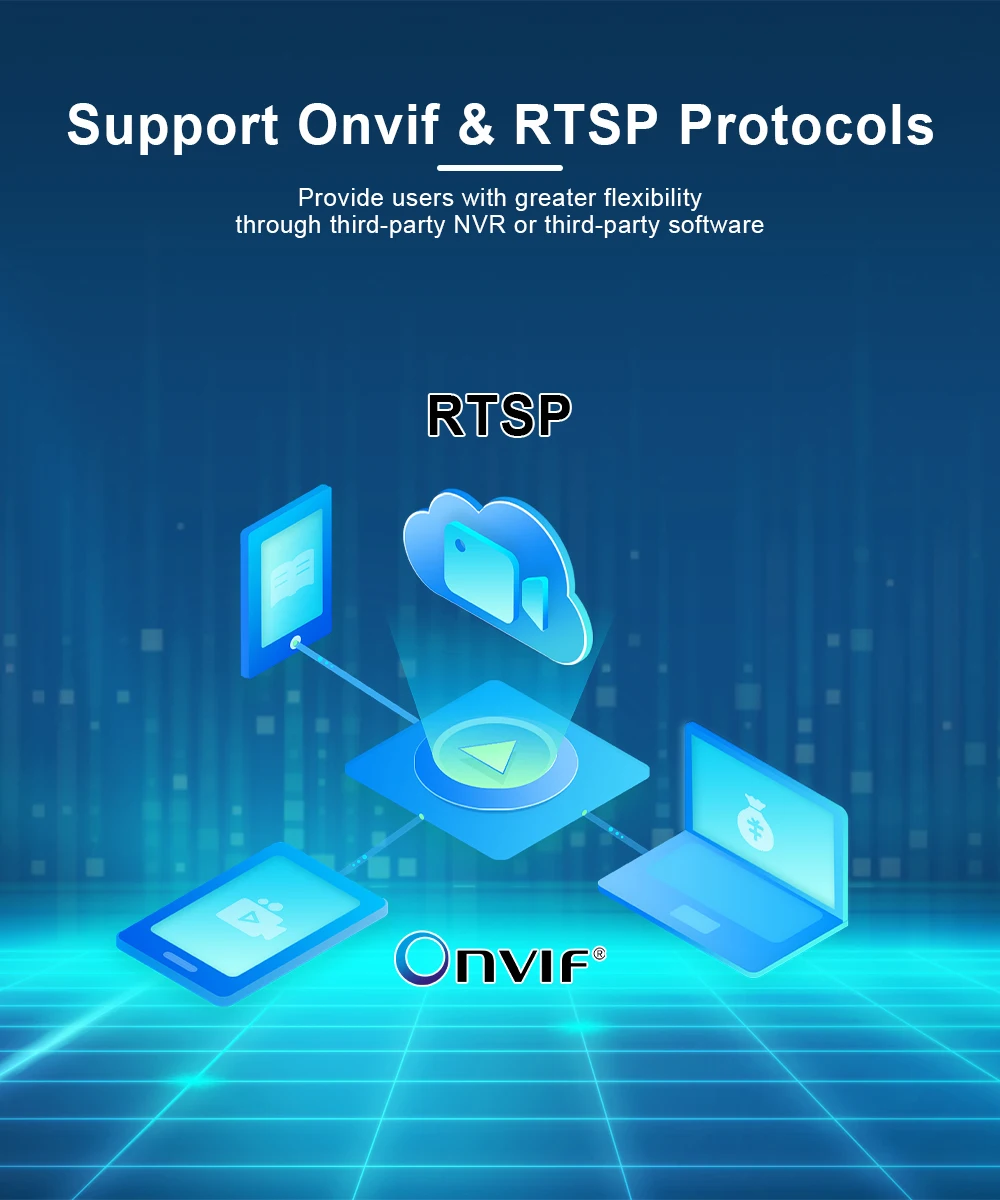

	Onvif Protocol	Supports NVR real time monitoring,recording and playback
Alarm	Motion Detection	Yes
	Alarm Setting	Supports Email,Phone push
	Alarm recording	Yes
Storage	MicroSD Card	Supports up to 128G microSD card for recording and playback
	Recording mode	Manual Record,Alarm Record,Timing Record
	View the video	Support Remote video playback
Camera System	For Phone	Support IOS and Android system smart phones or tablet PCs
	For Windows PC	CMS suports1-,4-,6-,8-,9,16-Channel IP Camera centralized monitor,record and playback on Windows PC
Solar Energy Power Supply	Working time	3-5 days (rainy and cloudy days)
	Solar panel	40 W high efficiency mono crystalline silicon
	Battery	A class Li-ion battery
	Capacity of battery	12V/ 8-40Ah
	Output voltage	DC:9~12.6V
	Bracket	Alloy pressing bracket
Waterproof	Product Type	Outdoor use
	Waterproof	IP66
Weight	Package weight	3.2KG
	Accessories	Adaptor,User Manual,Bracket,Screw
