SPECIFICATIONS
APP: XMeye App
Alarm System: Motion Detection + Email Alert +APP Push
Audio Input/output: HDMI
Brand Name: TinoSec/OEM

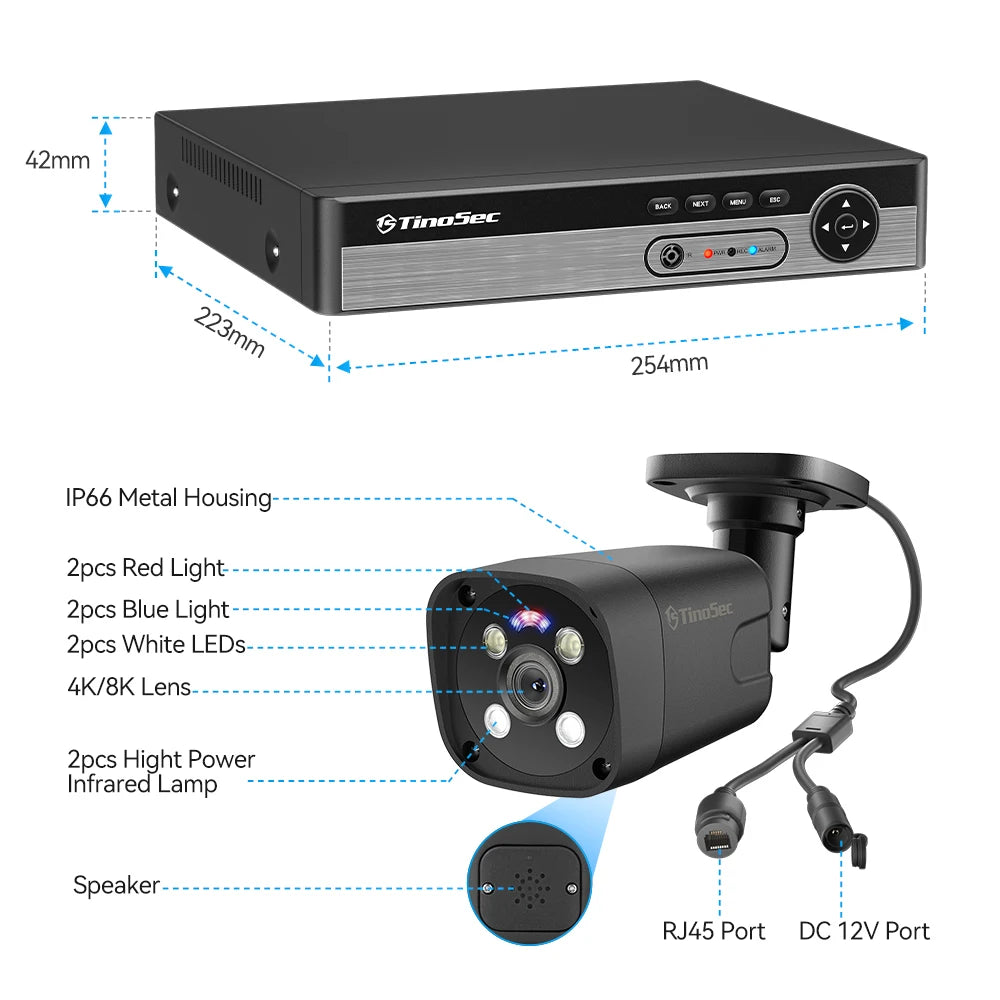

Camera Lens: 3.6mm
Camera Material: Metal Housing
Certification: CE,ROHS
Customized support: Online Technical Support,Customized Logo,OEM, ODM,Software Reengineering
Data Storage Options: Cloud,Full HD
Function: Waterproof / Weatherproof,Built-In Siren,Two-Way Audio,Night Vision,Alarm I/O,Reset,Built-In Mic
Hard Disk Drive (HDD): 1*SATA Port (support up to 8TB)
IR Distance: 30m
IR Led: 2pcs IR LEDs+2pcs White leds,blue_red light
Model Number: 6108K-8-669BP-AI-40N-CP
NVR Power Supply: 48V
Place of Origin: Guangdong, China
Sensor: CMOS
Special Features: Night Vision,Two-Way Audio,Motion Detection,Waterproof / Weatherproof,Face Detection
Video Compression Format: H.265
Warranty: 1 Year
Main Features:

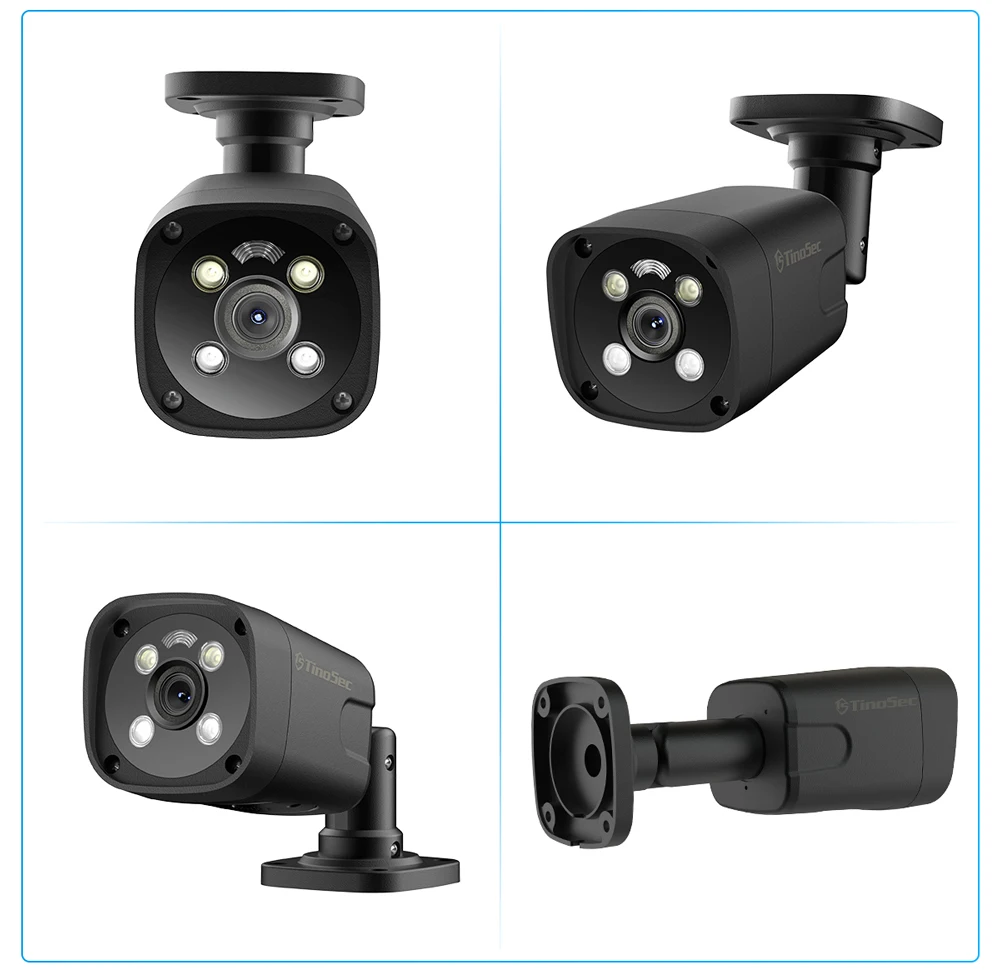

1. The camera is a Metal Casing, Waterproof and Dustproof. Suitable for indoor and outdoor use.
2. 4MP POE Camera System. Support Motion Detection Camera Sound Alarm + Email Alert + Red and Blue Light Alarm.Trigger multiple alarms at the same time to scare off intruders.
3. Support custom camera alarm sound or alarm bell.
4. 8 Channel NVR Design, Support To Connect Up To 16pcs Cameras. You can buy Tinosec PoE IP cameras and a PoE Switch to expand your CCTV system.
5. The Camera has bulit in Microphone and Speaker, Support Two-way Audio Recording.
6. Newest AI Camera Support Face Detection/Face Record and playback.
7. Three Night Vision Modes Setting: Infrared night vision, Dual warning lights, Full color night vision.
8. H.265 Video Encoding provides you with Smoother and Clearer video images. And greatly Reduce the Storage Space.
9. P2P Multi-User Remote Access: P2P technology let you be able to view the live situation of your house wherever you are, just with the P2P account on the app via your Smartphone or tablet.
10. XMeye independently developed the RTS Cloud architecture, which is faster and the preview is more stable.

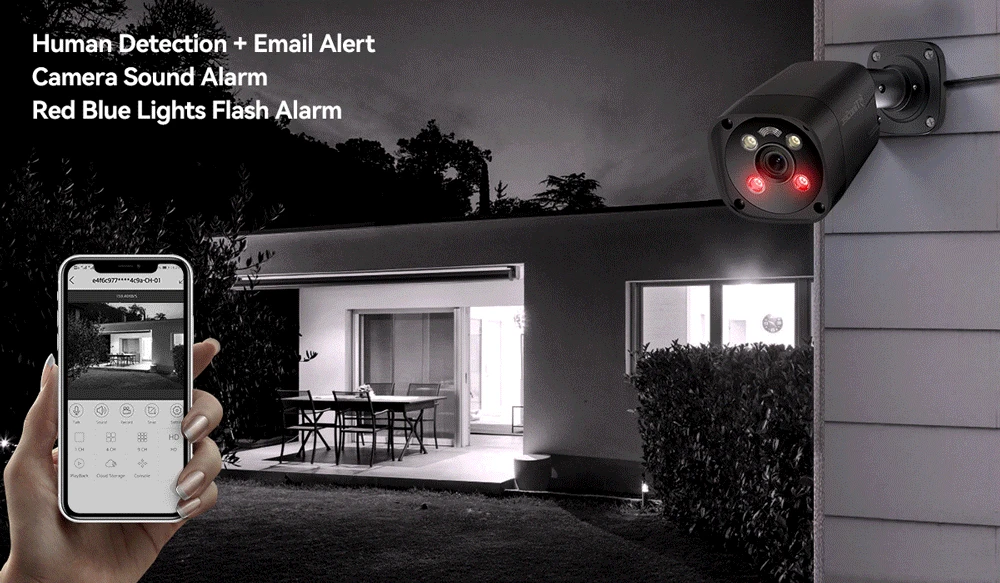

Smart AI Human Motion Detection + Email Alert + Red-blue Light Alarm
When it detects a moving human body at night, 2 white LED lights will light up as a warning deterrent and provide a color
surveillance video.
At the same time, the camera will sound alarm and the red and blue lights will flash alternately. Then the alarm messages will be sent to your mailbox.
Note: Only when the app is opened will received the alarm.
Full Color Night Vision
When the 2 white LEDs are lit, the surveillance video at night will show a colorful picture.
Three night vision modes for you to choose: IR infrared night vision, dual warning lights, full color night vision.
Face Record/Face Detection/Face Playback
When someone breaks into the shooting area and the face is captured by the camera, it will be recorded for you to review.
Real-Time Two-Way Audio Communication
Camera Has Built In Microphone And Speaker, Never Miss a Moment With Your Family.

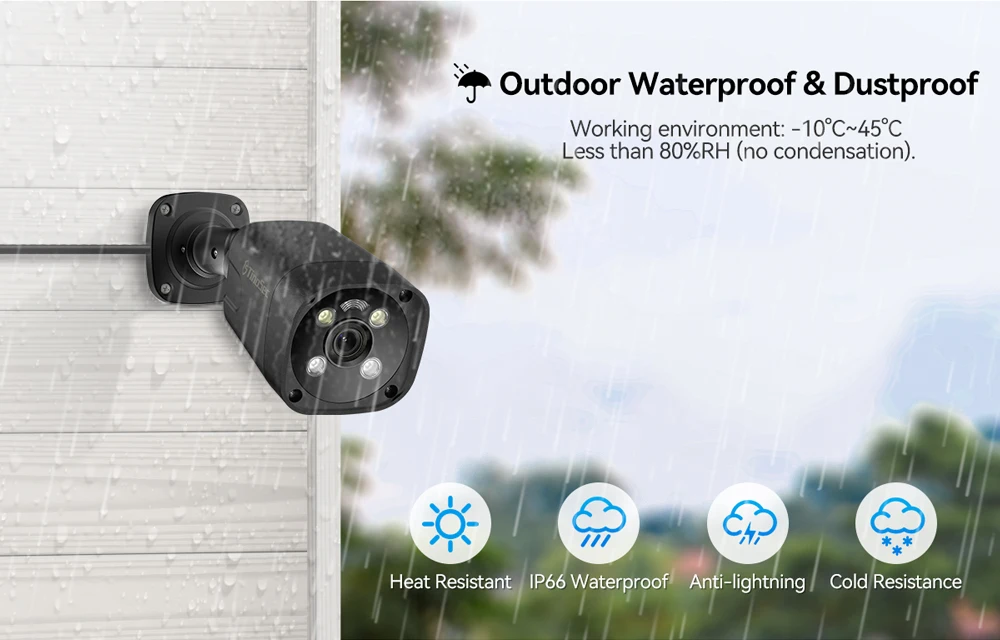

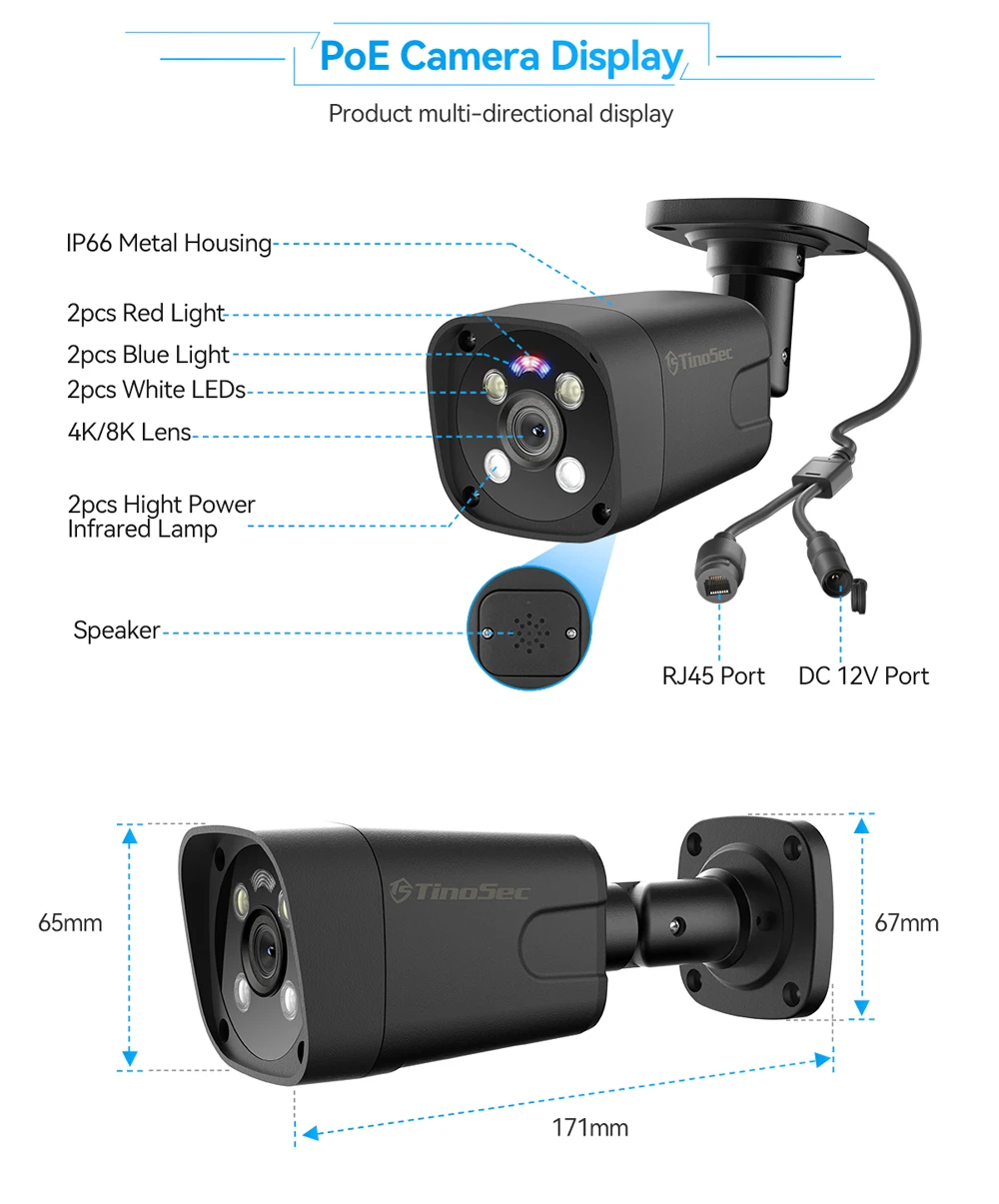

IP66 Outdoor Waterproof & Dustproof
The camera has a metal body and housing, with an IP66 waterproof rating.
It can stand harsh weather conditions, including rain, snow, intense cold and heat.

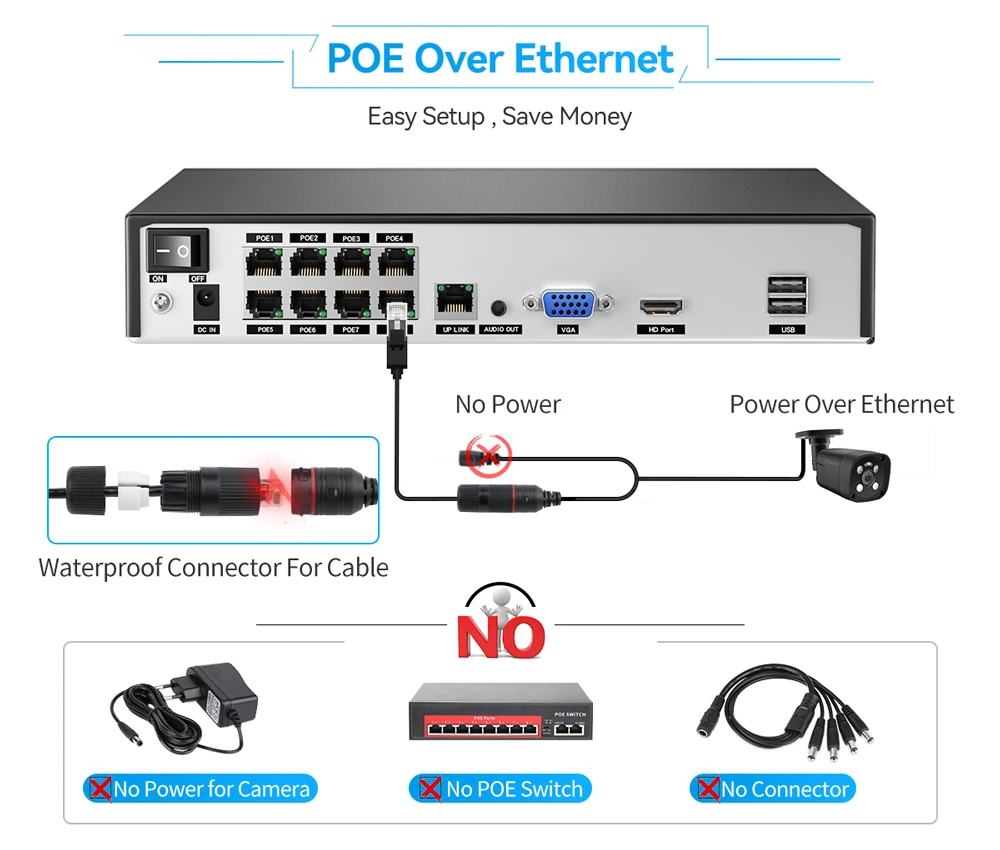

POE Advantage, Why Choose POE?
Don't need extra power cables or adapters or switch.Plug And Play and easy setup.
Save Money and Convenient, POE NVR = NVR + POE Switch.
Each camera comes with a Waterproof connector for cable.

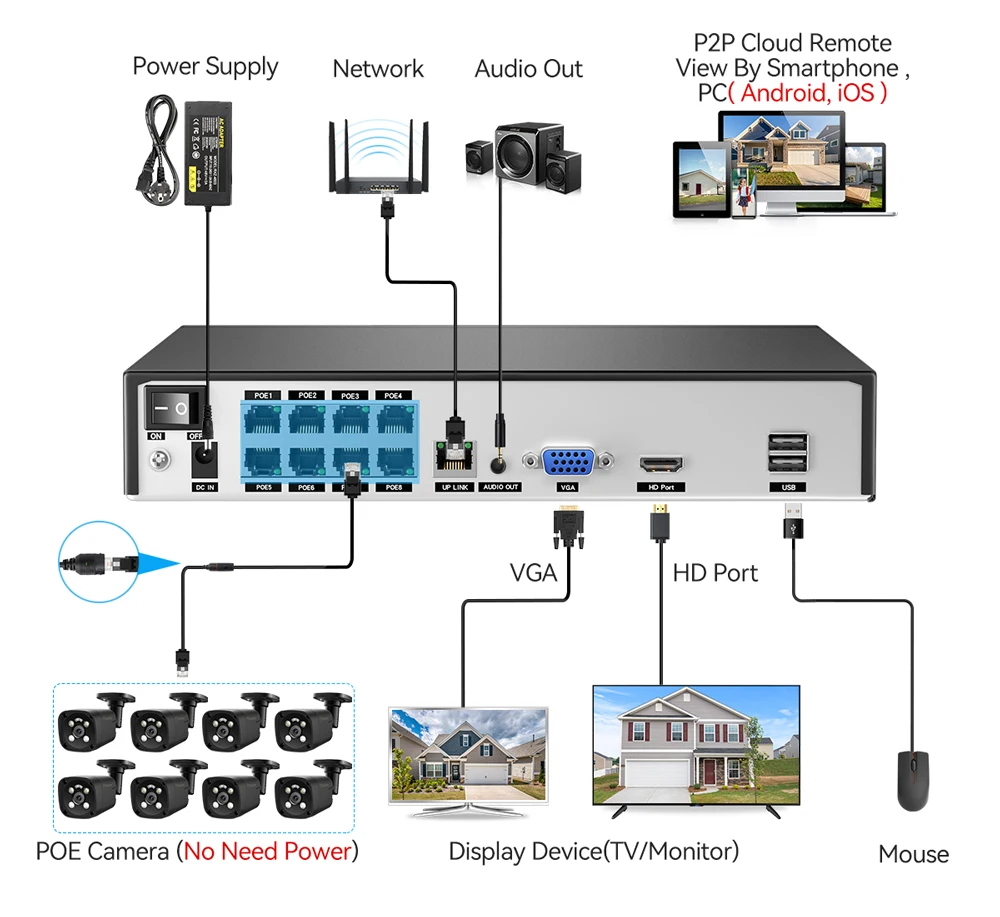

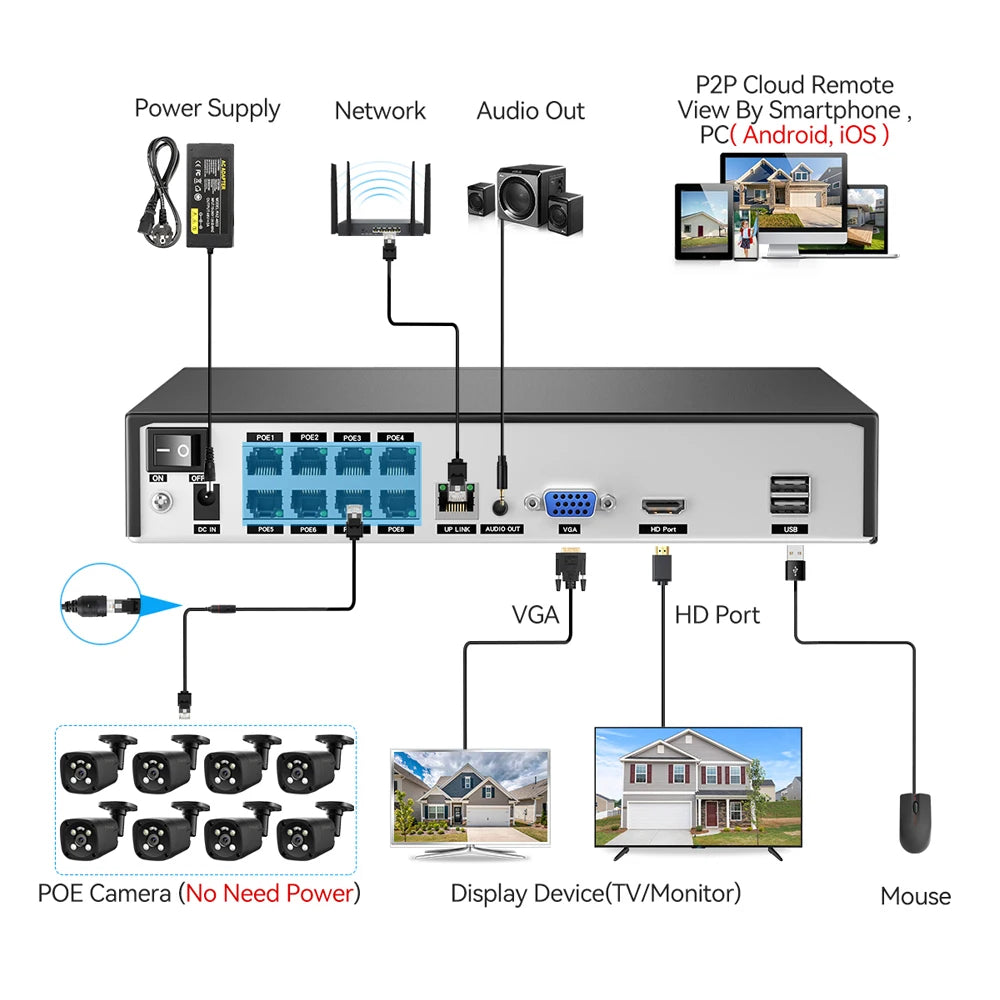

Install and Connect it
It can be quickly and easily setup by anyone. Instantly see live video using your computer, tablet, or phone from anywhere.

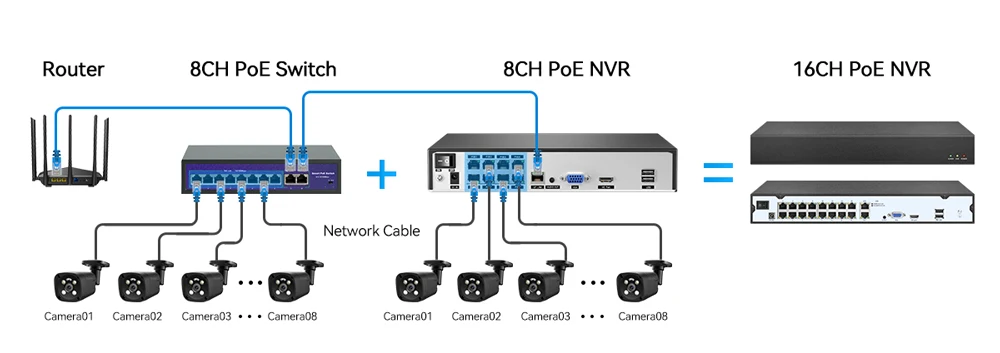

It Can be Extended to 16pcs 5MP POE Camera if use 8CH POE Switch Together

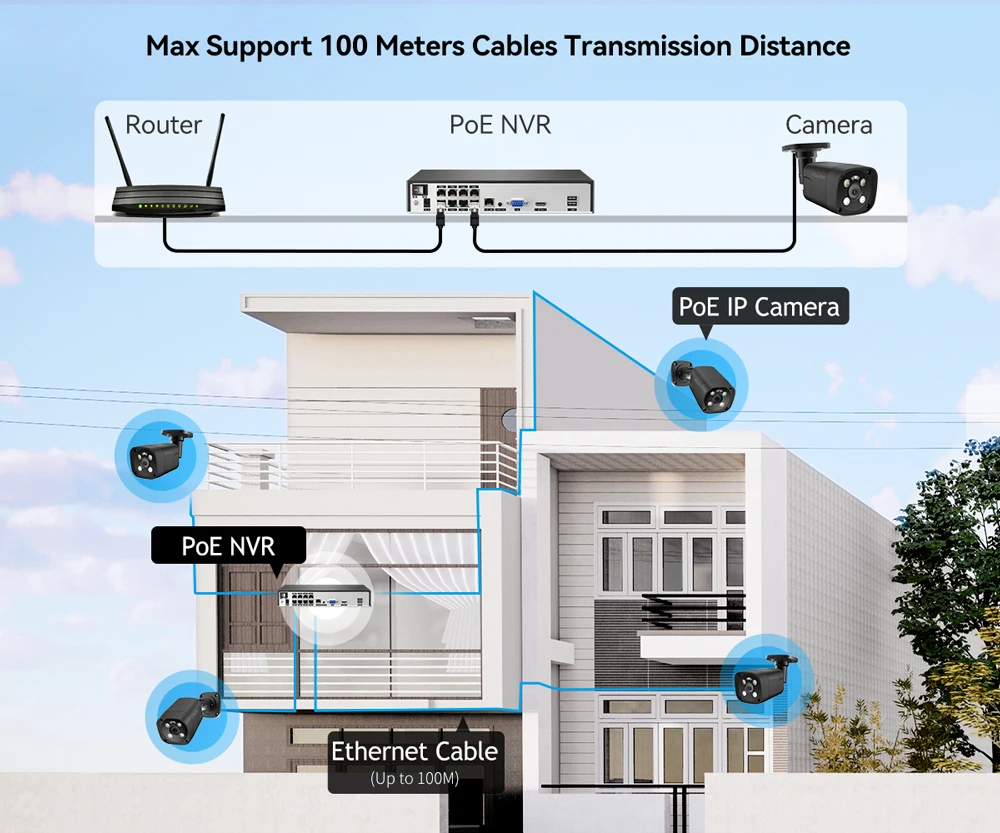

Max Support 100 Meters Cable Transmission Distance
Which Greatly Increases Home Installation Convenience.
Camera |
Tpye |
8CH 2K POE CAMERA KIT |
|
Sensor type |
1/2.7" black-light CMOS sensor |
|
Minimum illumination |
Color: 0.0001Lux @f1.2 |
|
|
Black and white: 0.0001Lux @f1.2 |
|
Shutter |
1/50(1/60) second to 1/10000 second |
|
Lens |
Hd lens 3.6mm @F2.0 |
|
Lens contact type |
M12 |
|
Day-night switch mode |
Support IR-CUT |
Image |
Maximum image size |
3840*2160 |
|
Frame rate |
Main stream 8MP(3840*2160)@15fps
5MP(2880*1616)@25fps;
4MP(2560* 1440)@25fps;
2MP(1920*1080)@25fps: |
|
|
Auxiliary stream: (800*448)@25fps: |
|
Image set |
Saturation brightness and contrast are adjustable by client or browser |
Compression |
Compression standard |
H.265AI/H.265+(Compatible with H.265/H.264 )Video coding |
|
Compressed output bit rate |
0.1Mbps~8Mbps Adjustable |
|
Audio compression standard |
G711a |
Network function |
Storage |
Network storage |
|
Intelligent alarm |
Face detection, human motion tracking detection, video loss, network cable broken,IP address conflict |
|
Support agreement |
TCP/IP HTTP, DHCP DNS, DDNS, PPPoE, SMTP,NTP |
|
General function |
Anti-flicker, double code stream heartbeat, password protected |
Interface |
Operation interface |
16 - bit true color graphical menu operation interface, support mouse operation |
|
Screen display |
1 / 2 / 4 / 6 / 8 / 9 / 16 screen |
Video |
Video access mode |
16 channel 4K (access bandwidth 72 Mbit/s, connected to 100 MBIT/s POE module) |
|
Image decoding |
H.265AI/H.265+(compatible with H.265/H.264) |
|
Monitoring quality |
Max: 4K |
|
Playback quality |
4K/5MP/4MP/3MP/1080P |
|
VR function |
Not support |
|
Human face detection |
Support (rely on XM front end camera) |
Audio |
Audio compression |
G.711A |
|
Language intercom |
Not support |
Video and playback |
Video mode |
Manual > Alarm > Dynamic Detection > Timing |
|
Local playback (real time + non real time) |
4K (1* real-time) /5MP (1+1) /4MP (2+1) /3MP (3+1) /1080P (5+1) |
|
Video query |
Time point retrieval, calendar retrieval, event retrieval, channel retrieval, face query |
|
Video preservation |
Local hard disk, network |
|
Backup mode |
Network backup, USB mobile hard disk, USB recording, SATA recording |

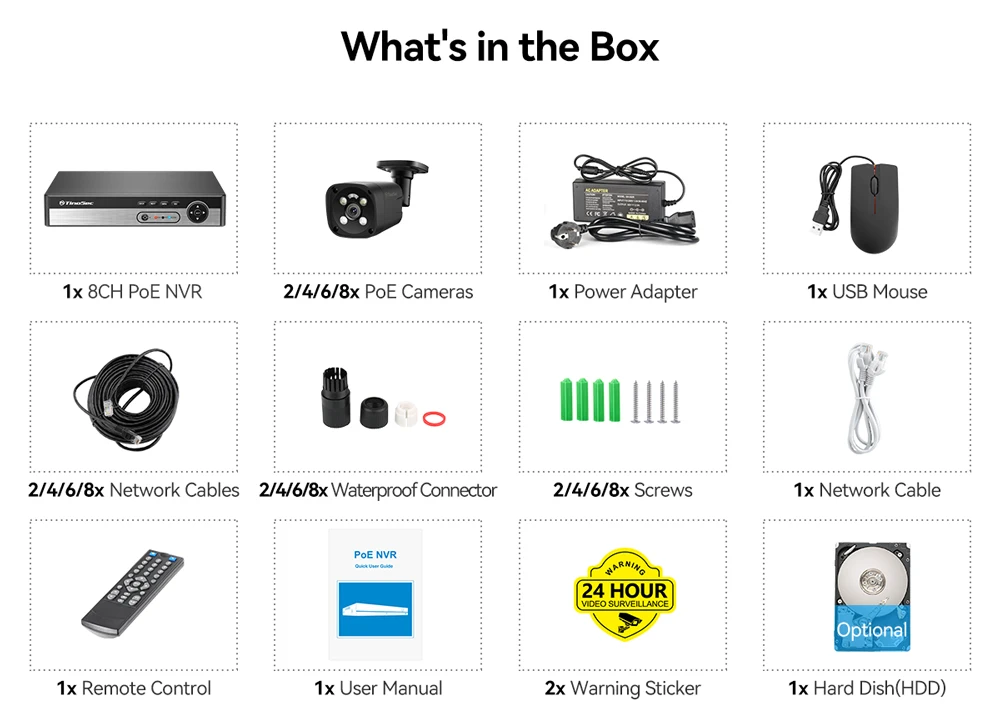

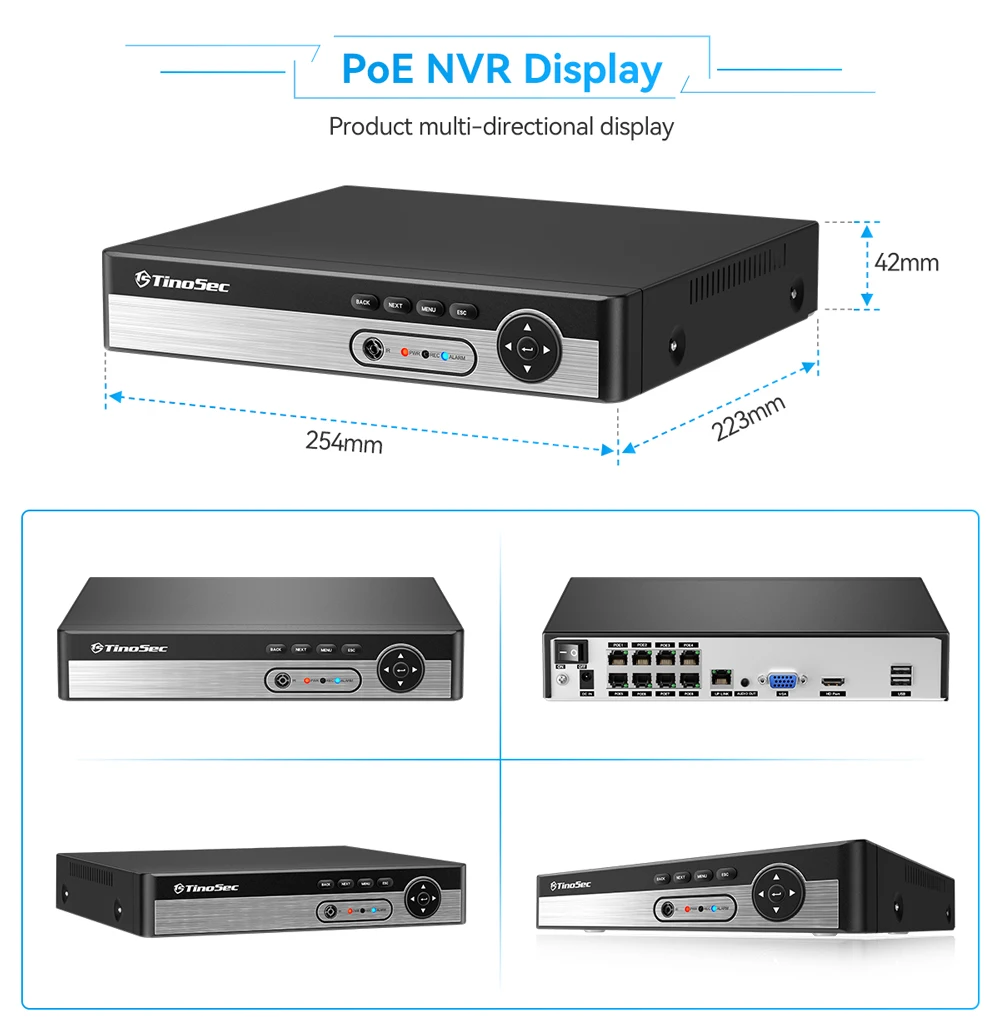

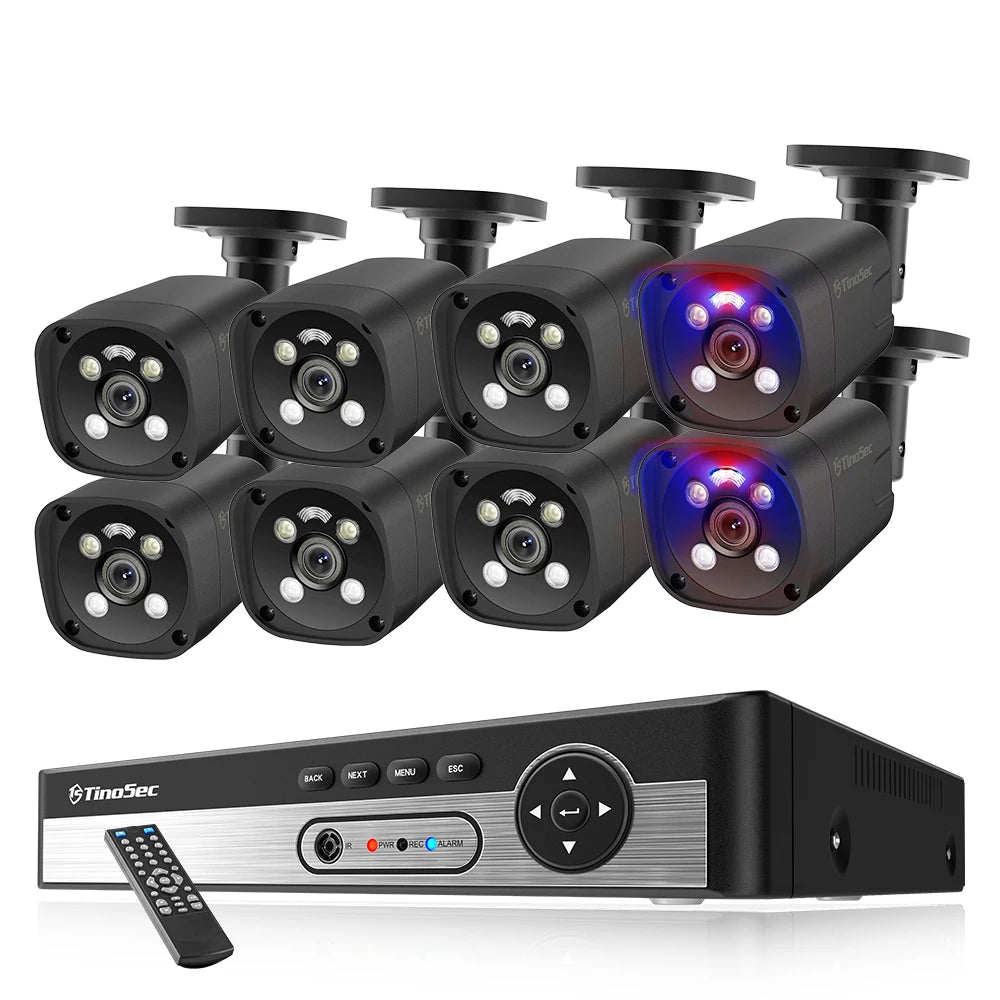

1 x8CH 4K 48V POE NVR
8 x 4MP Waterproof Outdoor POE Cameras
8 x 20M Power Network Cable for Camera
1 x Power Supply for NVR
1 x Mouse for NVR
1 x User manual
2 x Warning Sticker ( gift )
NO HDD or 1TB,2TB,3TB,4TB HDD for Optional
