SPECIFICATIONS

App Name: Tuya Smart Smart Life

Certification: CCC

Control method: Touch

Function: Wifi Smart Control

Interface: RS485, AUX, SPK1, SPK2

Network: Wi-Fi 2.4GHz/ Ethernet

Power Supply: 100-240V AC

Product name: Smart Home Products

Support System: Android \ IOS APP Remote Control

app control: App Control

application: Hotel,Commercial,Home

brand name: AISpeaker

camera: No Camera

display type: IPS

feature: Wi-Fi,MP3 Playback,Touchscreen,Build in Flash,App Control,App Remote Control,SDK available

operation system: Linux

place of origin: Guangdong, China

power source: Usb,Electric

private mold: No

product type: Smart Switch

screen: 3.0-3.9"

screen resolution: 480X320

use: Universal

Product Description

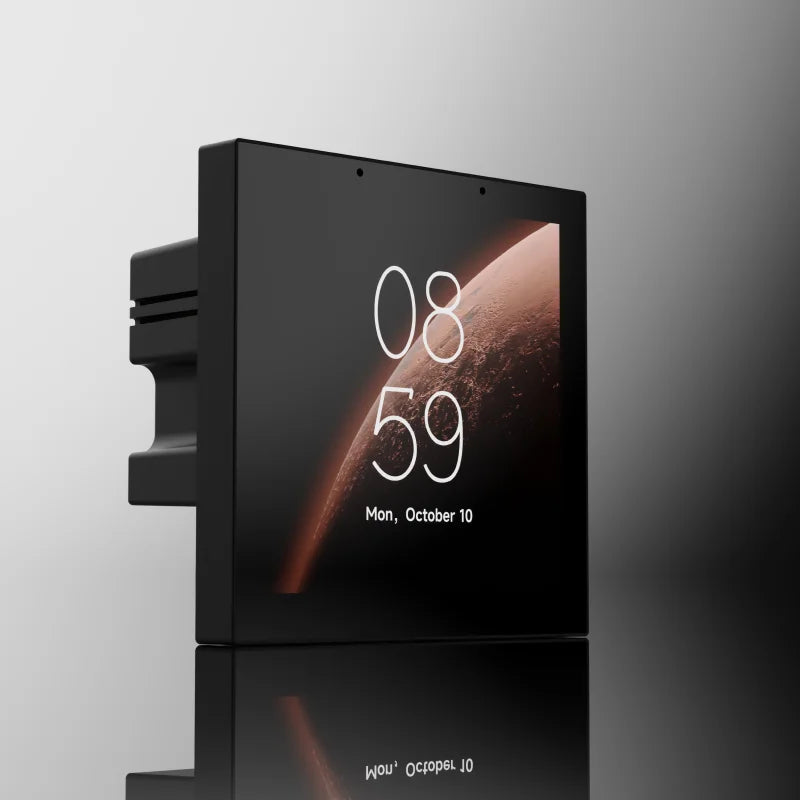

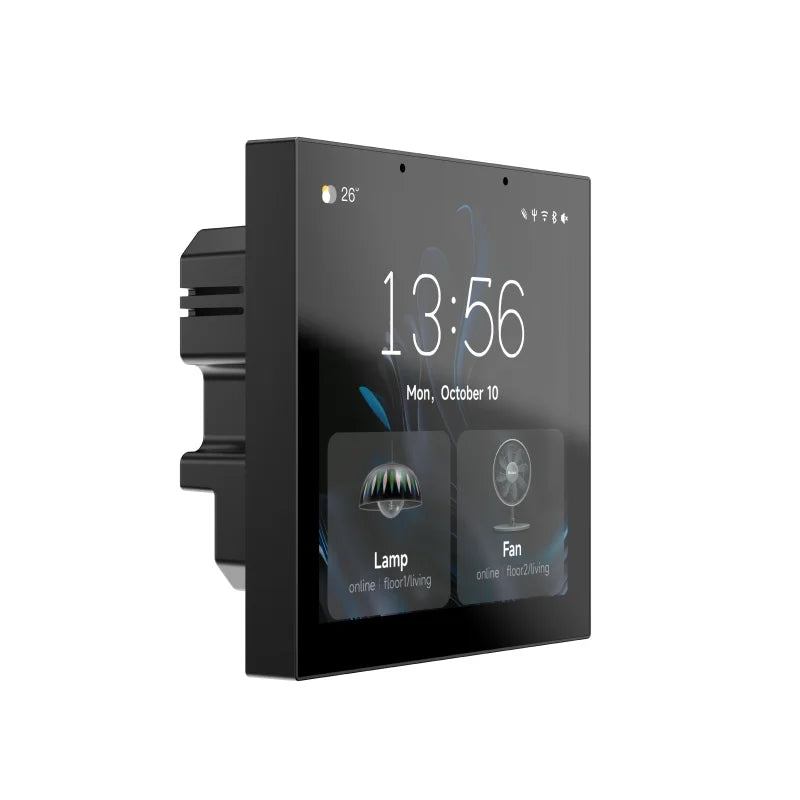

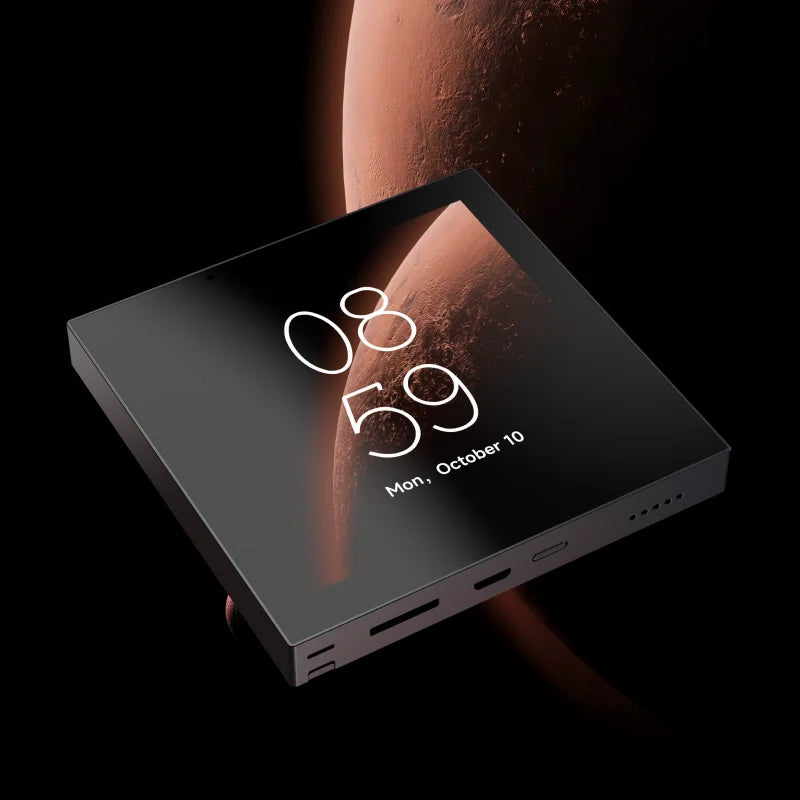

Tuya Smart App Supported Zigbee Wifi Switch Smart Home System For Home Appliance Control

Hardware	Depict
CPU	R528 1.5GHz
Power supply	220V,50Hz/AC
Operating system	Linux
Display screen	IPS 480*480
Touch Screen	G+FF
Bluetooth	Yes
WiFi	Yes;802.11 b/g/n
ZigBee	Yes，ZigBee3.0
RAM	128M/128M
TF card	Yes,Up to 32GB
USB	Yes
Other	RS485,AUX，SPK1，SPK2
Power Amplifier Output	15W*4
Impedance	8Ω
FRF	20-20kHz
THD	Vcc=12V,f=1kHz,Po=15W,0.03%
Size（Appearance ）	86mm*86mm*10mm
Size （Install）	86mm*86mm*70mm
Size （Packing box）	118.5x105.5x91mm
Colour	Grey
Net Weight（Individual machine）	166g
Gross Weight（With packaging）	275g

Effortless Audio Experience& Doubled Auditory Feast

Linux system control panel, with power amplifier, can push music through Bluetooth to play, become an intelligent multimedia control panel. Connect four ceiling speakers to give you a real sound environment.

Multi-modal Gateway, One Device With Multiple Uses

Tuya ZigBee gateway + intelligent switch panel + background music host function, one device has a variety of uses, support mobile APP remote control and touch operation.

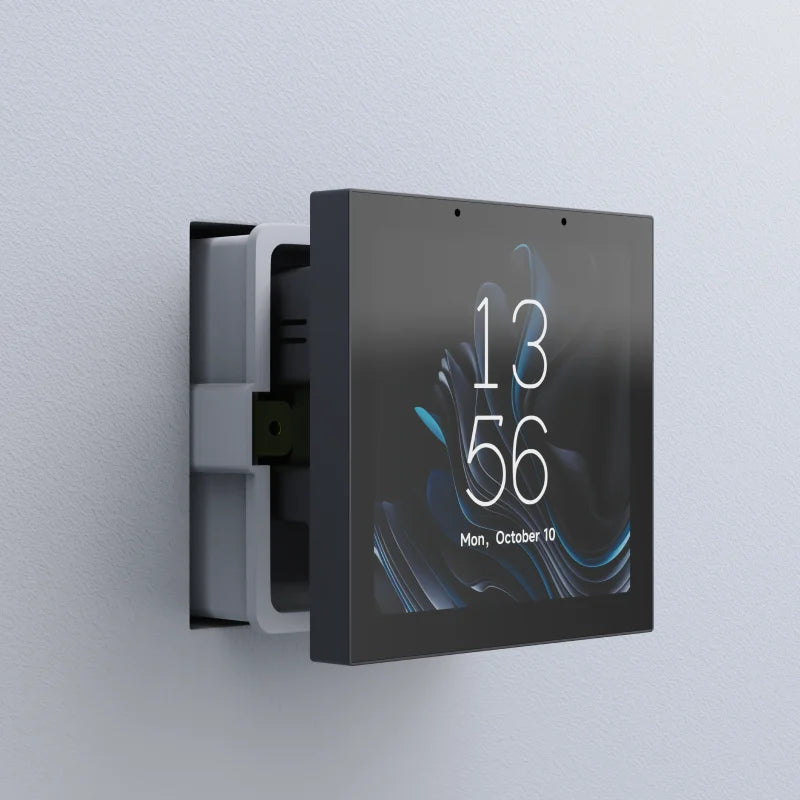

Beautiful & Versatile

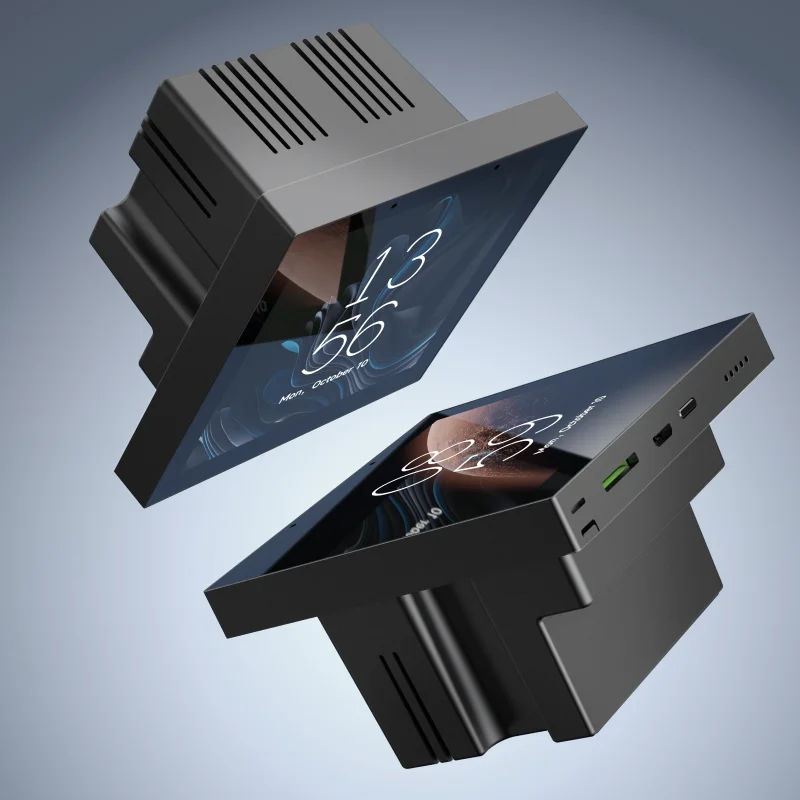

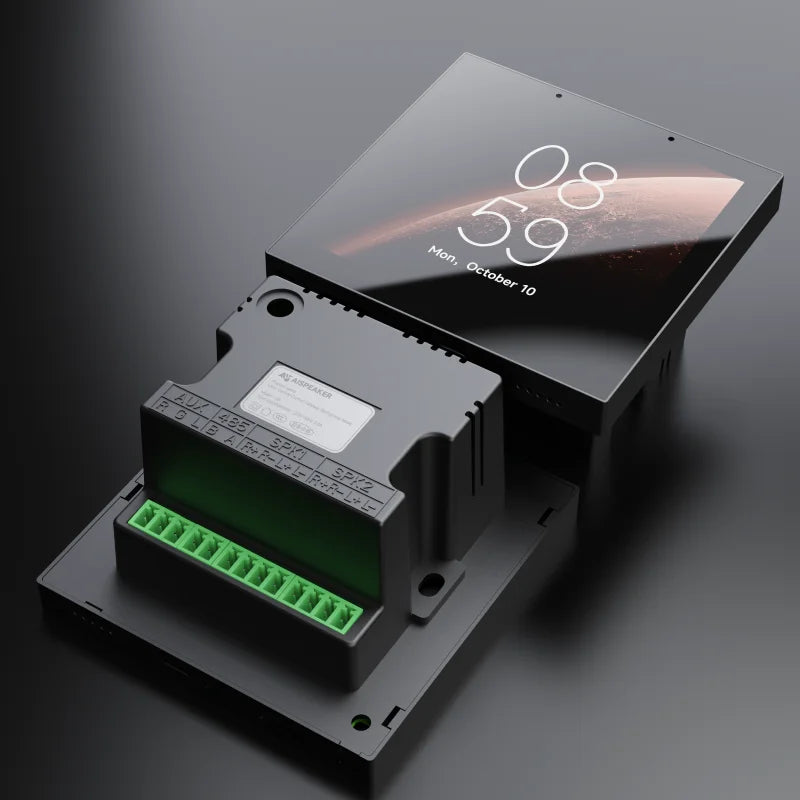

The appearance size is 86*86, which can be freely combined with the switch panel. The front and rear partitions are designed, and the mainboard components are not exposed during installation and disassembly, which is safer and more beautiful.

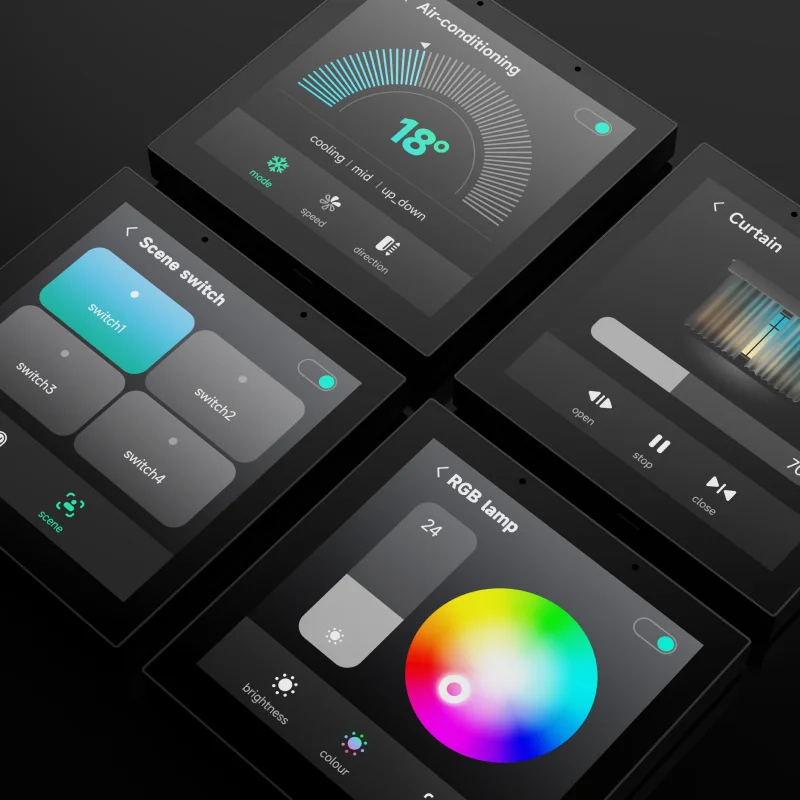

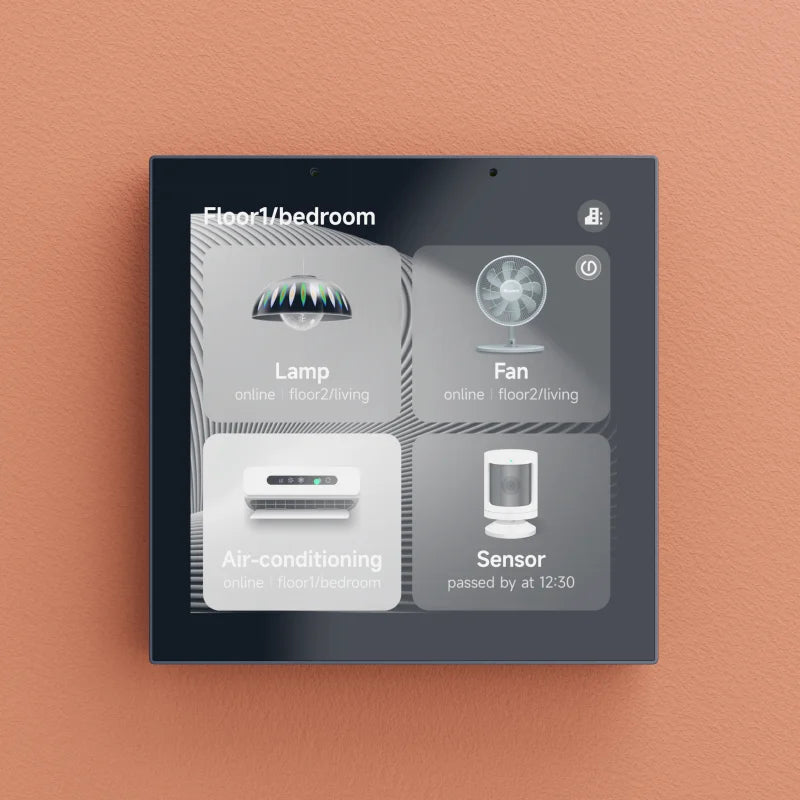

Smart Home Control Screen

Support Bluetooth, WIFI and Tuya ZigBee protocol, just log in to the Tuya account, you can quickly and efficiently complete the device import, become a smart home control screen.

Product Specifications:
Color:	Deep gray
Dimensions:	86mm86mm10mm
Installation dimensions:	86mm86mm70mm
Display:	4-inch IPS, resolution of 480*480
CPU:	R528 dual-core 1.5GHz
Network:	Wireless 802.11b/g/n
Interfaces:	RS485, AUX, SPK1, SPK2
Installation method:	Embedded

Company Profile

FAQ

Q: What can I buy from you?
A: 10 "Smart home control panel: knob + button + touch screen, with two-way relay；product (S10)
7 "Touch Smart Home Control Panel；Product (P7)
6 "Smart home control panel: button + touch screen, with two circuit breaker ；products (M10)
4 "touch screen center panel: Touch screen with two circuit breaker ；products (L9)
4 inch touch screen central control background music host: Bluetooth push music, with power amplifier function product
(H9)Intelligent central control supports Tuya zigbee, which can control intelligent switches, sockets, lamps, air
conditioners,curtains, drying racks, security, sensing and other equipment in the room.

Q: Why should I buy from you instead of another supplier?
A: 1.Best location: Shenzhen, China; 2. Strong production capacity; 3. Fast delivery; 4.ODM and OEM services; 5. Rich product
range; 6. Complete certificate;

Q: Do you accept OEM and ODM?
A: Yes, we accept that. Please contact us for details.

Q: How do you guarantee quality?

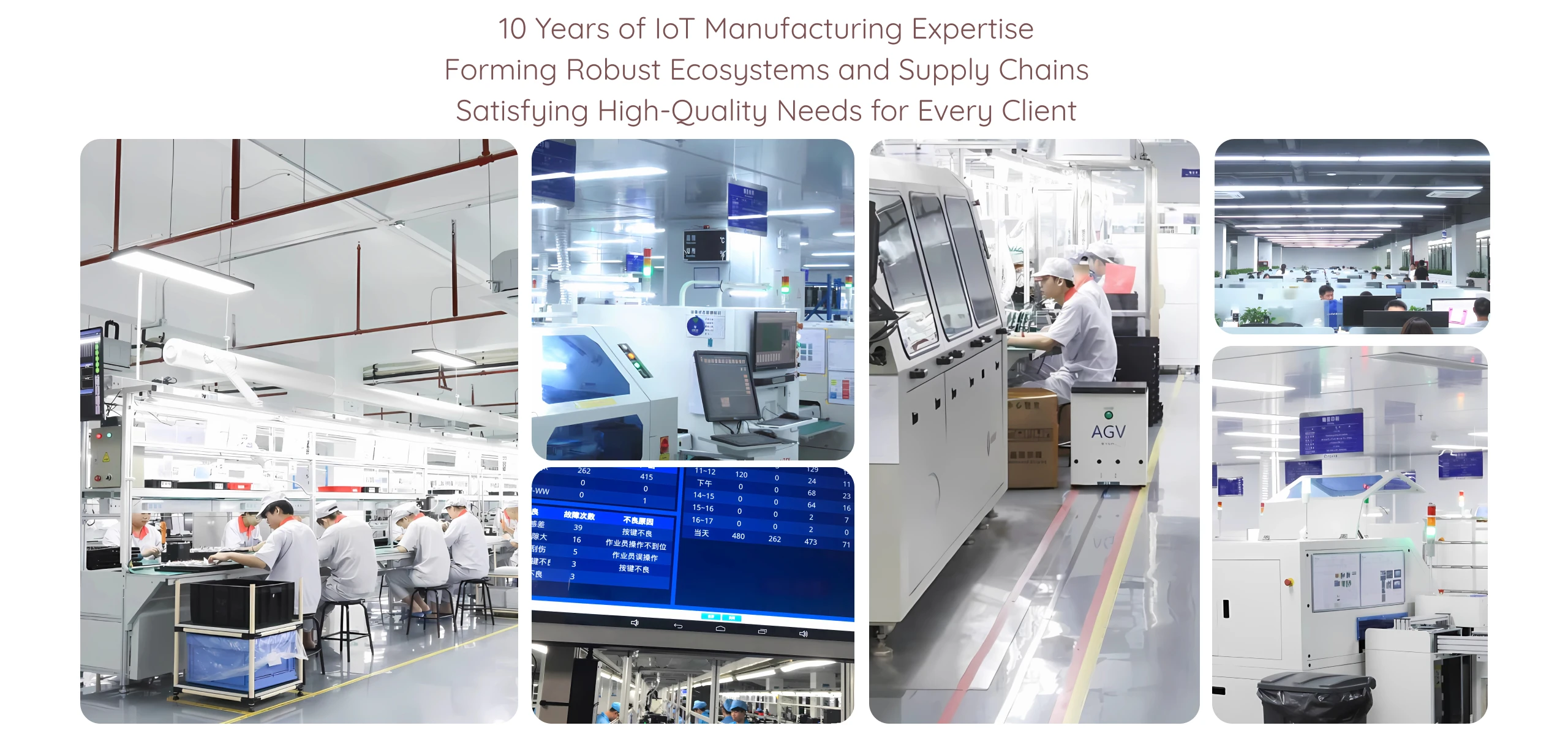

A: Our factory is located in Shenzhen. It has a modern plant area of 10,000 square meters, with a monthly output of over 300,000
units. With perfect production system and strict quality management system, we have established cooperative relations with many
intelligent quality companies, and we have deep cooperation with the world's top 500 enterprises.

Q: I don't know much about the product, how to install it?
A: We have manuals for our products, and we can send you videos if you want.

Q: How long is the lead time?
A: Sample orders are usually placed within 3 working days if stock is available. Bulk orders are subject to quantity.
