SPECIFICATIONS

AP Hotpot: Support

Alarm: Motion/Human Detection Alarm

Aperture: f1.5-3.6

Audio: Two Way Audio

Brand Name: Ikevision

Customized support: Online Technical Support,Customized Logo,Software Reengineering,OEM, ODM

Data Storage Options: Cloud,Micro SD card,Memory Card

Function: Two-Way Audio,Pan-Tilt,Reset,Built-In Mic,Night Vision,Waterproof / Weatherproof,Wide Angle,Built-In Siren

IP Rating: IP66

IR Distance: 20m

Lens: 4+4mm

Lens Type: 4mm+4mm

Material: ABS,Aluminum Alloy

Model Number: IK-VCS09

Network: Support 2.4G WIFI/4G Optional

Pixels: 4 MP

Place of Origin: Guangdong, China

Power: DC 5V/8W Solar Panel/8000mAh Battery

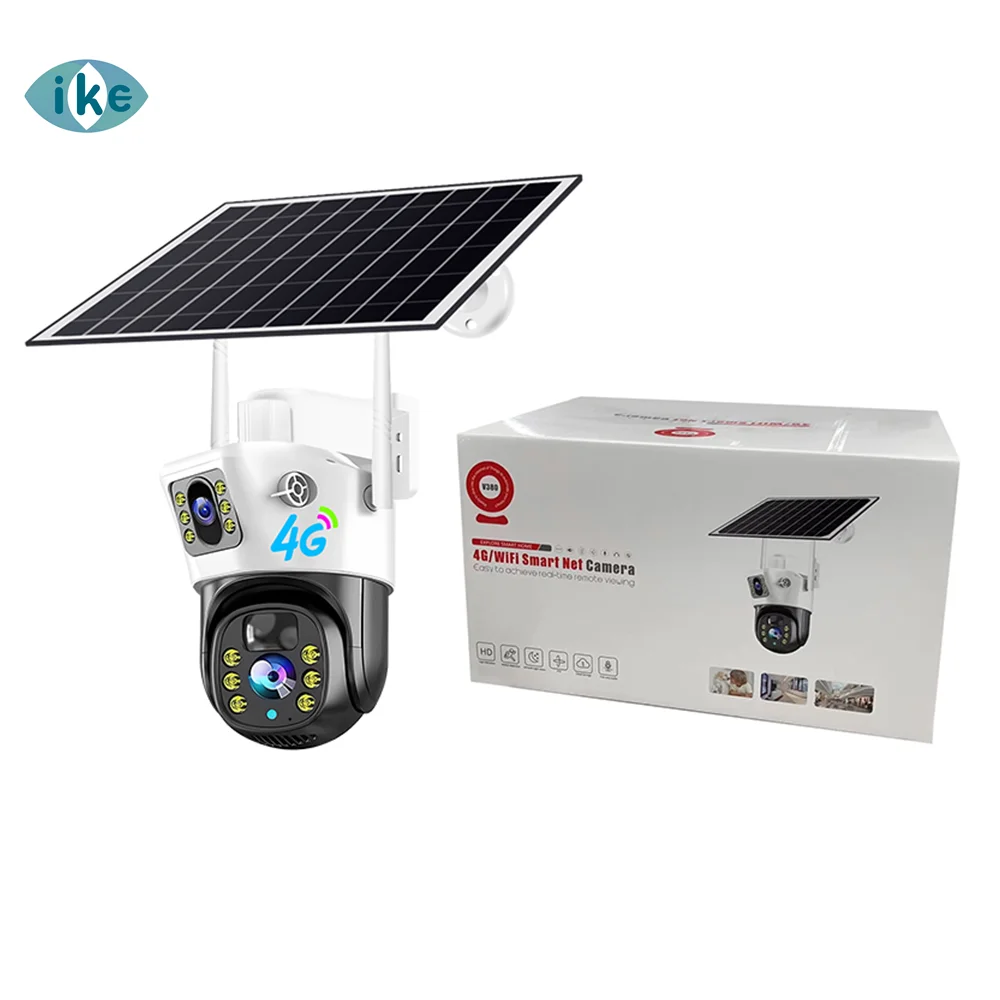

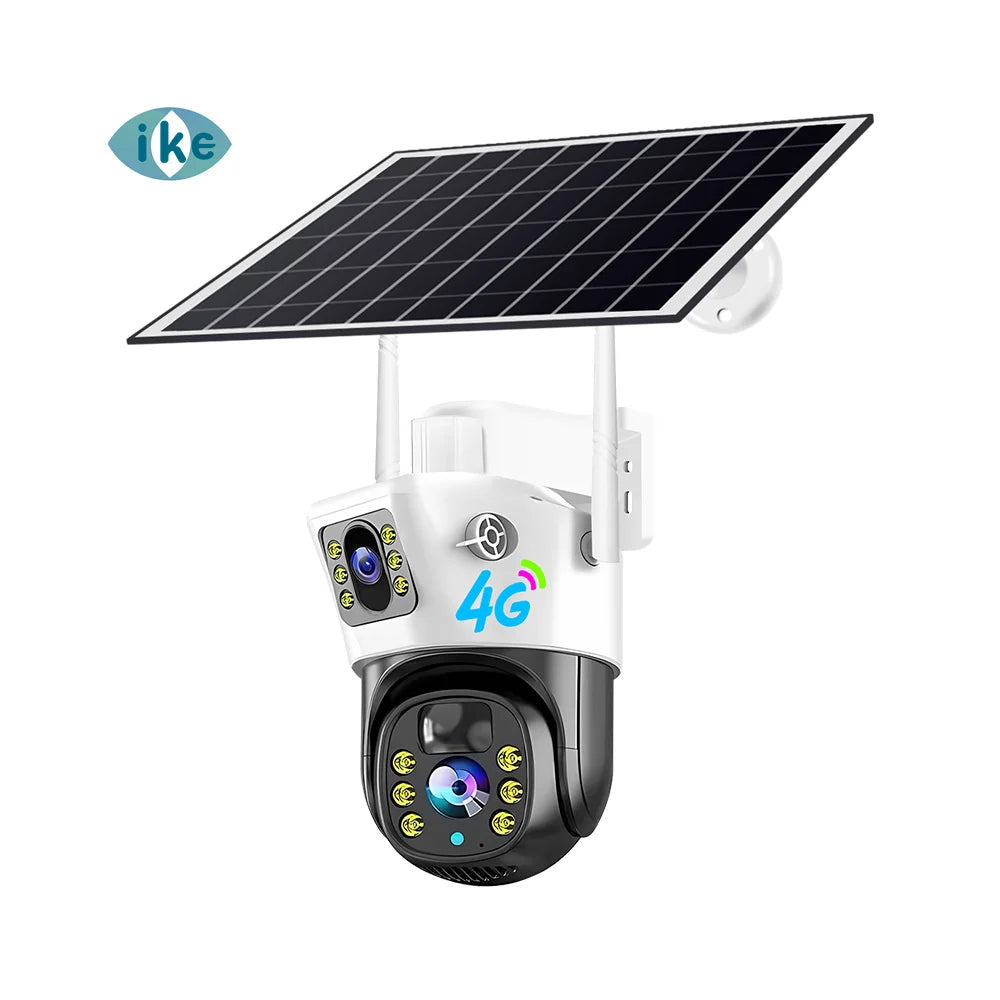

Product name: Solar 4MP Wifi/4G Dual Lens PTZ Camera

Resolution: 2MP+2MP

Sensor: CMOS

Special Features: Human Motion Tracking,Night Vision,Motion Detection,Waterproof / Weatherproof,Pan-Tilt,Two-Way Audio

Storage: Support Max 128G TF Card, and Cloud

Style: Dome Camera

Video Compression Format: H.265

Viewing Angle: 360

Warranty: 1 Year

Product Paramenters

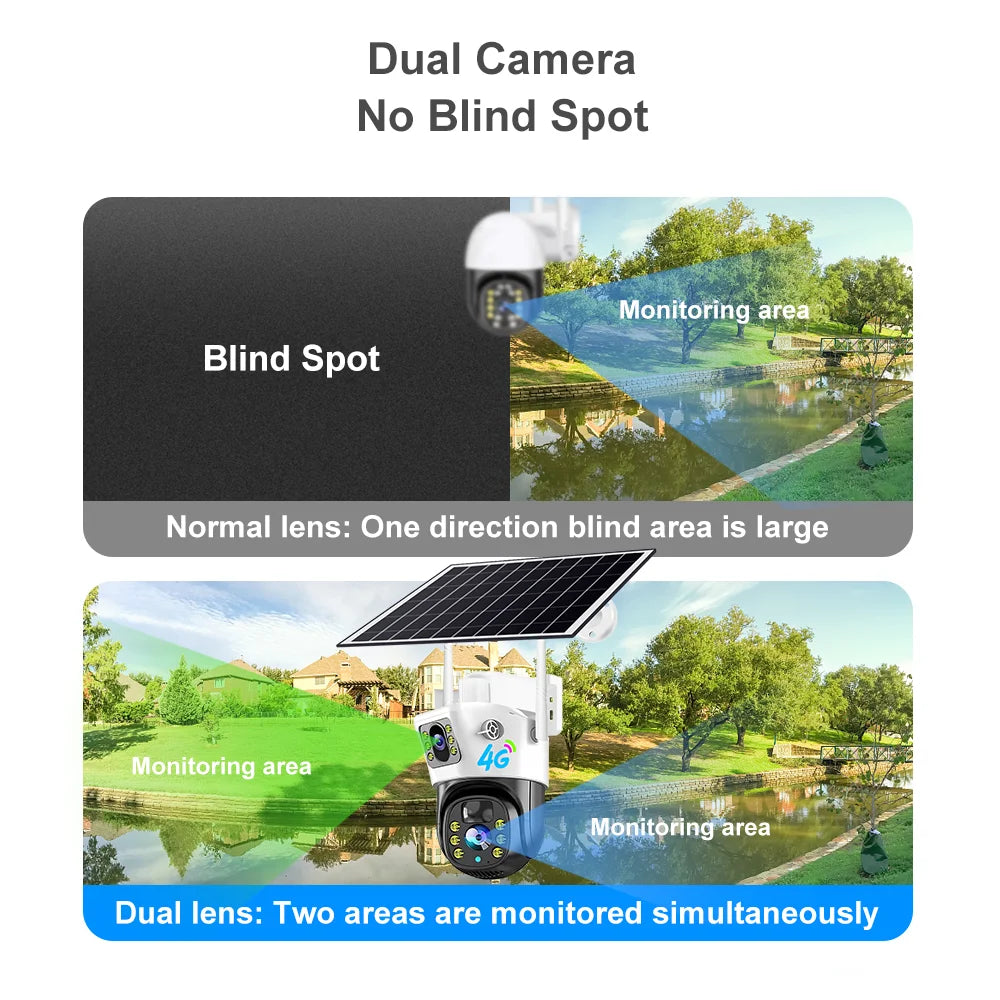

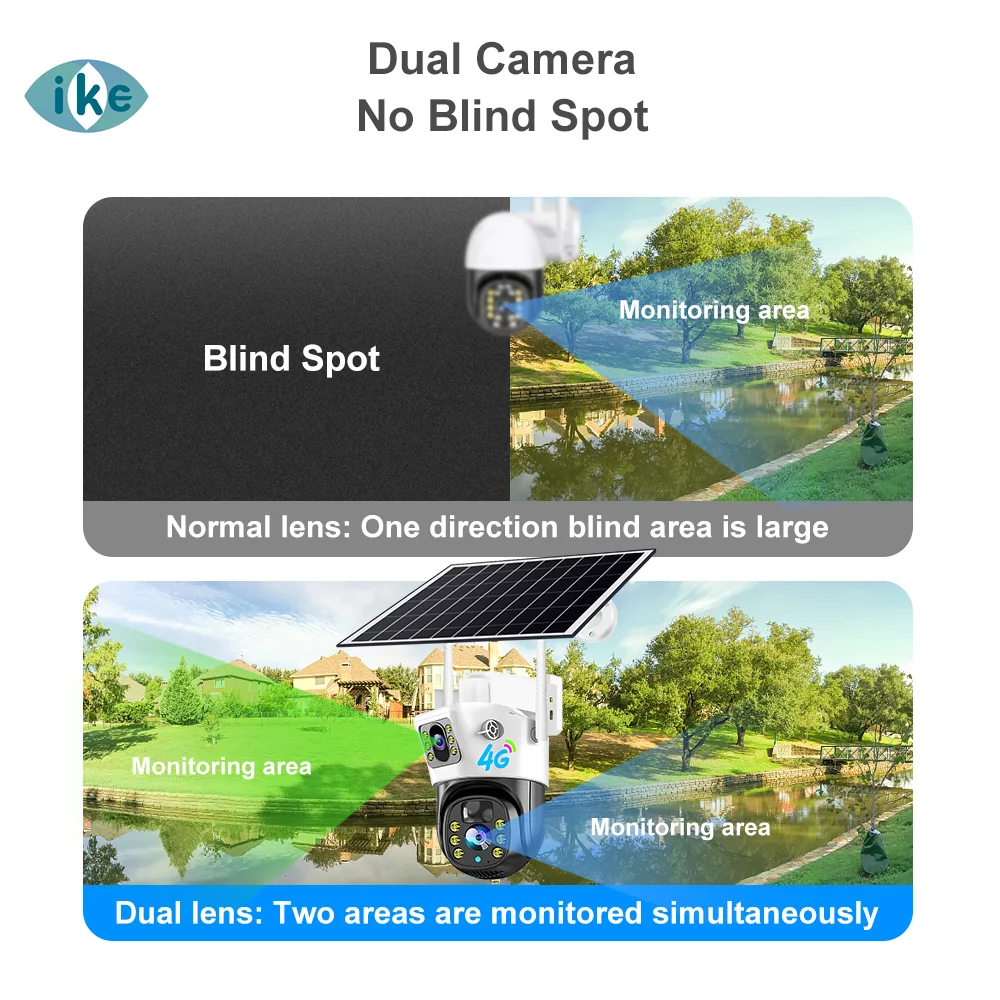

1.H.265 2. 4MM+4MM lens, 80°view angle*2 3.6pcs dual source LED, Night vision 20m 4.Support wifi/4G Optional 5.Support two way audio,motion detection, photo alarm push 6.Support Max 128G TF Card 7.5V2A Power 8.4G Bands:B1/B3/B5/B8/B38/B39/B40/B41

Products Description

DSP	ANKA 780E
Operating system	Android, IOS
APP:	V380 PRO
Sensor:	GC2063 Gcoreinc image sensor
Video compressed format:	H.264+/H.265

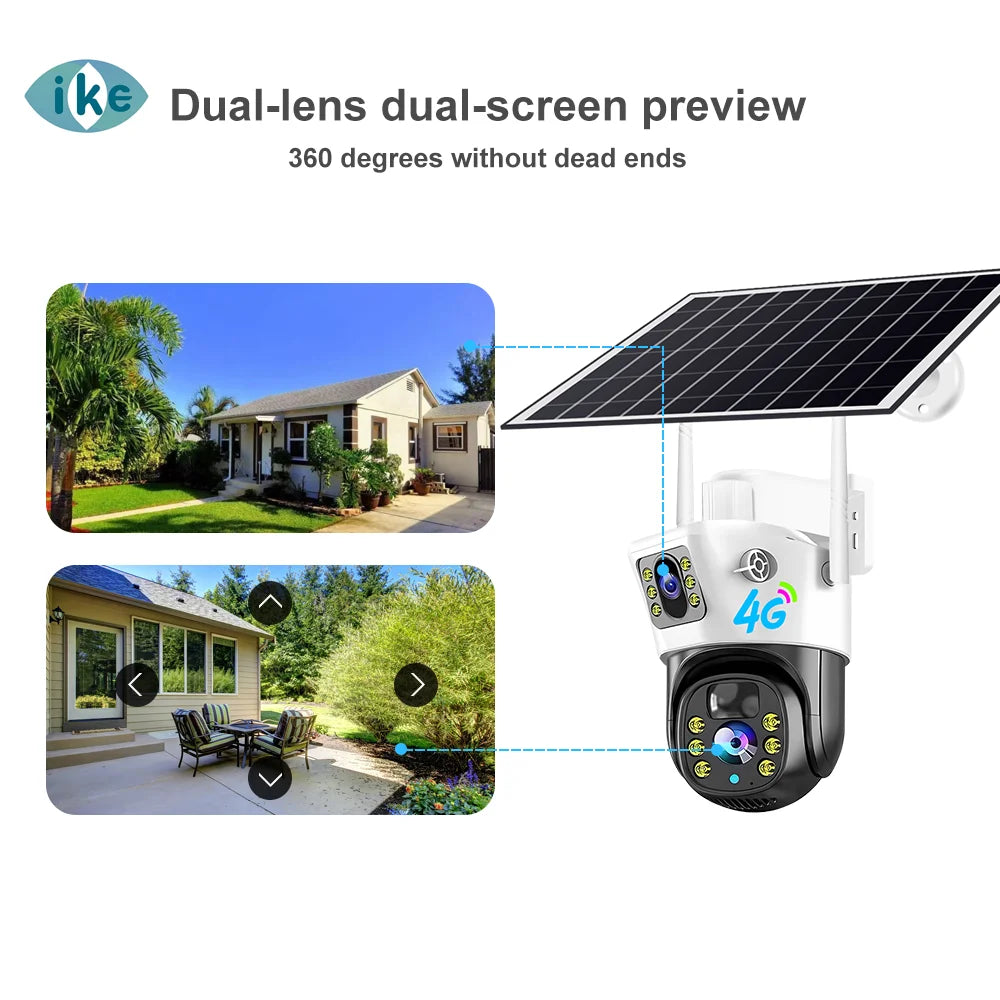

Resolution:	(1920*1080 2MP)*2
Network Method :	LTE4G-SIM card
4G Network :	LTE-FDD:B1/3/5/8 LTE-TDD:B38/39/40/41

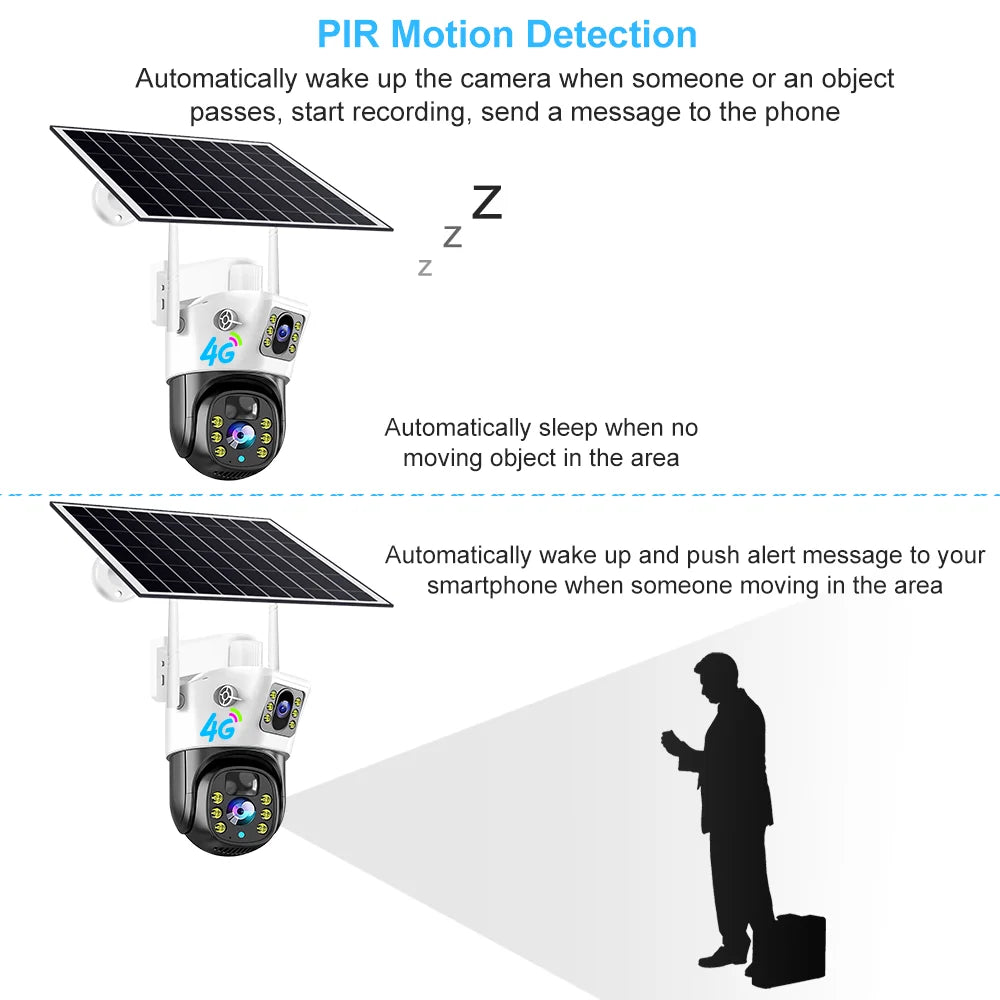

Detection method:	PIR + Radar dual induction detection
Detection distance:	0~12M
Detection angle:	2*120°
Alarm method:	Double induction confirmation and push alarm information mobile phone

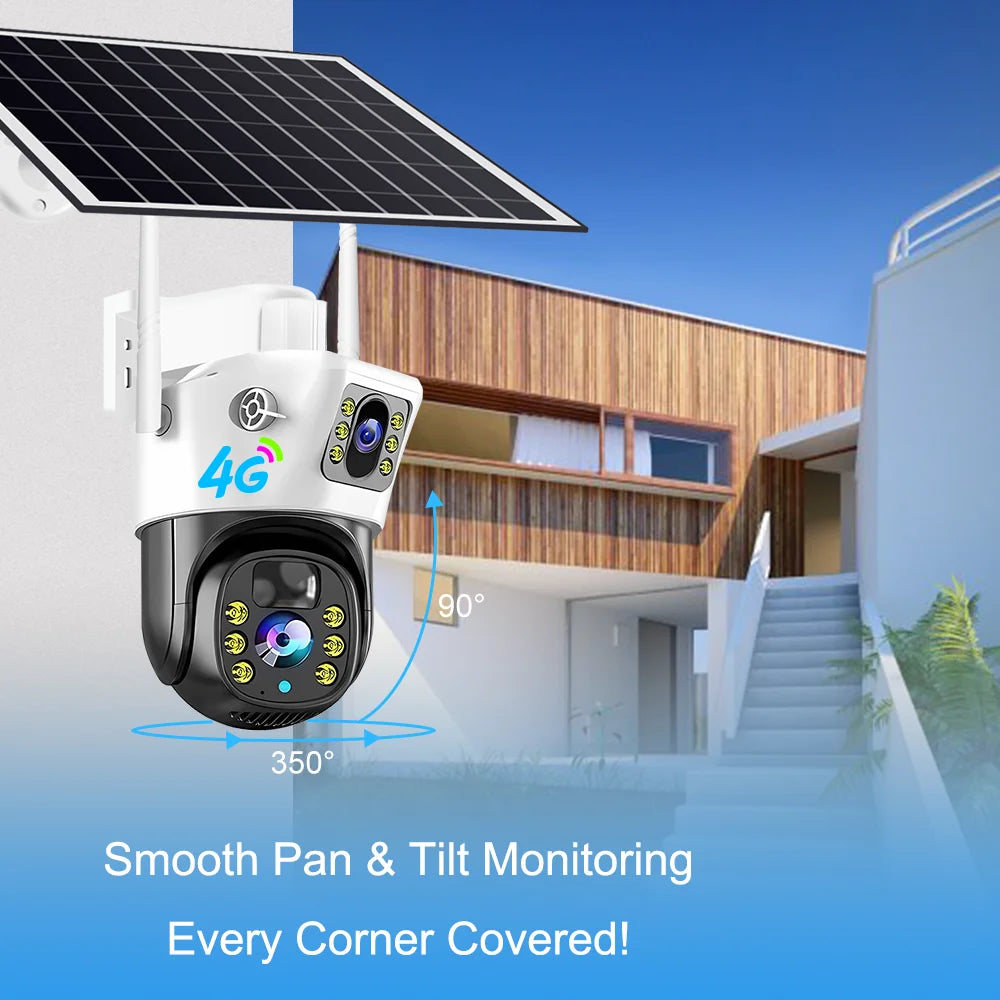

Pan-tilt:	Horizontal: 355 °, vertical: 90°
Rotate speed	Horizontal 55°/seconds, vertical 40°/seconds
Full color night vision:	minimum illumination 0.00001LUX
Infrared Led:	Infrared LED distance: 30M ,effective distance :10M
White Led:	White LED distance: 30M, effective distance :10M
Built-in speaker:	3W
Built-in microphone:	Audio pick-up eara about 20M
Lens:	fixed-focus 4mm
Angle:	80°
Cloud storage:	Cloud Storage (Alarm video )
Local storage:	TF card（Max 128G）

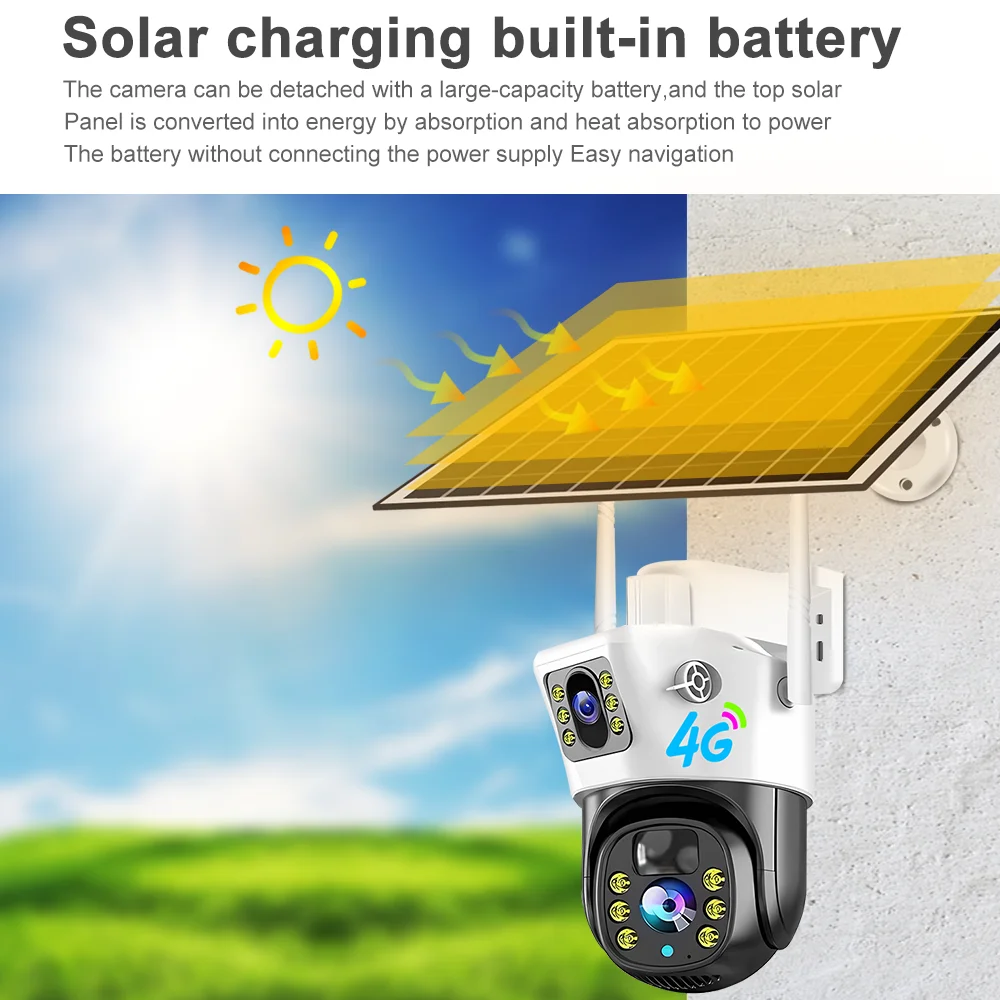

power supply mode :	solar panel + 3.7V built-in 18650 battery
Solar panel power:	8W
Battery capacity	8000mah (standard package with fixed battery)
Operating power	daytime: 350-400mah,Night time:500-550mah
Standby power	5 mAh
work environment:	IP66 Waterproof,can use indoor and outdoor
Working temperature:	-30°~+50°
Working humidity:	0%~80%RH
