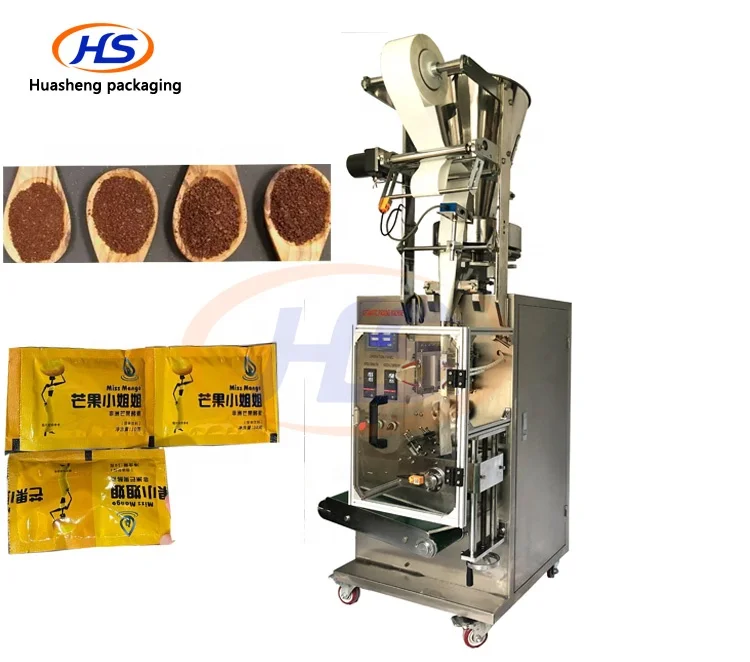

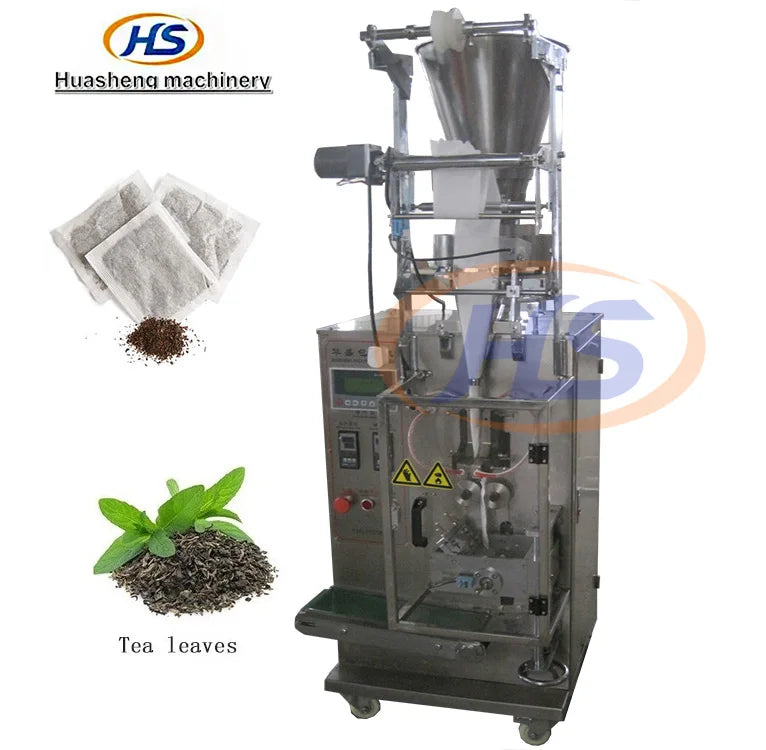

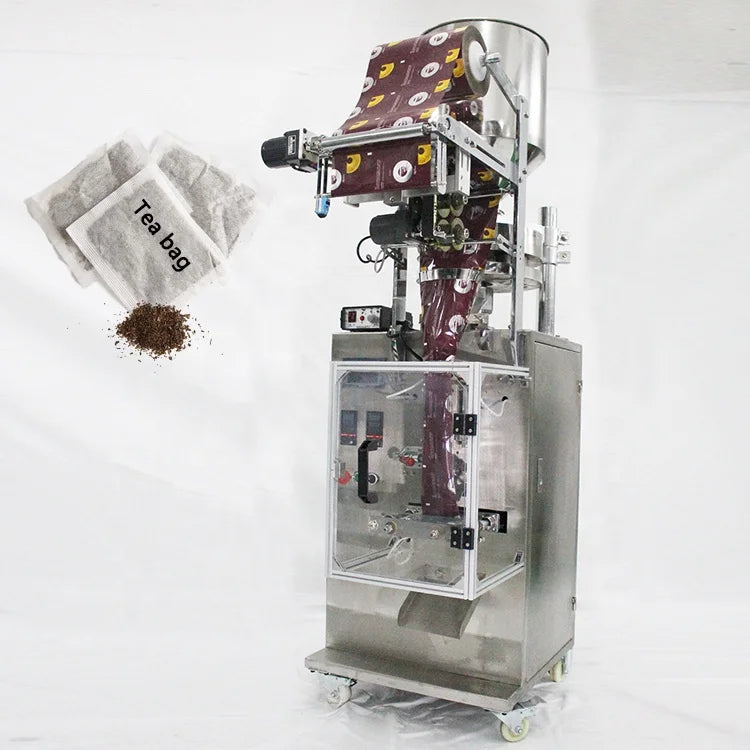

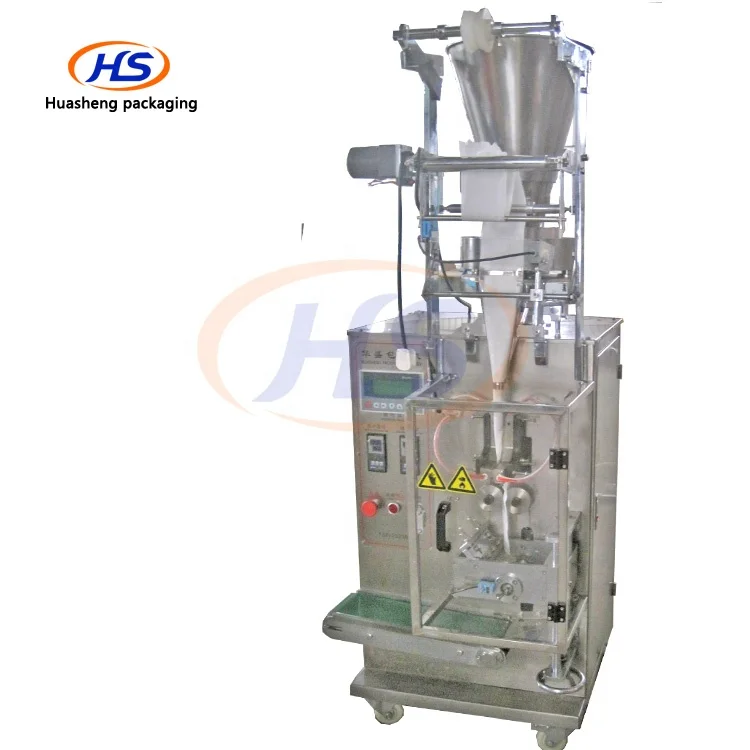

2024 Automatic Coffee Packing Machine Non-woven Coffee Filter Bag Machine
$4,200.00
Reliable shipping
Flexible returns
SPECIFICATIONS
After Warranty Service: One year warranty and whole machine lifetime service
After-sales Service Provided: Video Technical Support,Field installation, commissioning and training,Online support,Field Maintenance and Repair Service,Free Spare Parts
Application: Dry refine grains and some powder
Bag material: Non-woven fabric, or filter paper, and other composite film
Machine model: HS240K
Machine type: Cups fill auto packing machine
Main function: Automatic measuring, form fill seal, cut, count capacity
Packet shape: 3 seal bag

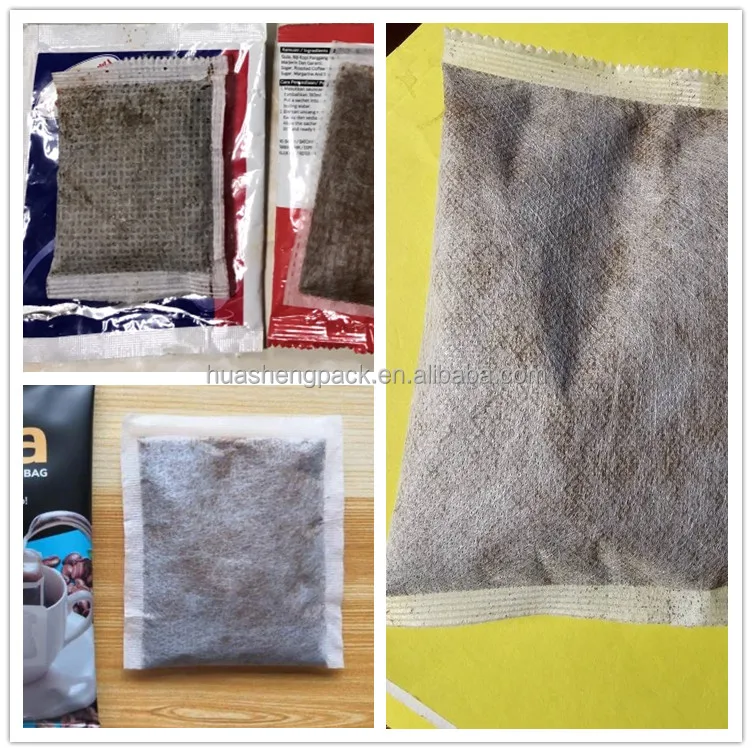

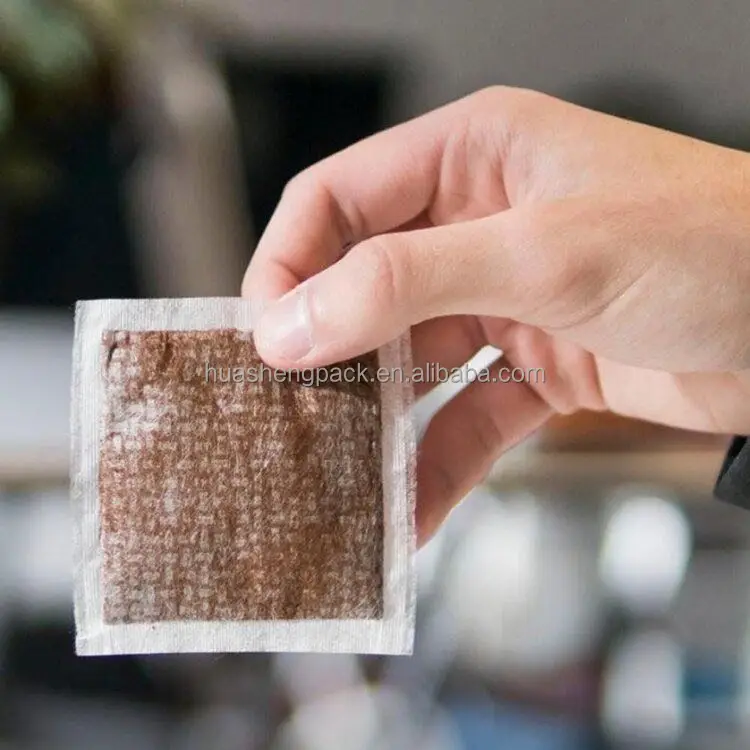

Popular application: Ground coffee filter bag, aluminum coffee sachet, sugar sachet
Seal method: By heating
Video outgoing-inspection: Provided
Voltage: 220V 1phase 50/60Hz
Volume range: 0.2-50g
Weight (KG): 200
application: Food,Commodity,Chemical
automatic grade: Automatic
brand name: ATOZ
core components: Motor,PLC
dimension(l*w*h): 760x670x1720mm
driven type: Electric
function: FILLING,Sealing,Cups measuring
key selling points: Multifunctional,Flexible Manufacturing
machinery test report: Not Available
packaging material: Paper
packaging type: Bags,Film,Foil
place of origin: Guangdong, China
warranty: 1 Year
We will never have a second chance to make a first impression on customers!
A packaging can be the first impression your product makes on your consumers.
Let’s together work on a better packaging!
A packaging can be the first impression your product makes on your consumers.
Let’s together work on a better packaging!

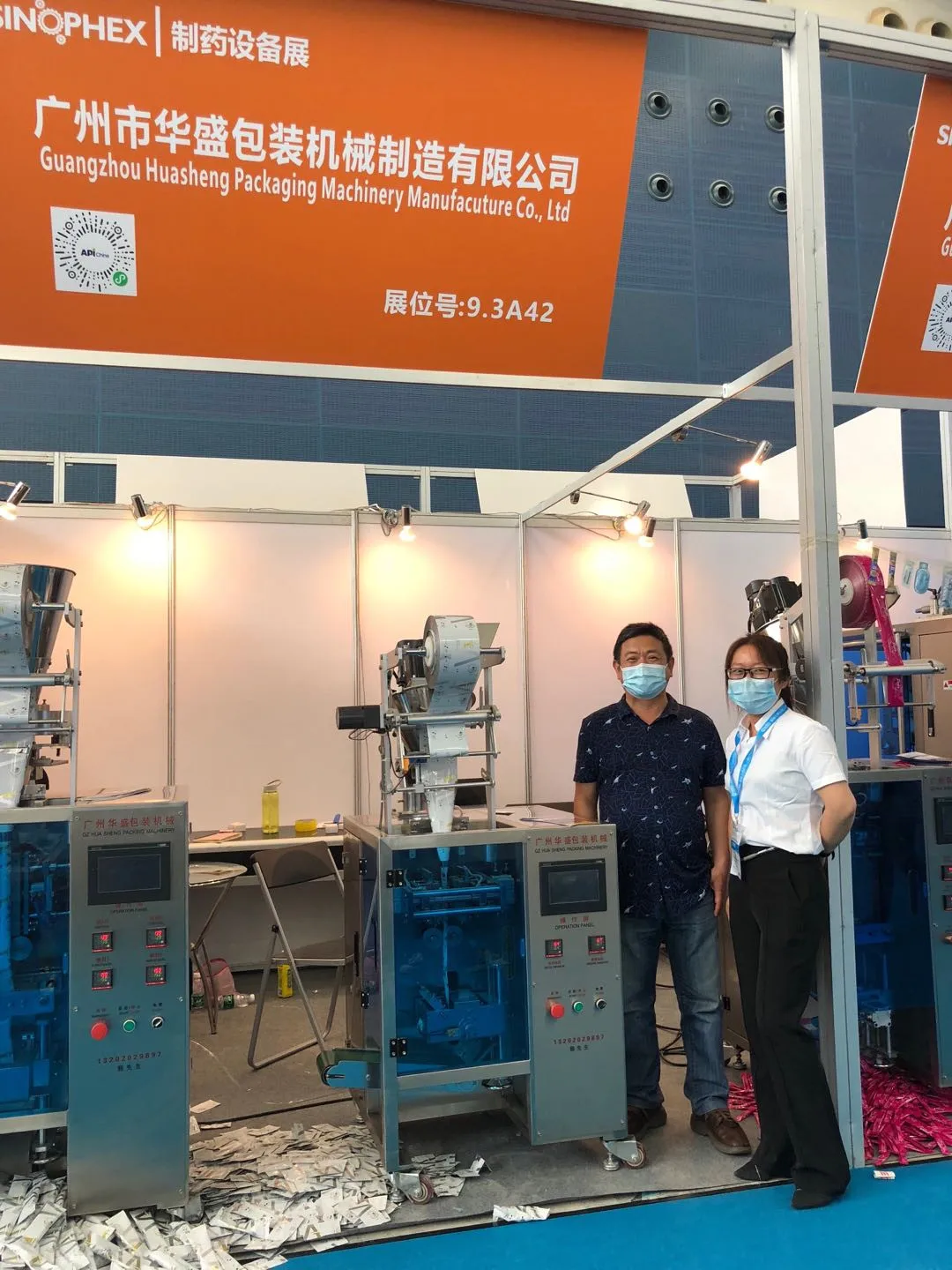

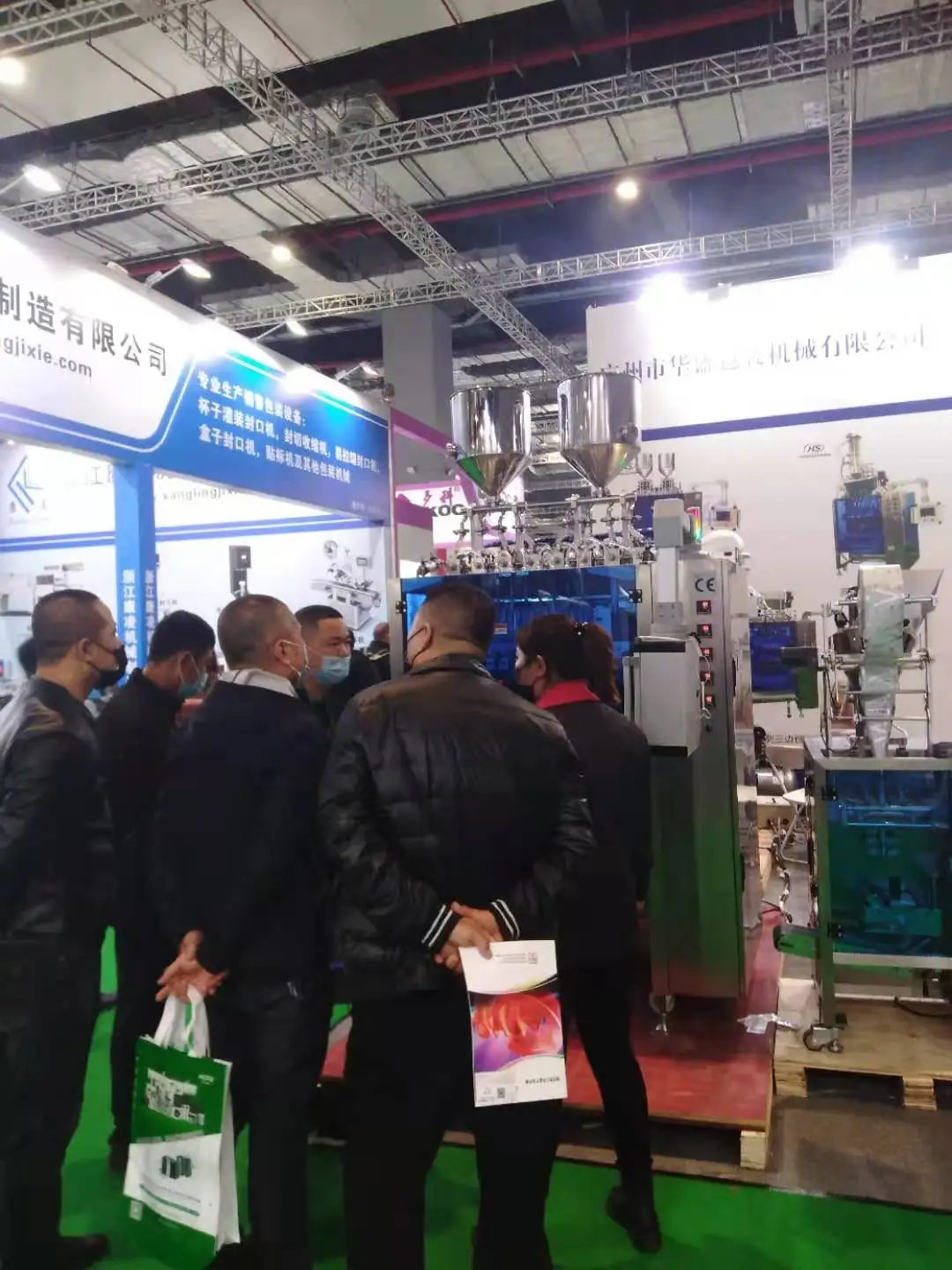

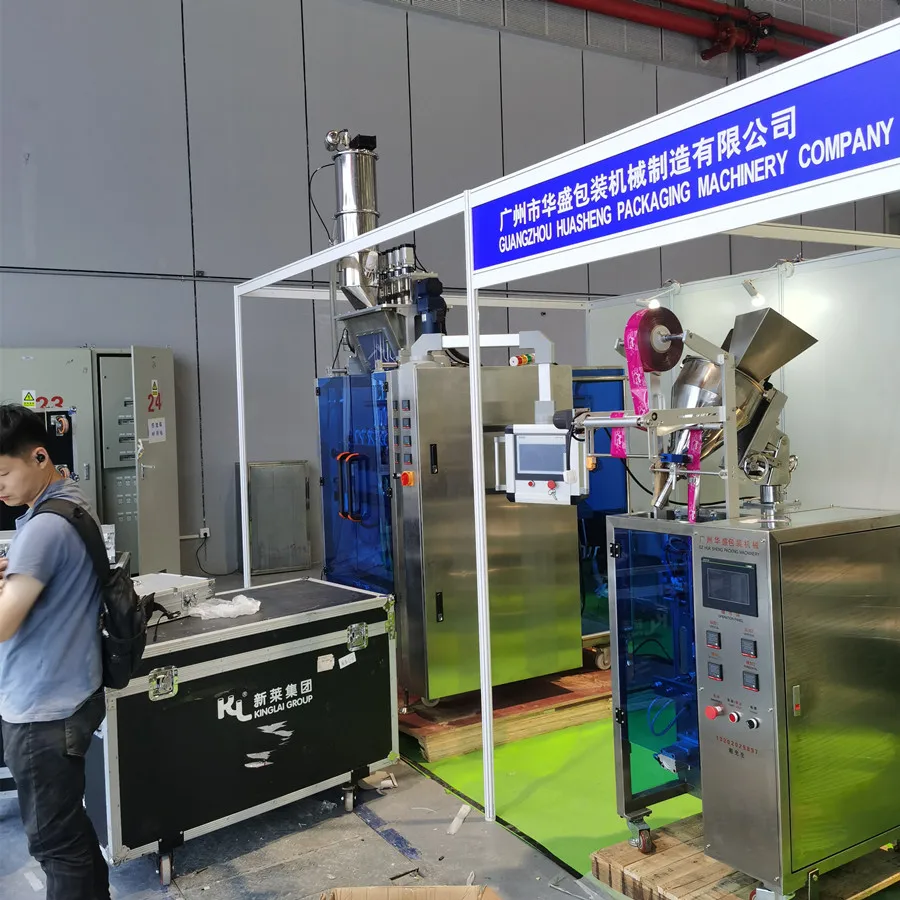

The exhibition




Product Description
1. Standard machine, fast delivery.
2. Quick change of various sizes & different seal type.
3. Compact size designing.
4. Robust long life construction.
5. Easy to maintain- low maintenance.
6. Factory supply, whole machine lifetime support guarantee.
2. Quick change of various sizes & different seal type.
3. Compact size designing.
4. Robust long life construction.
5. Easy to maintain- low maintenance.
6. Factory supply, whole machine lifetime support guarantee.



Application |
Food, Commodity, Medical, Chemical industry. Free flow pellets such as sugar, ground coffee, herbal tea, spice and other similar |
Packet shape |
3 seam seal sachet or 4 side seal sachet |
Cut method |
1) Individual bag OR 2) bag chain OR
3) certain bag in a chain (*Down cutter model)
|
Film roll material |
Heat-seal type filter paper, non-woven fabric, or other plastic or aluminum roll |
Machine model |
HS240K |
Voltage |
220V /380V 50/60Hz |
Dimension(L*W*H) |
720x670x1700mm 180kg |
Key Selling Points |
Long service time Stable running
|
Speed |
25-55bags/min |
Function |
Automatic dose and fill, form seal sachet from film roll, sensor track, count capacity, set capacity to auto stop machine. |
Volume range |
0.2-100g |
Film width max |
240mm |
Bag length max |
155mm (*Different length can set through machine panel) |
Different bag width |
Replace bag former |
Different weight |
Adjust or replace the measuring cups |

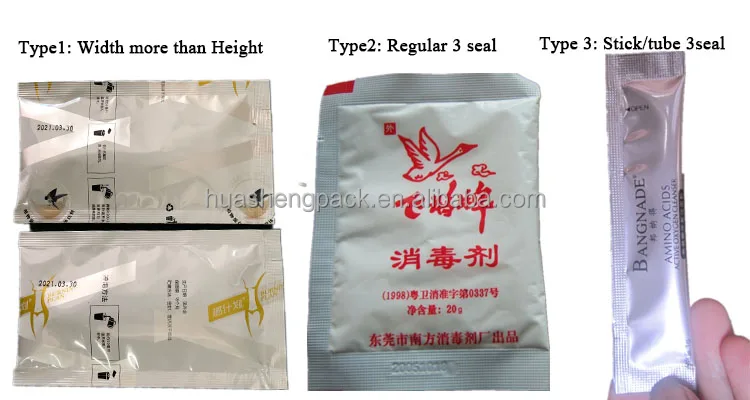

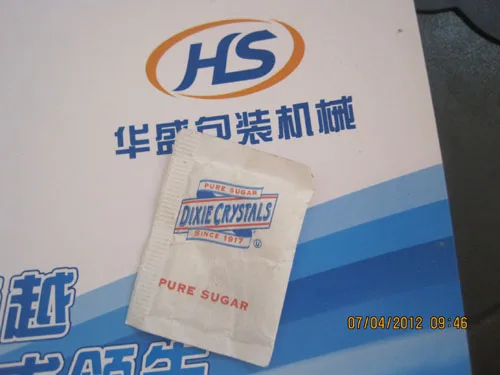

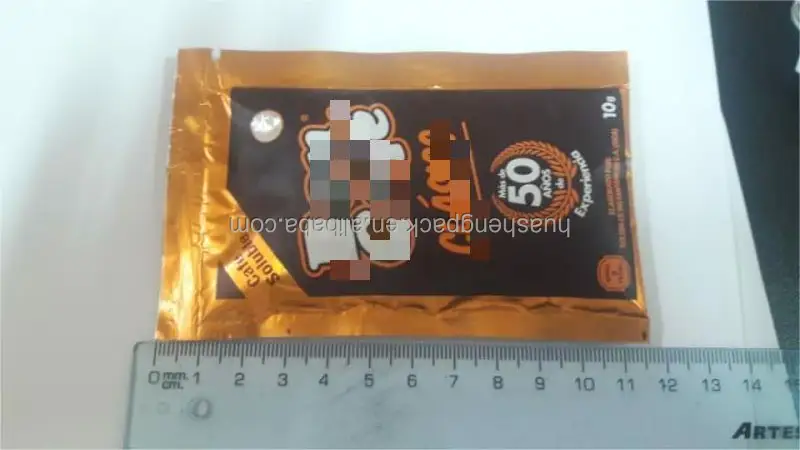

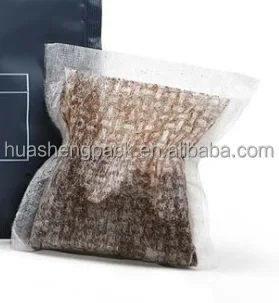

Bag Type





Details

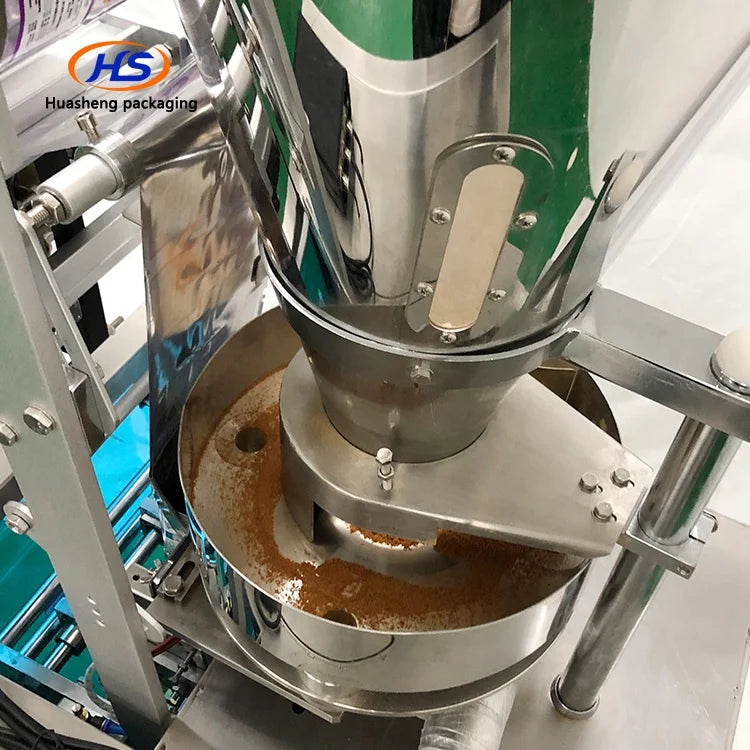

Measuring round plate & cups
1. High accuracy for refine pellets;
2. Clear window to check product level;
3. Stainless steel cups, long service time;

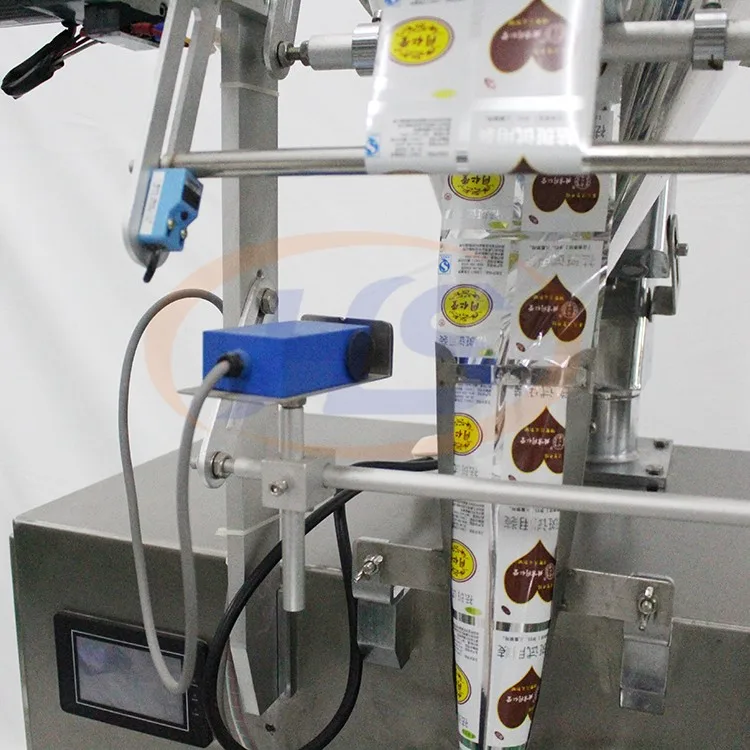

Photocell function for eyemark:
1.White & black eyemark available;
2.Left & right & middle position adjustable;
3.Fast detecting;
4. +/-1mm error;

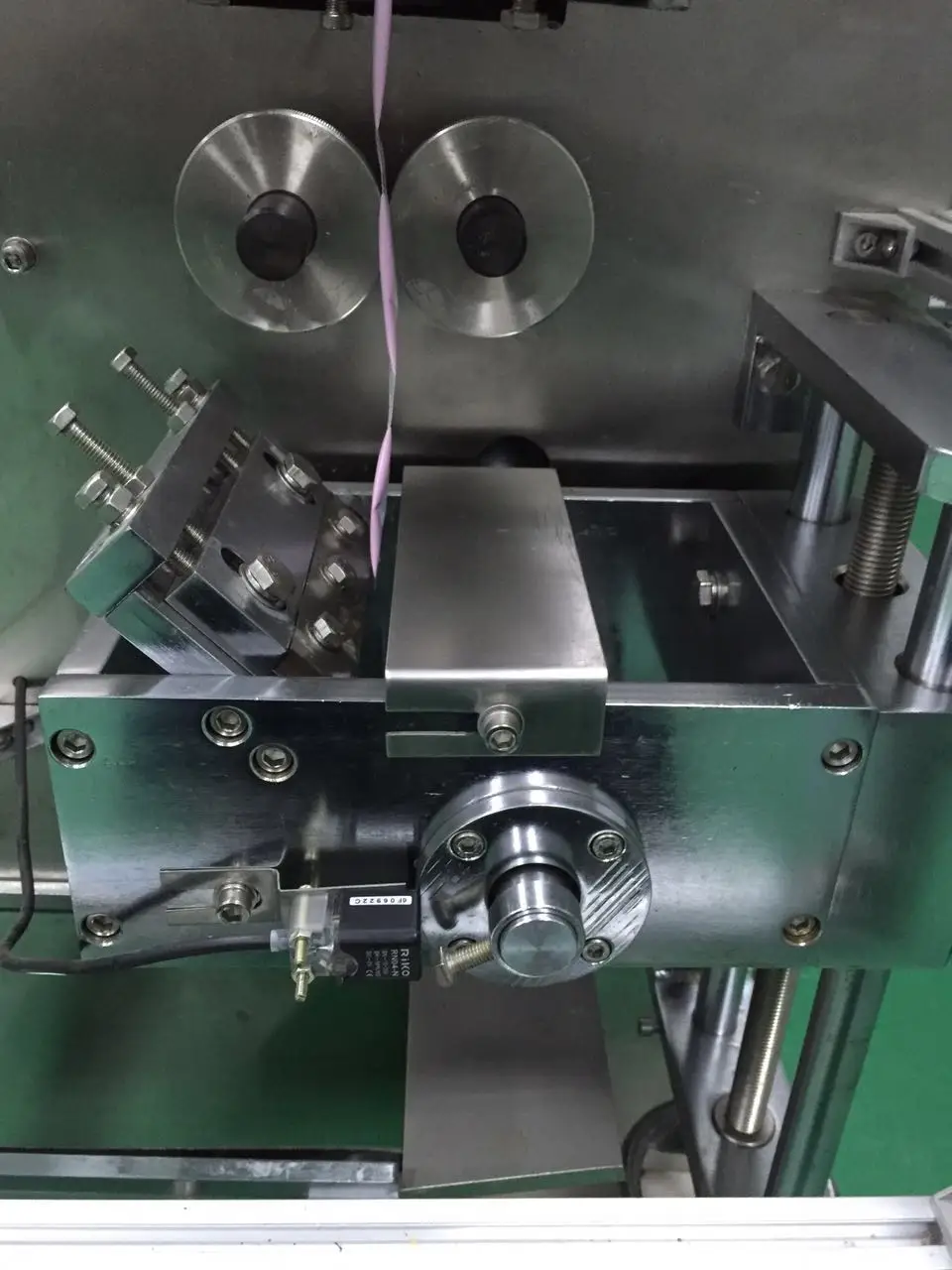

Down cutter system:
1.Two sets cutter, for bag chain or individual bag or certain bag in a chain;
2.Rotary cutter, long lifetime of blade;
3.One handle to adjust blade up/down;
4.Better performance on cutting;

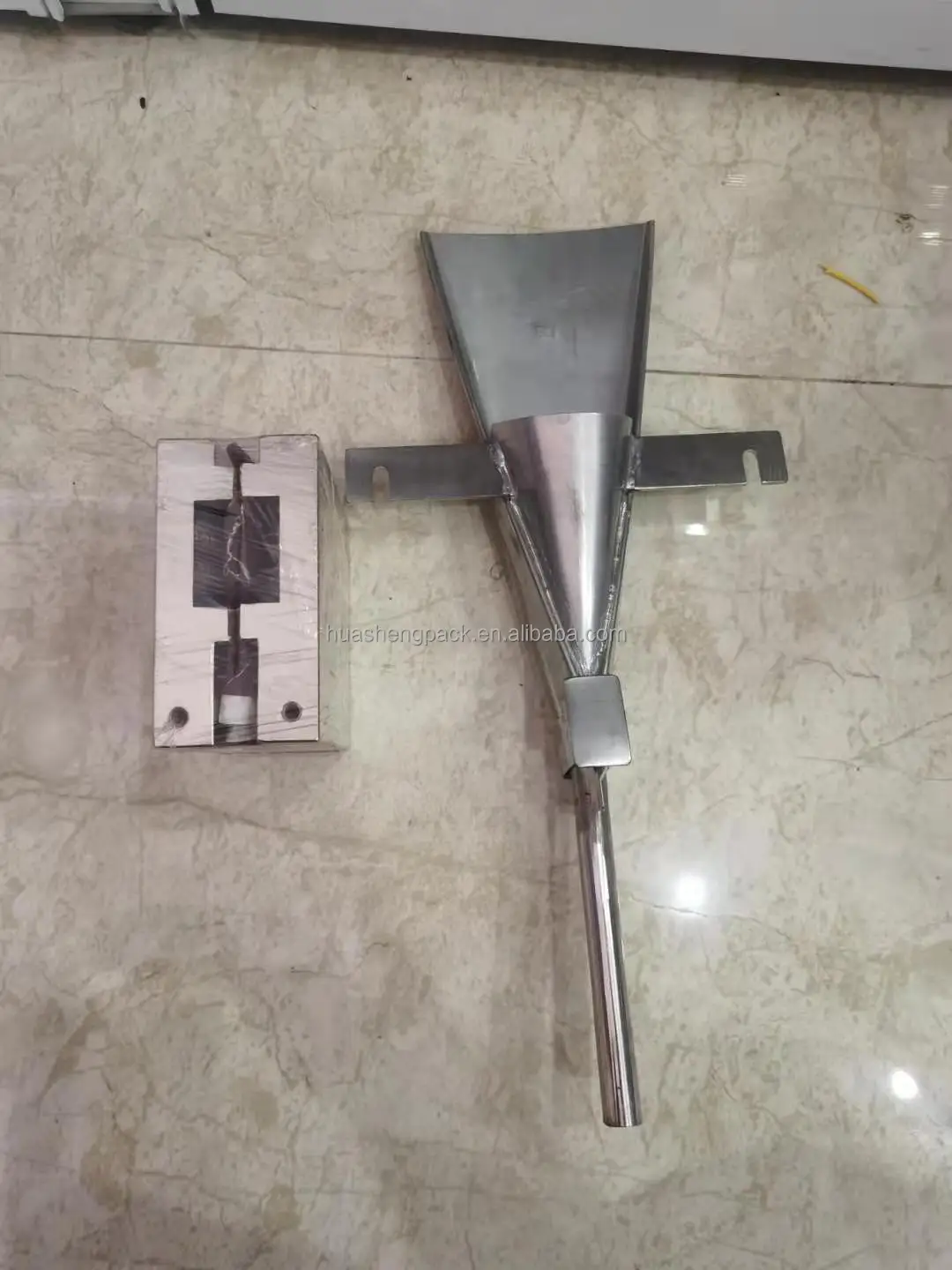

Former & seal jaw unit
To fit buyer's target bag size

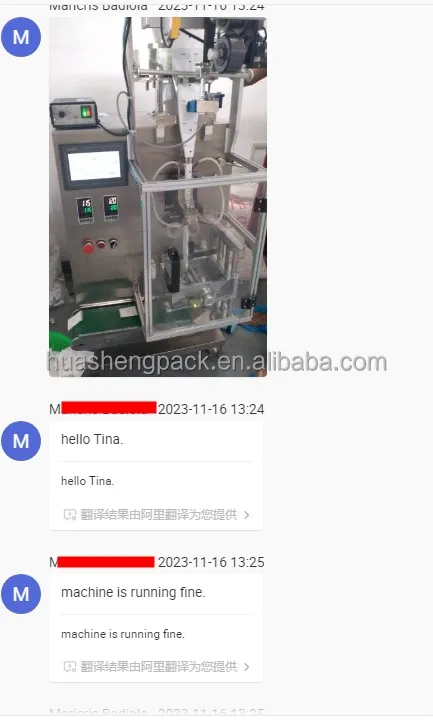

Buyer feedback

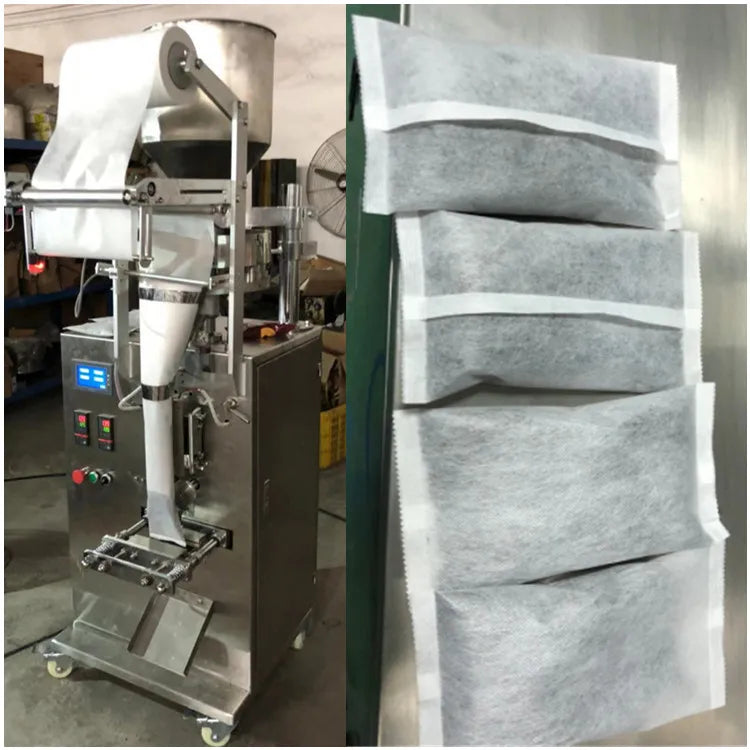

The same model machine using paper/PE film roll

Standard machine set

Recommend Products
Contact me
What Guangzhou Huasheng do:
1. Over 14 years manufacturing experience, focus on the details for your machine production.
2. We test every your ordered machine before packaging.
2. We test every your ordered machine before packaging.
3. Machine testing video and high grade photo of ready packets will be shared with buyer.
4. Guarantee whole machine lifetime parts supply.
5. Factory supply, customized logo &packaging request can be meet.
6. Safety packaging to protect your machines during long time ocean shipping.
7. Door to door shipment service can be provided.
8. Sample machine in stock for testing;
9. Work together with your film supplier or directly supply specific printing film for your project.
10. Two month free warehousing for your order;
5. Factory supply, customized logo &packaging request can be meet.
6. Safety packaging to protect your machines during long time ocean shipping.
7. Door to door shipment service can be provided.
8. Sample machine in stock for testing;
9. Work together with your film supplier or directly supply specific printing film for your project.
10. Two month free warehousing for your order;
Further more customized, let's talk.
