SPECIFICATIONS

APP: Eseecloud

Application: outdoor

Audio: Support 2-way Audio

Customized support: OEM, ODM,Online Technical Support,Customized Logo

Data Storage Options: Cloud,Micro SD card,Full HD

Day& Night: Colorful+Black White

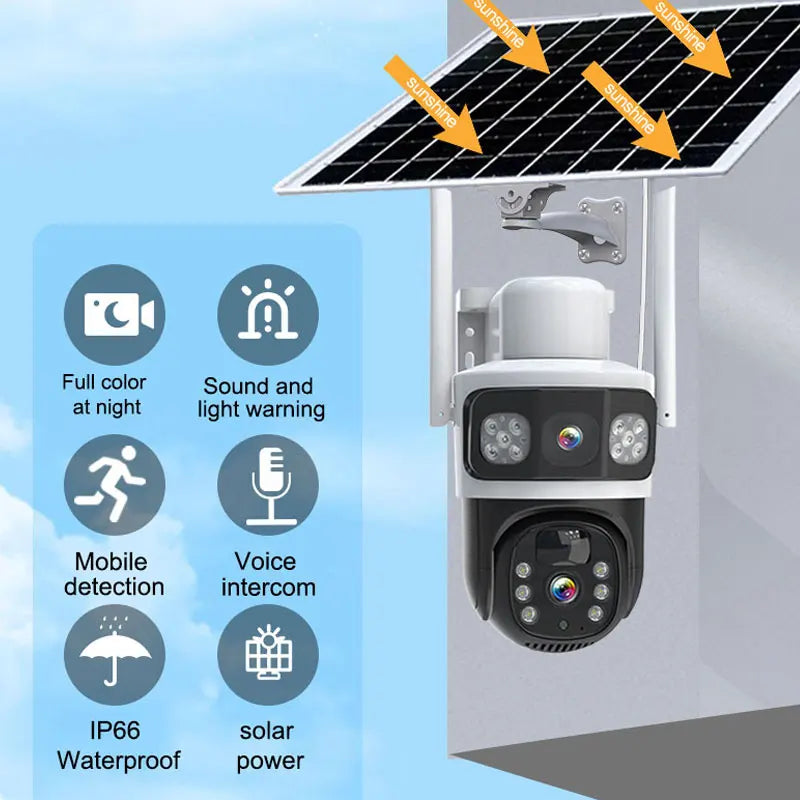

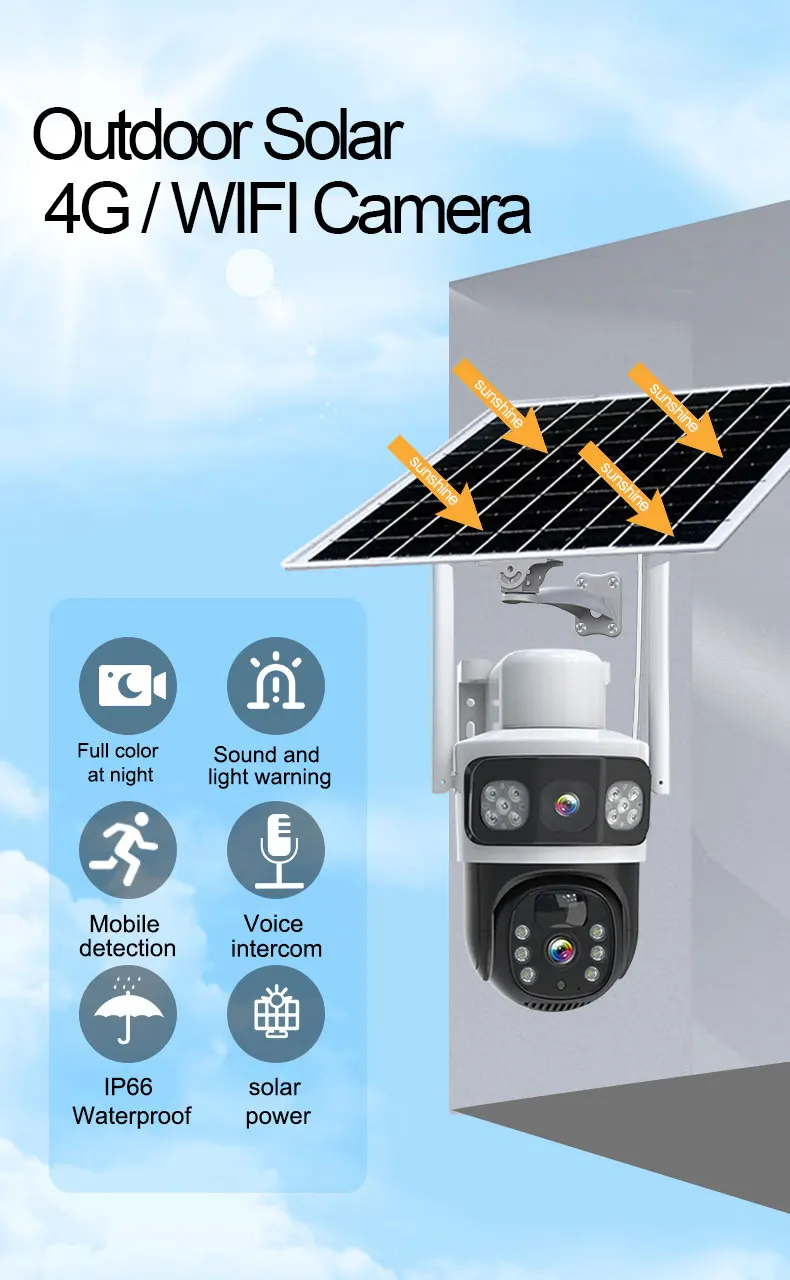

Function: Two-Way Audio,Reset,Night Vision,Built-In Mic,Waterproof / Weatherproof,Full Color,Wide Angle,Vandal-Proof,Built-In Siren

IP Rating: IP66

Lens: 3.6mm,3.6mm+3.6mm

Material: ABS,ABS engineering plastic

Model Number: QS16-B4L

Night vision: Color Infrared Night Vision

Pixels: 6 MP

Place of Origin: Guangdong, China

Power Supply: Solar +18650 Battery

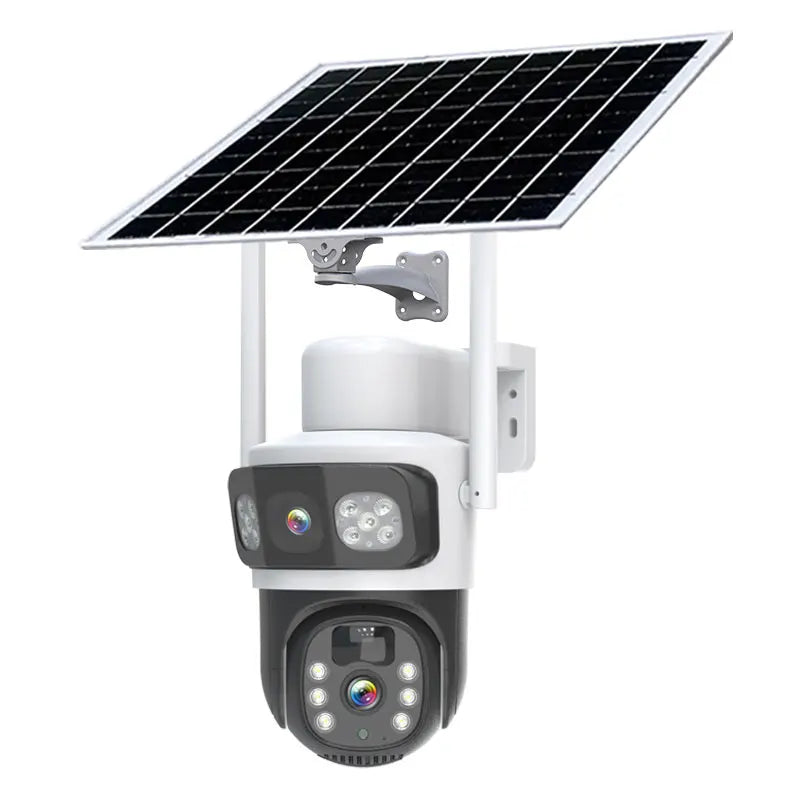

Product name: solar camera

Sensor: CMOS

Special Features: Two-Way Audio,Night Vision,Vandal-Proof,Motion Detection,Waterproof / Weatherproof

Style: Solar Camera

Video Compression Format: H.265

Viewing Angle: 90

Warranty: 1 Year

Waterproof: IP66

About this product:

·Household high-definition solar monitoring camera

·WIFI version 4G Southeast Asian version 4G European version optional

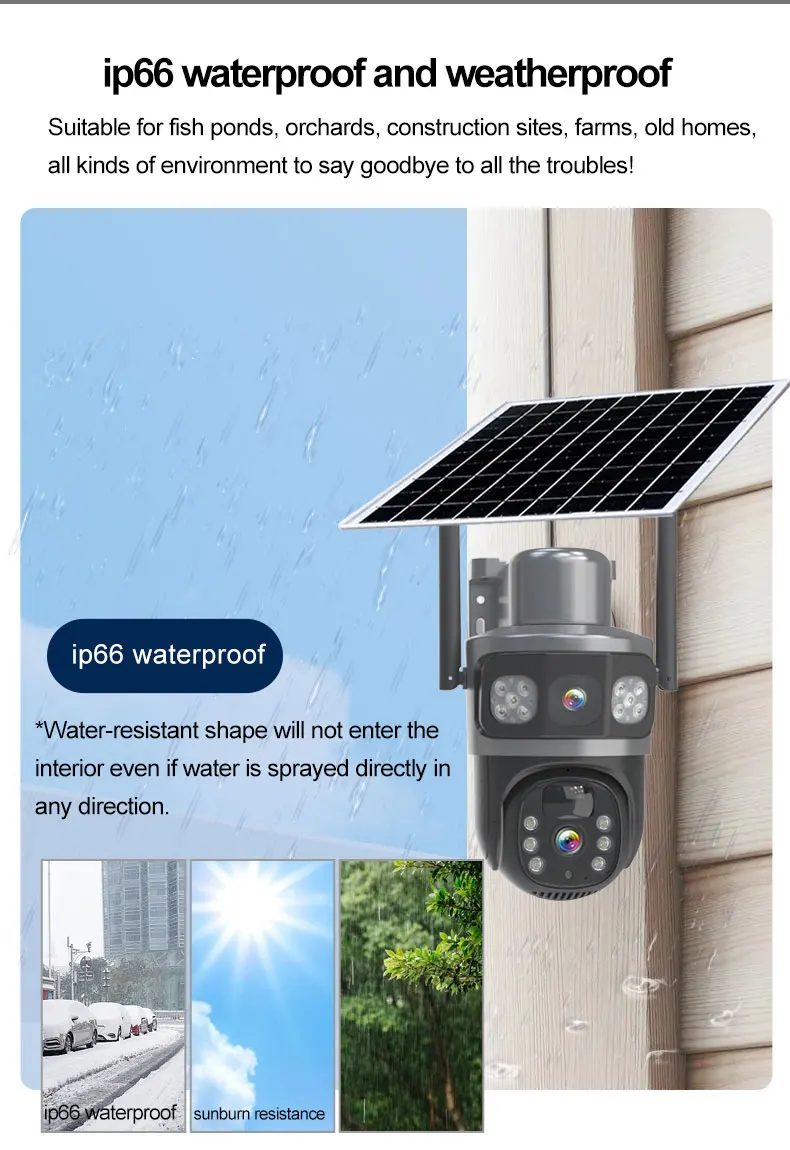

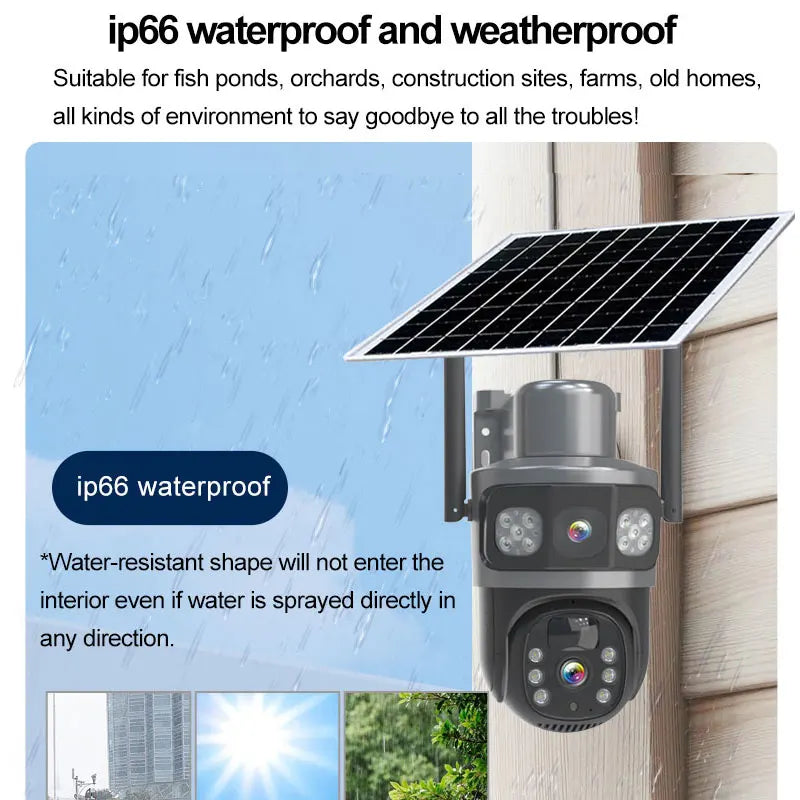

·Outdoor waterproof and weather resistant design: This camera is designed to withstand harsh outdoor conditions, making it ideal for

use in various environments, including areas susceptible to heavy rain or extreme temperatures.

·Advanced motion detection and tracking: The camera has human motion tracking and motion detection functions, which can effectively monitor and alert users to potential security vulnerabilities.

·High quality video and audio: With 6MP resolution and bidirectional audio functionality, users can enjoy clear and crisp video and audio, ensuring seamless communication and monitoring.

·Energy saving and low power consumption: This solar camera is designed to operate efficiently, reduce energy costs, and minimize its impact on the environment.

·User friendly applications and customization options: Compatible with Android and i0S devices, this camera can be easily controlled and customized through the Eseecloud application, allowing users to personalize their security experience

Product parameters:

Product model	QS16-B4L
Module	WIFI version/ 4G Southeast Asian version /4G European version optional
Distribution network	Qr code scanning+SIM Card Quick link
Audio	Audio code : AAC / G.726 MIC : High sensitivity -42dB
Protocol	TCP/IP,HTTP,TCP,UDP,SMTP,DHCP,DNS,P2P
Image Sensor	1296P resolution CMOS +1296P resolution CMOS
Video frame rate	*H.265 Main stream: 23041296@15fps; Substream: 720x480@15fps**
Number of lights	16PCS
Mobile detection	PIR + mobile detection + humanoid detection multiple intelligent detection, effective distance 10 meters
Night vision distance	infrared night vision+Warm full color night vision,App selection
Camera lens	3.6MM+3.6MM F=1.4 FOV 90°
Battery	Built-in 8000 mAh battery,solar rechargeable battery

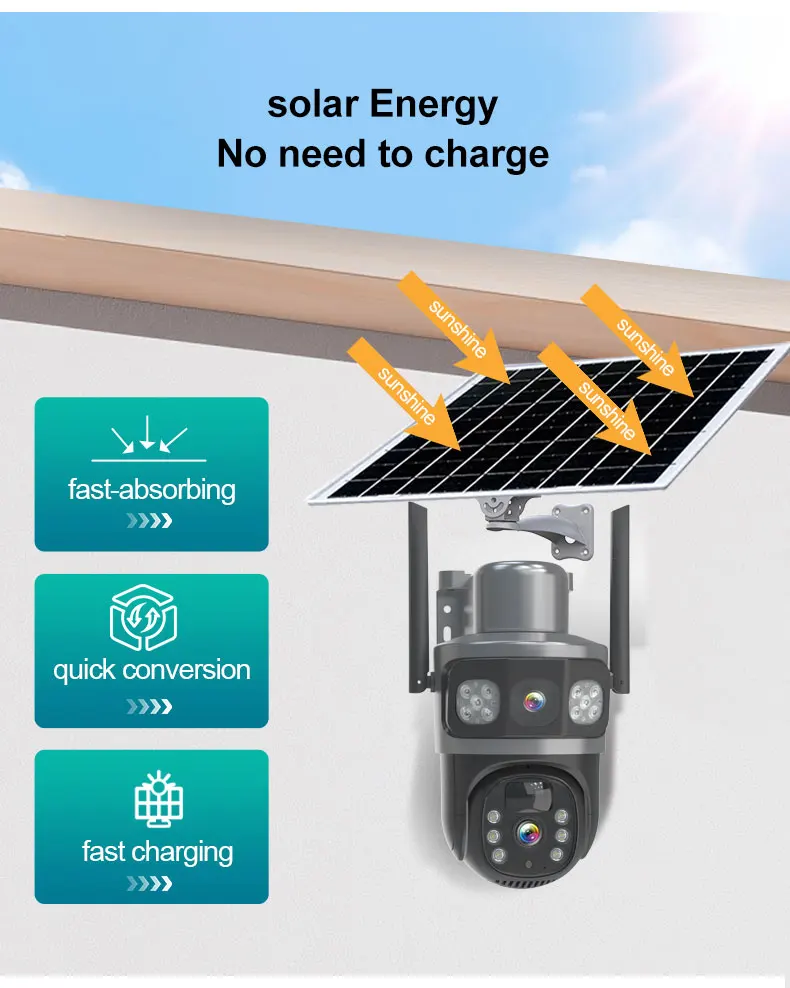

Recharge	7.5W Solar power continuous charging, support Type-C port about 8 hours full charge
Wake up	15s
Audio	Audio code : AAC / G.726 MIC : High sensitivity -42dB
Environment	Humidity : ≤80%RH Temperature : -30°C~ + 60°C
Features	AEESS : Support Key : Power/reset key Status : LED (blue & red) Memorizer : Support TF Card 32GB-256GB and cloud storage Playback : Event list and cloud storage playback Full duplex intercom : support

Product size and weight:

Package picture	Package size (CM)	Weight(KG) (Kg)	Carton size(CM)	Packing quantity (PCS)	Weight (KG)
	*252016*	1.7KG	*504252*	12PCS	22KG
