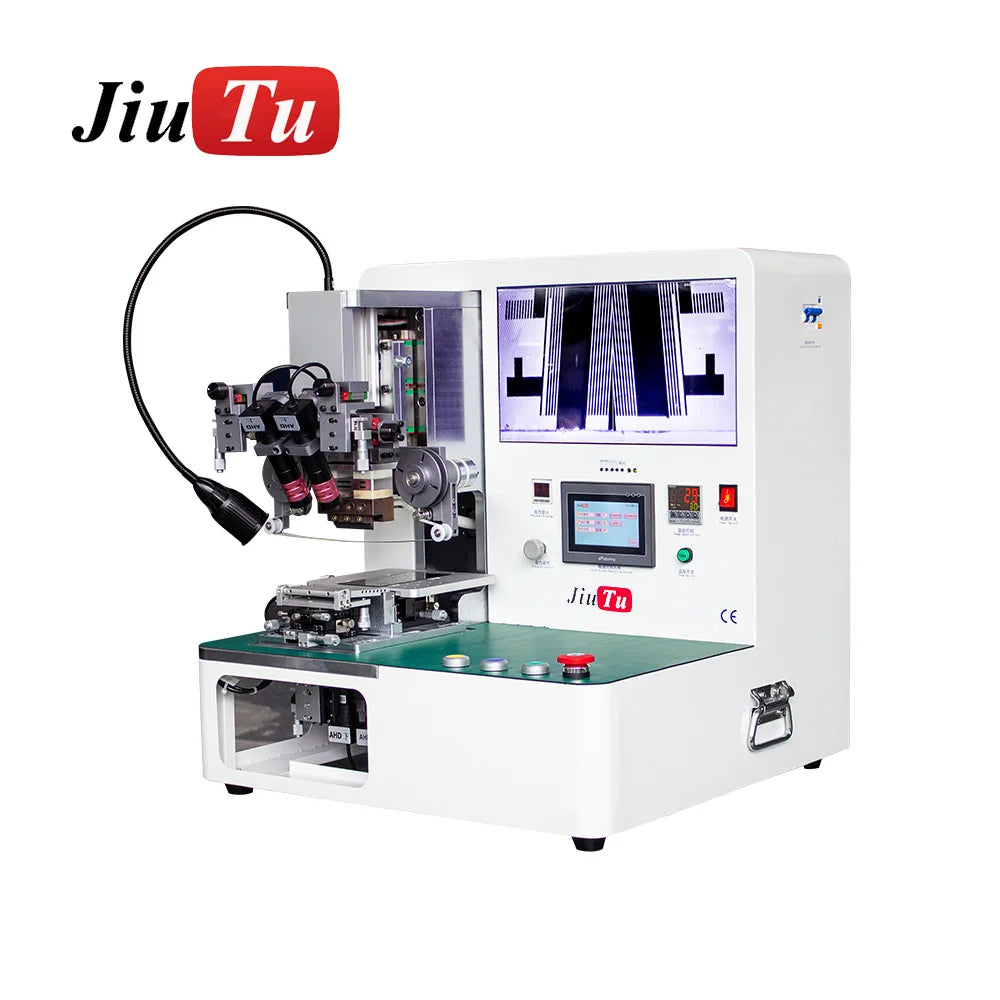

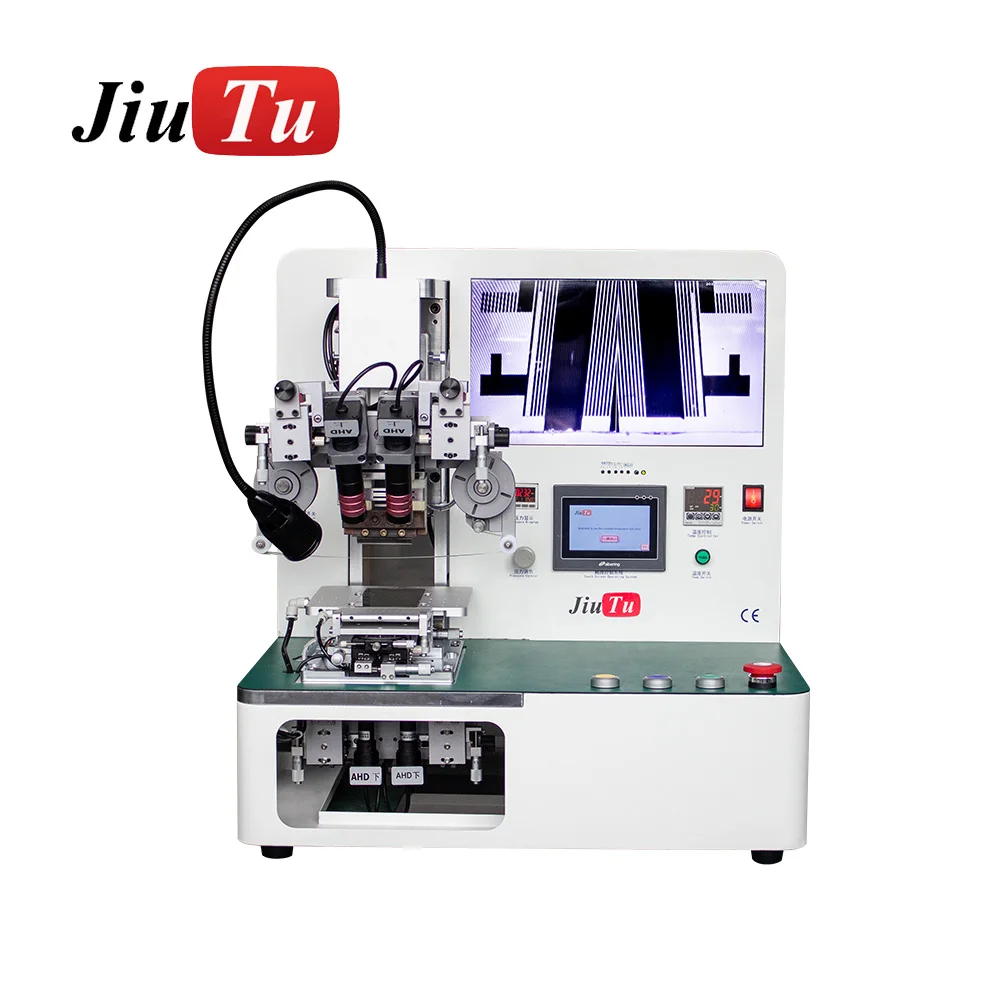

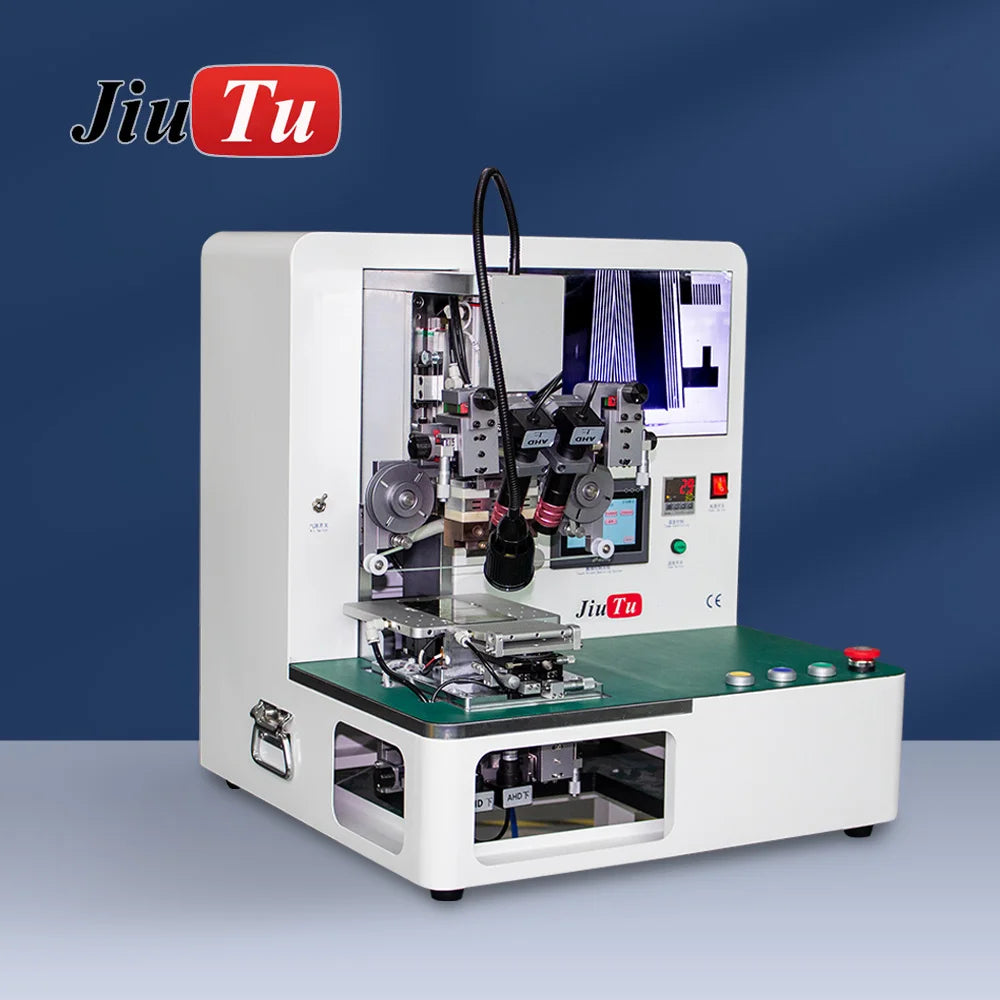

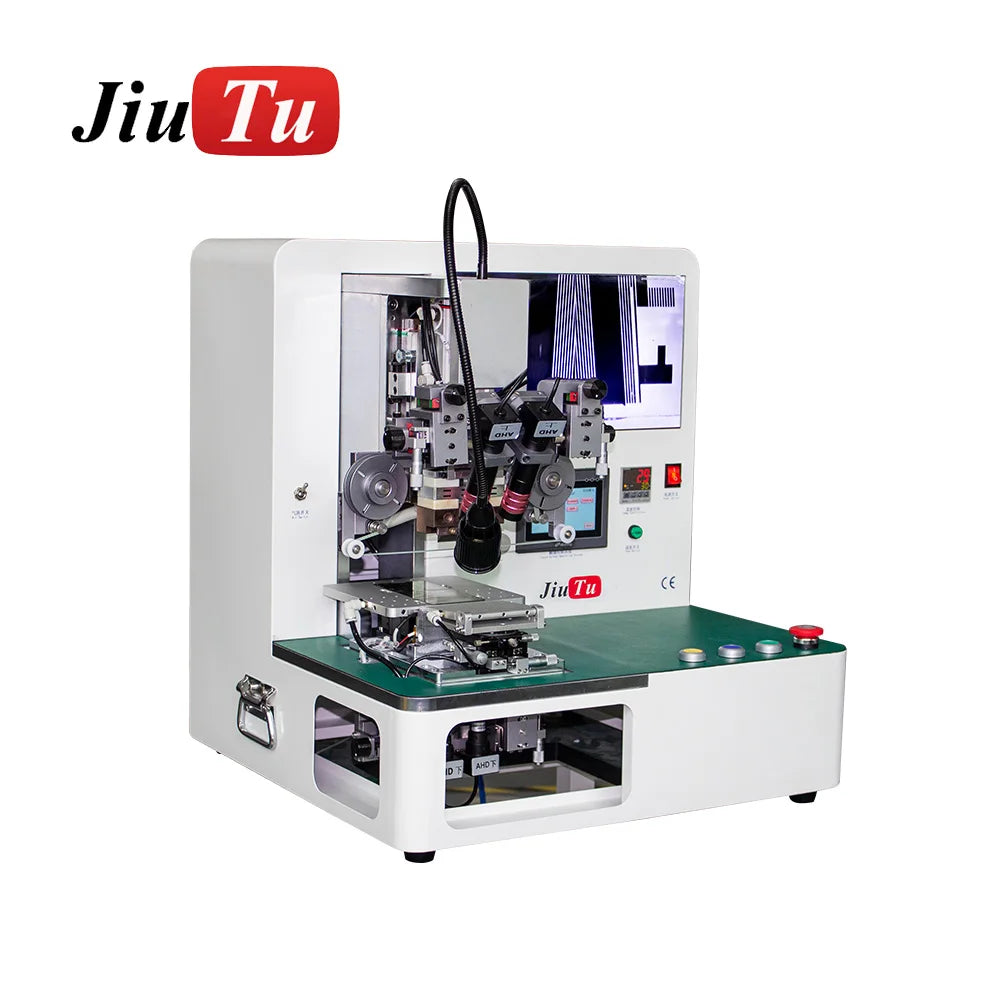

Customized ACF Hot Press Pulse Machine for Smart Glasses Bonding

$8,730.00

Reliable shipping

Flexible returns

SPECIFICATIONS

After-sales Service Provided: Engineers available to service machinery overseas

Applicable Industries: Manufacturing Plant,Machinery Repair Shops

Application: mobile phone camera row Wire binding

Application 2: smart glass bonding machine

Application 3: projector driver film bonding

Condition: New

Function: flex bonding

Marketing Type: New Product 2021

Name: ACF heat press machine

Showroom Location: United States

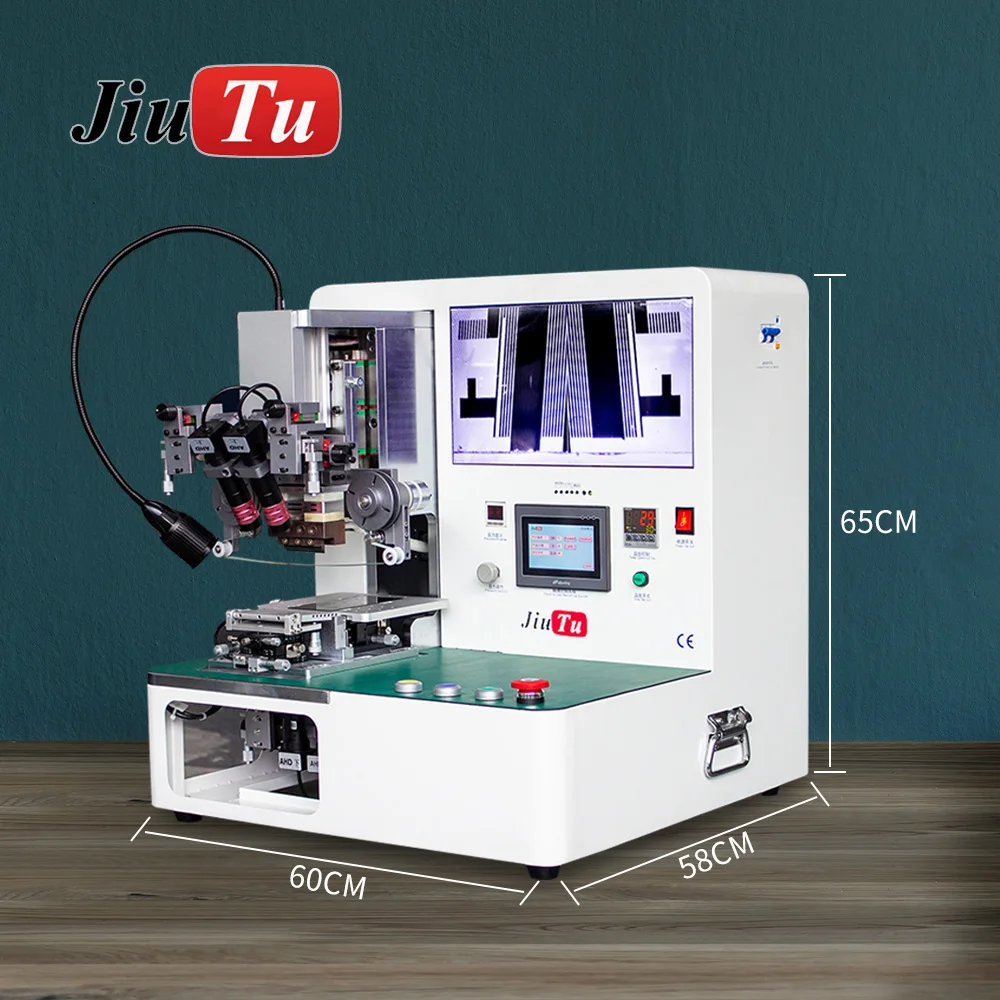

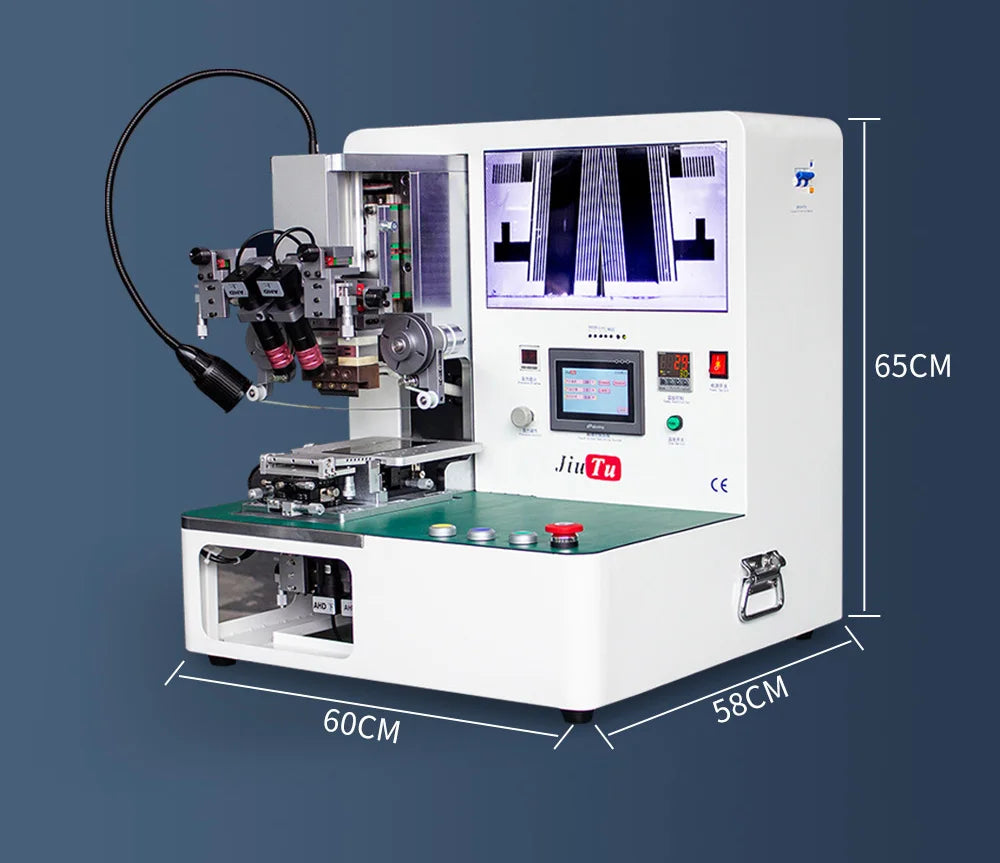

Size: 64*55*67cm

Vacuum Pump: Needed

Voltage: 220V

Warranty of core components: 2 Years

Weight (kg): 90

Working time: Only need 25--40 seconds

brand name: Jiutu

core components: other

machinery test report: Provided

place of origin: Guangdong, China

video outgoing-inspection: Provided

warranty: 2 Years

We are one of the professional manufacturer of LCD repaired machine. No layer broker, so buy with confidence.

With Jiutu logo, you will get 2+ years warranty in technology instruction. There are over 100 video demos for clients.

Product Description

Newest ACF Bonding Machine For Zebra Paper Heat Press

Function :

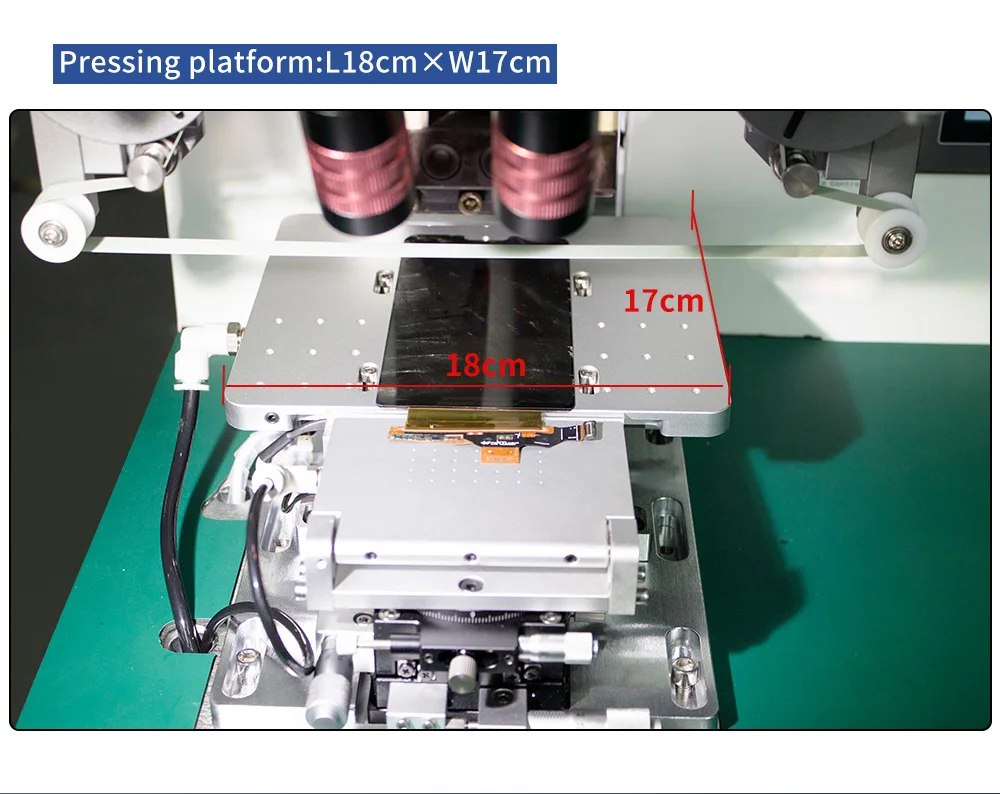

The length of the cutter head of the product can be customized within 90mm*width of 5mm; the temperature can be set at 0-450 degrees, and the pressure can be adjusted from 0-0.6mpa. The platform has a pre-heating function, and the camera can be positioned up or down according to the requirements, and the lens multiples can be configured according to the samples provided by the customer.

Main Features :

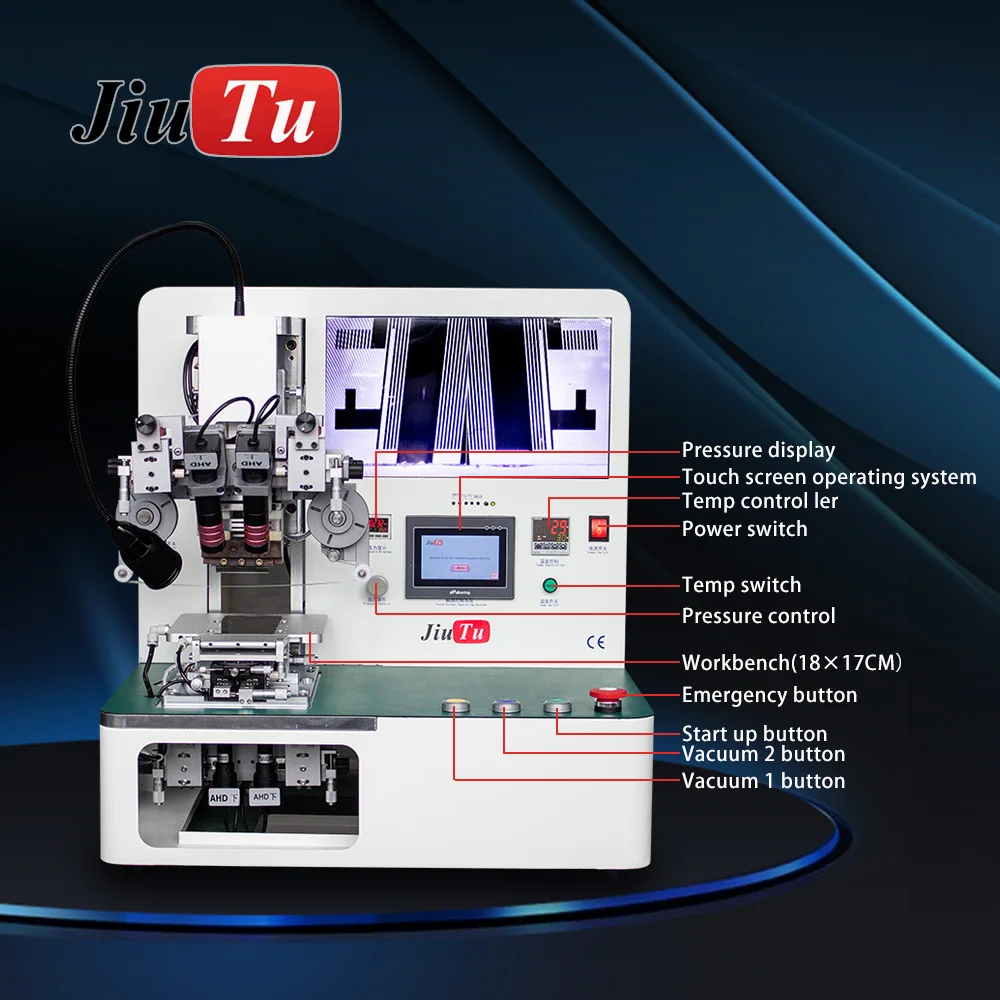

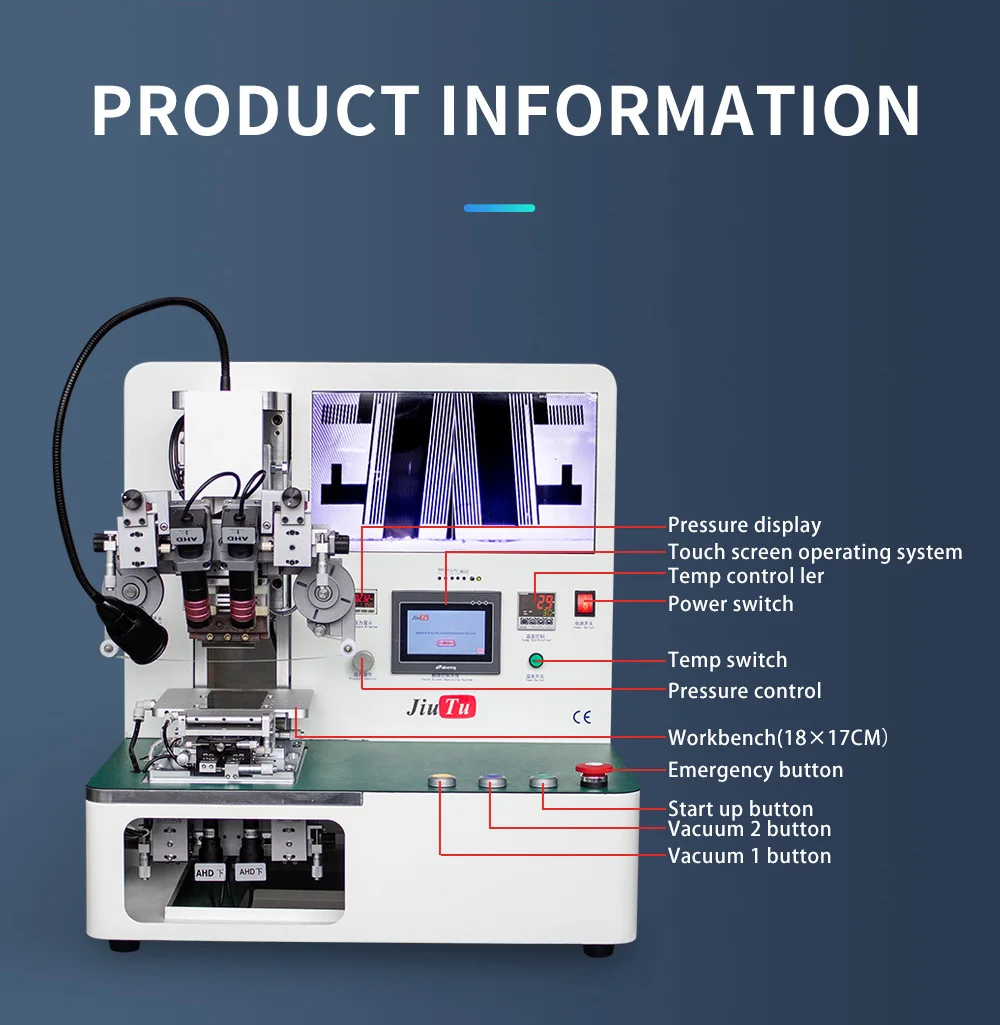

The constant temperature heating method is adopted, and the main structure is made of 45# steel with high precision and good stability. Using Japanese SMC cylinder + precision pressure regulating valve to precisely control the pressing force. Imported thermal insulation module and special tungsten steel cutter head are used for durability and high temperature accuracy. HD auxiliary alignment system.

Working principle :

The ACF glue process is mainly used to bind the chip, FPC or FFC cable together according to the pressure,temperature and time parameters of the ACF glue. According to the equivalent force and temperature output by the hot press, the
ACF particles are hot-pressed and blasted at a certain time, so as to achieve the purpose of vertical conduction and horizontal non-conduction.

Working area :
1,Mobile phone cable binding field,
2,medical field,
3,laboratory research and development test

Model	FPC/FFC bonding machine
P/N	9TU-M039A
Heating Method	Pulse heating
Working Tempature	0℃ to 500℃
Working Humidity	40%--95%RH
Working Rated Power	2500W

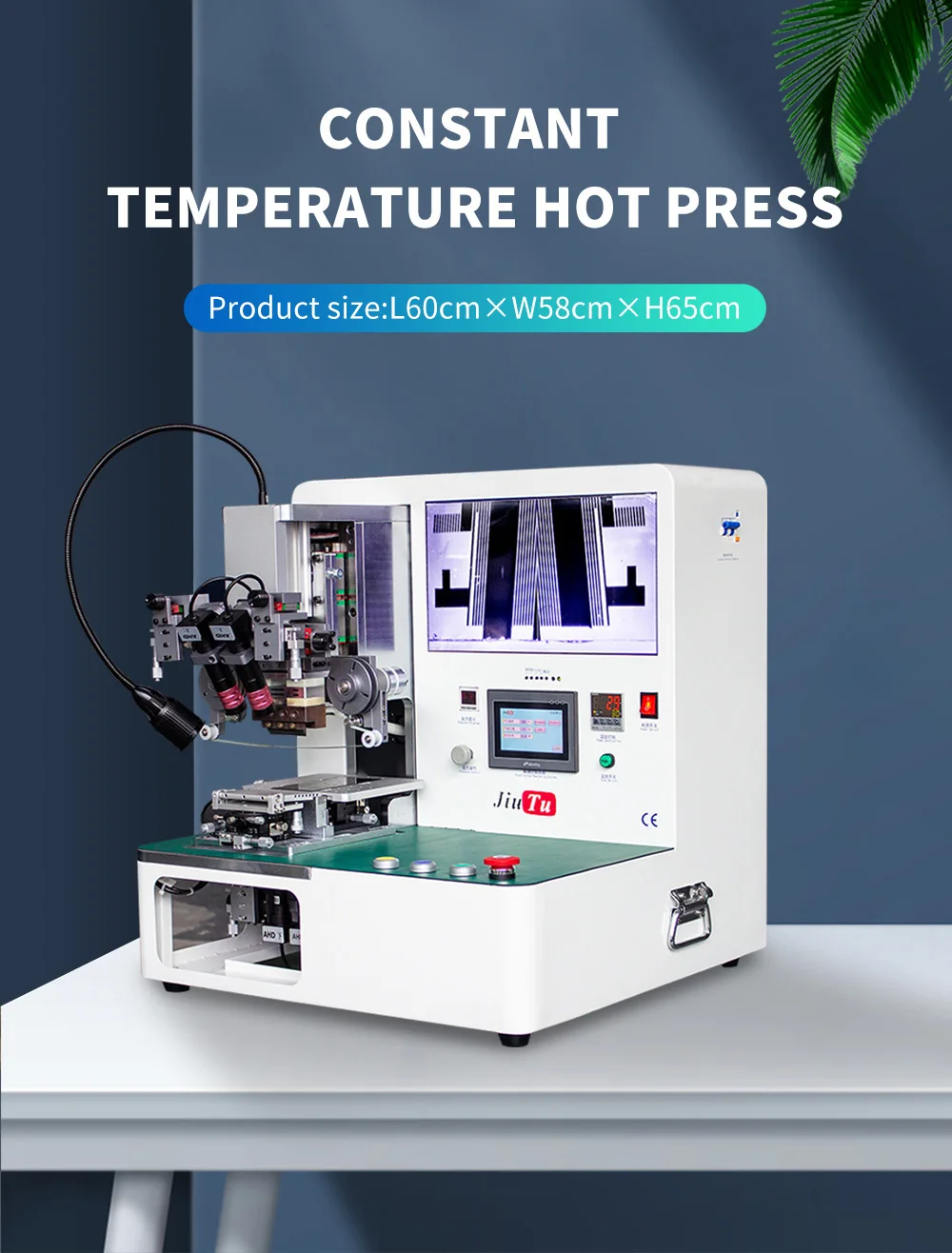

Machine Size	645557CM
Net Weight	85kg
Working Pressure	4--6kgf/cm2
Working Pressure	0.4-0.8Mpa
Volatge,Power Supply	220V 50Hz
