SPECIFICATIONS

Brand Name: MagiDeal

Certification: NONE

Choice: yes

High-concerned chemical: None

MainKey1: GPU Backplate Radiator

MainKey2: Graphic Card Backplane Cooler Heatsink

MainKey3: GPU Backplate Radiator Memory Cooling Fans

MainKey4: Memory Cooler 3090 3080 3070 Series Card

MainKey5: Heatsink Dual PWM Fan for Cooling Adjustable

MainKey6: Dual Fan Radiator Backplane Cooler Portable

Origin: Mainland China

Type: Cable Adapter

Description:

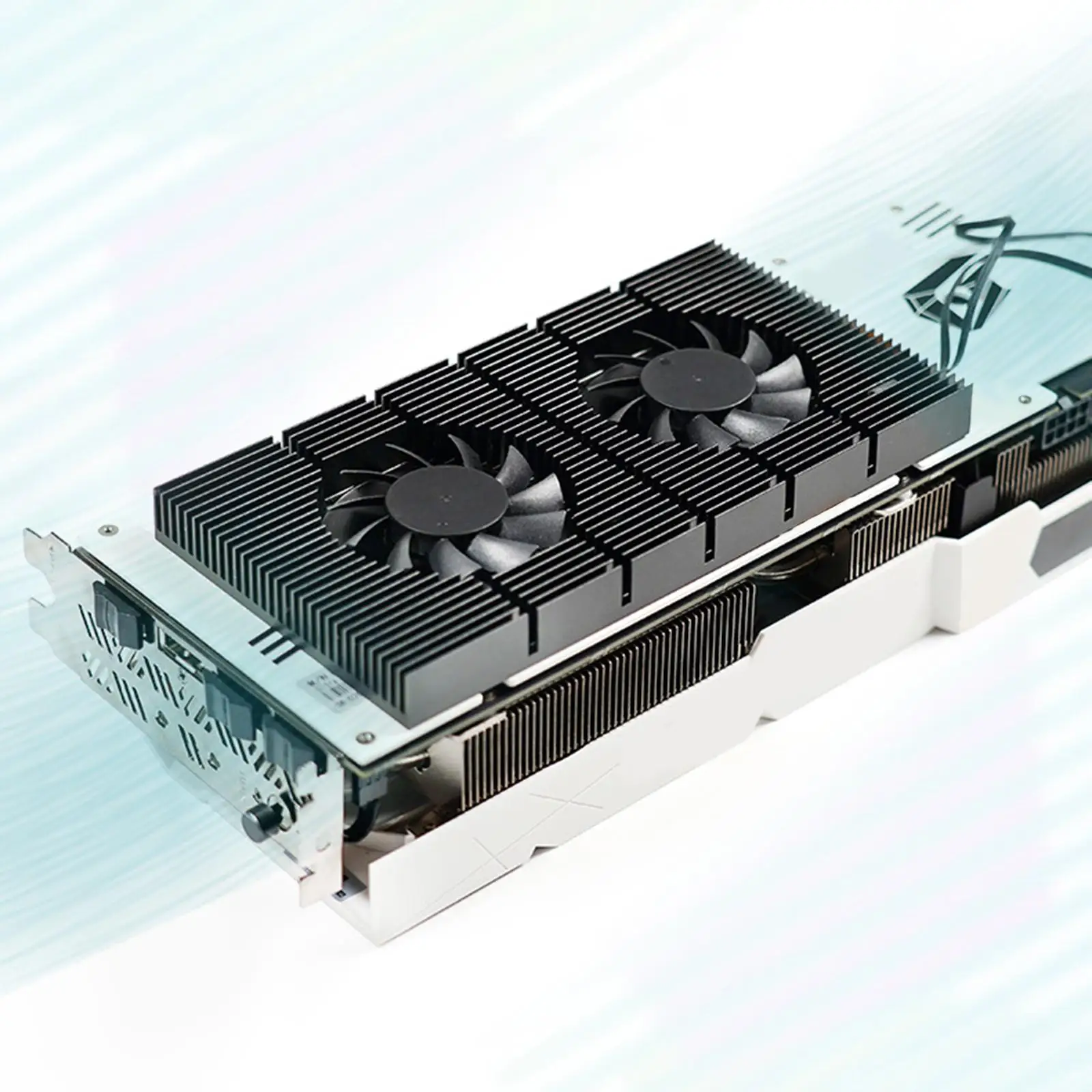

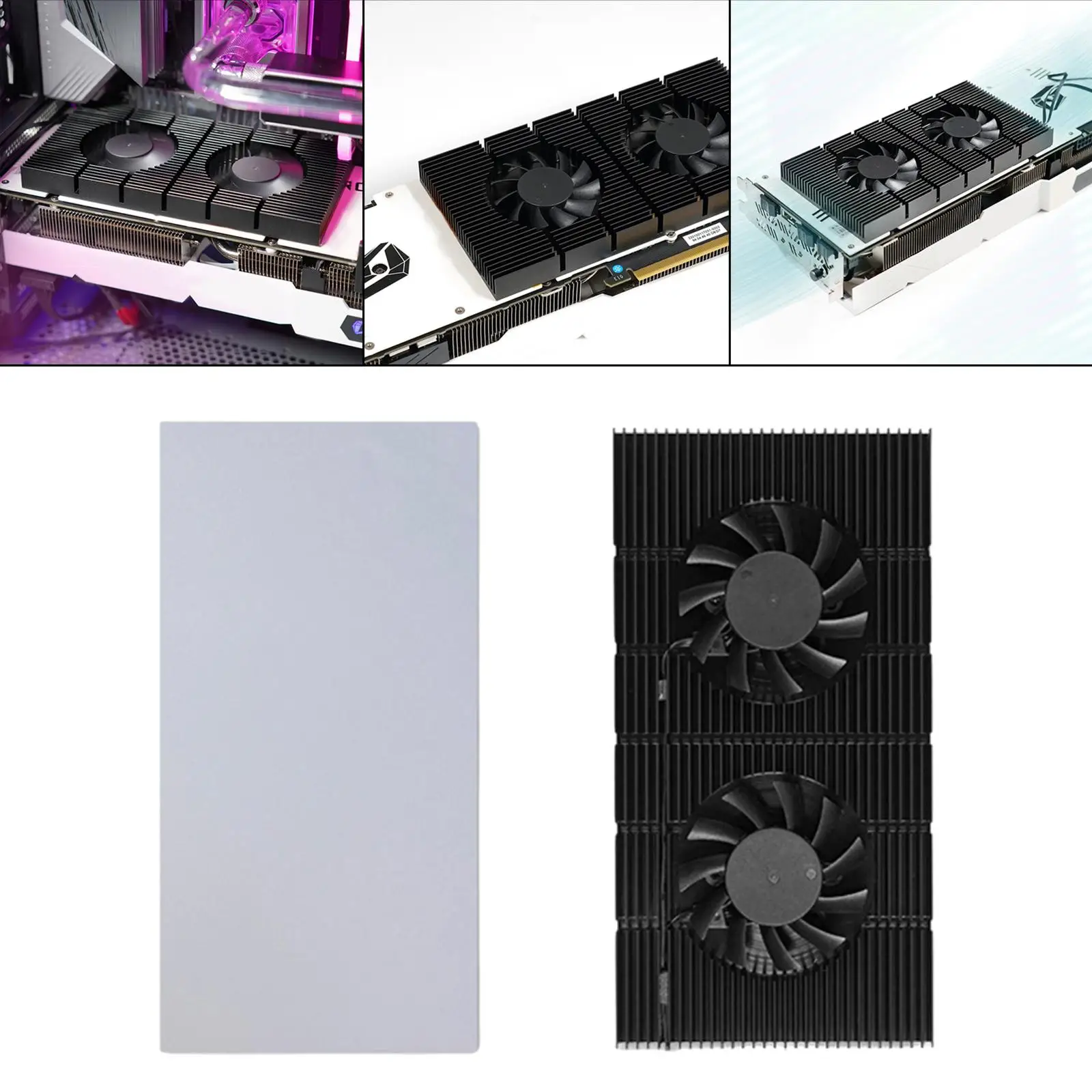

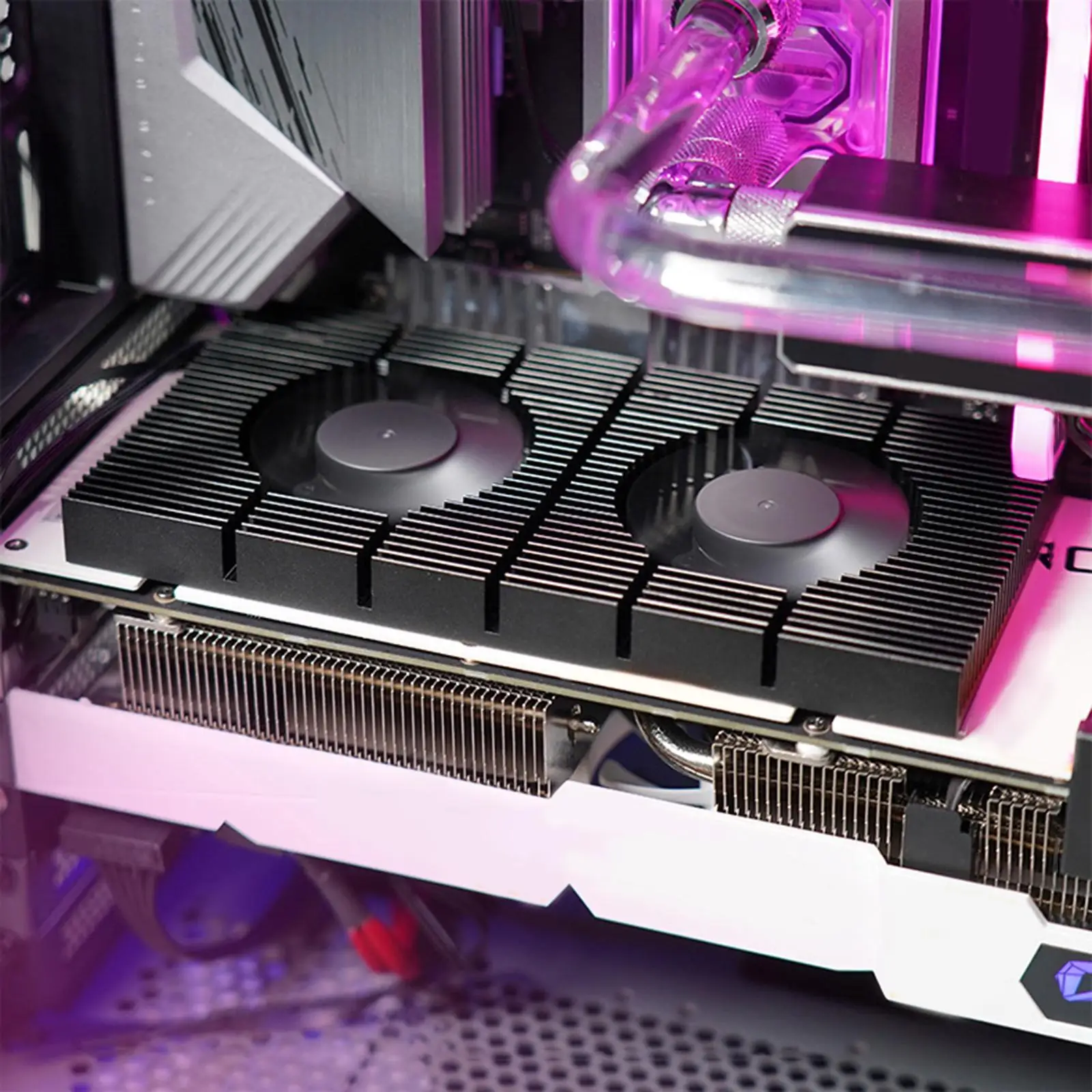

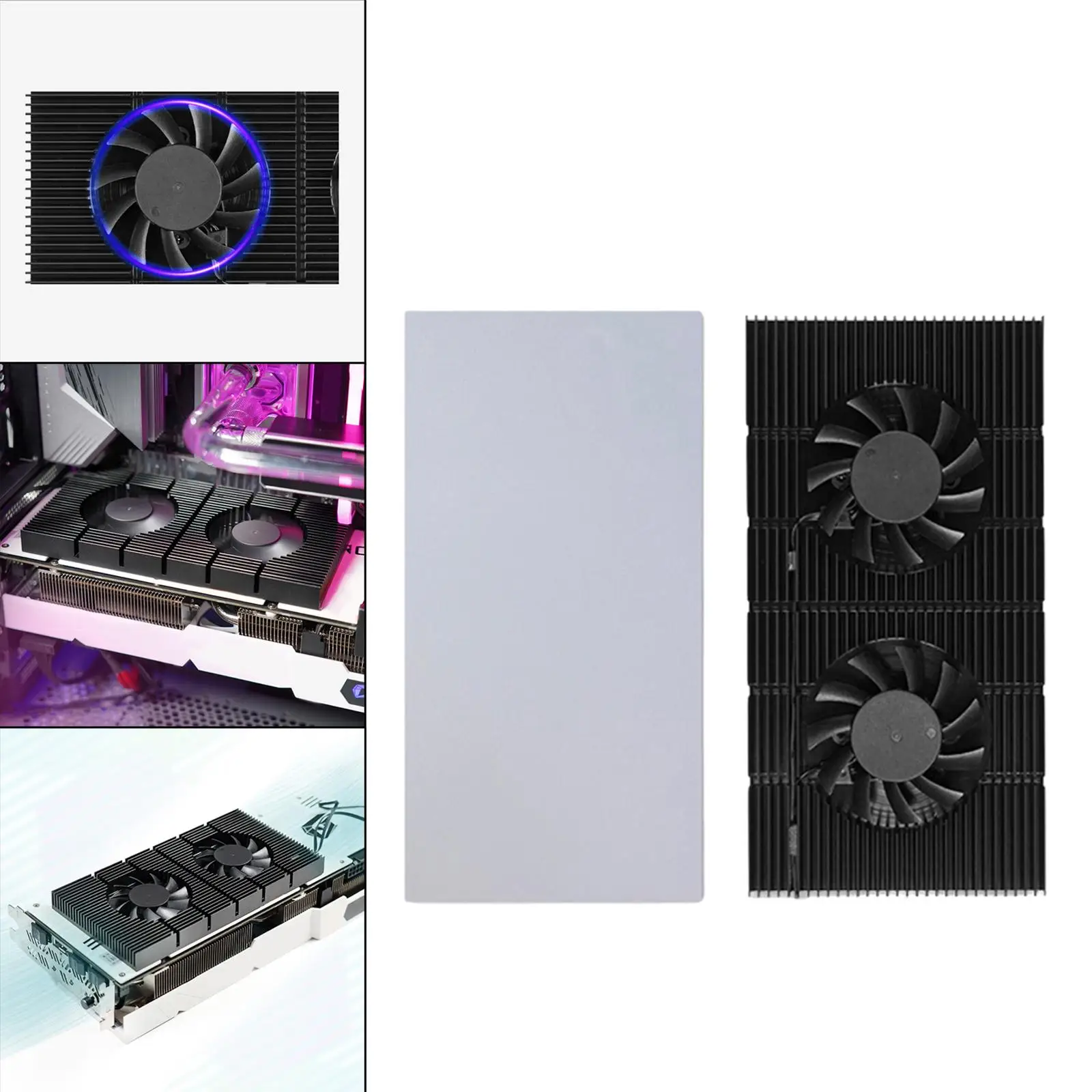

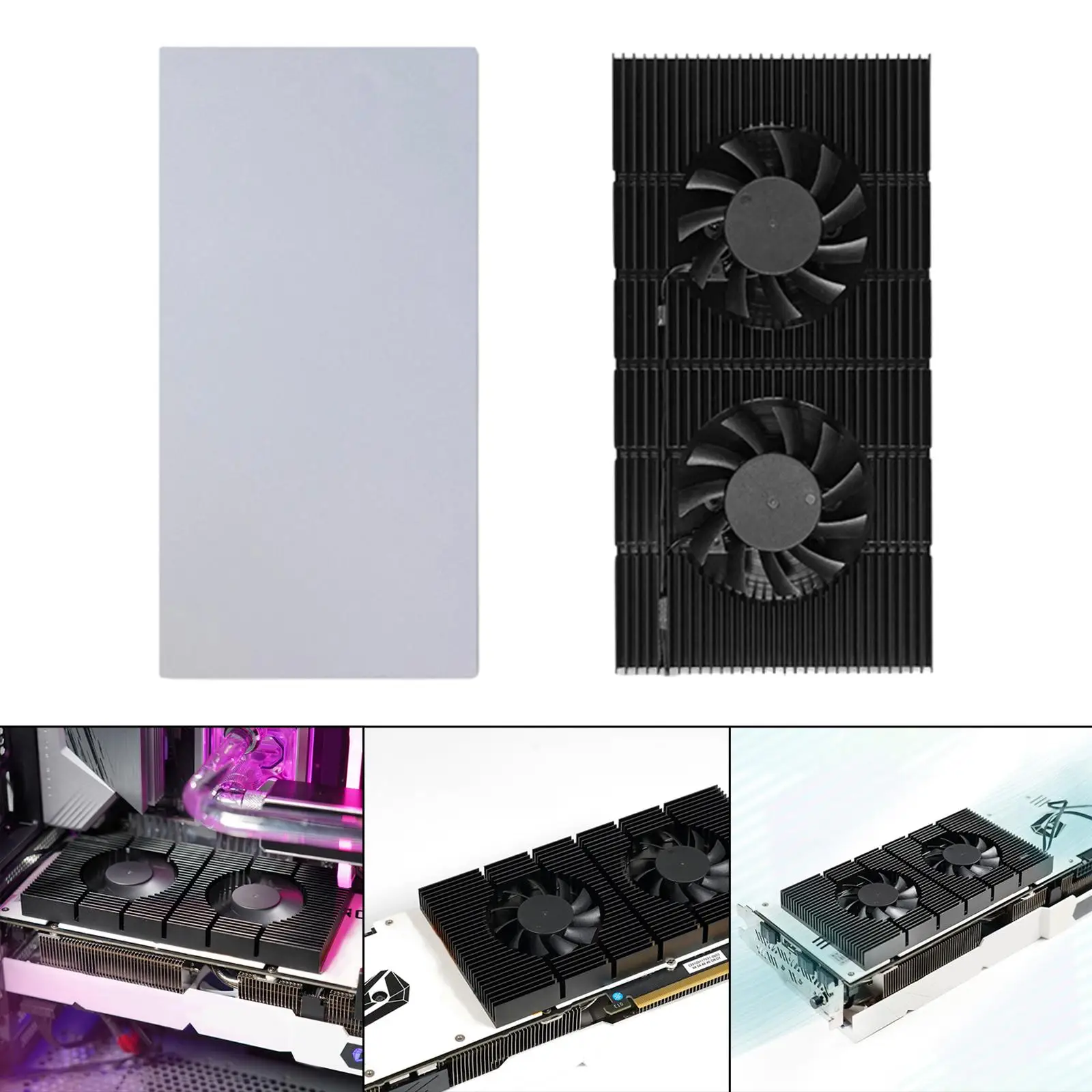

Graphics Card Radiator, application for RTX 3090 3080 3070 Series Graphics Card
Function: Solve the high temperature problem of graphics card backplate memory.

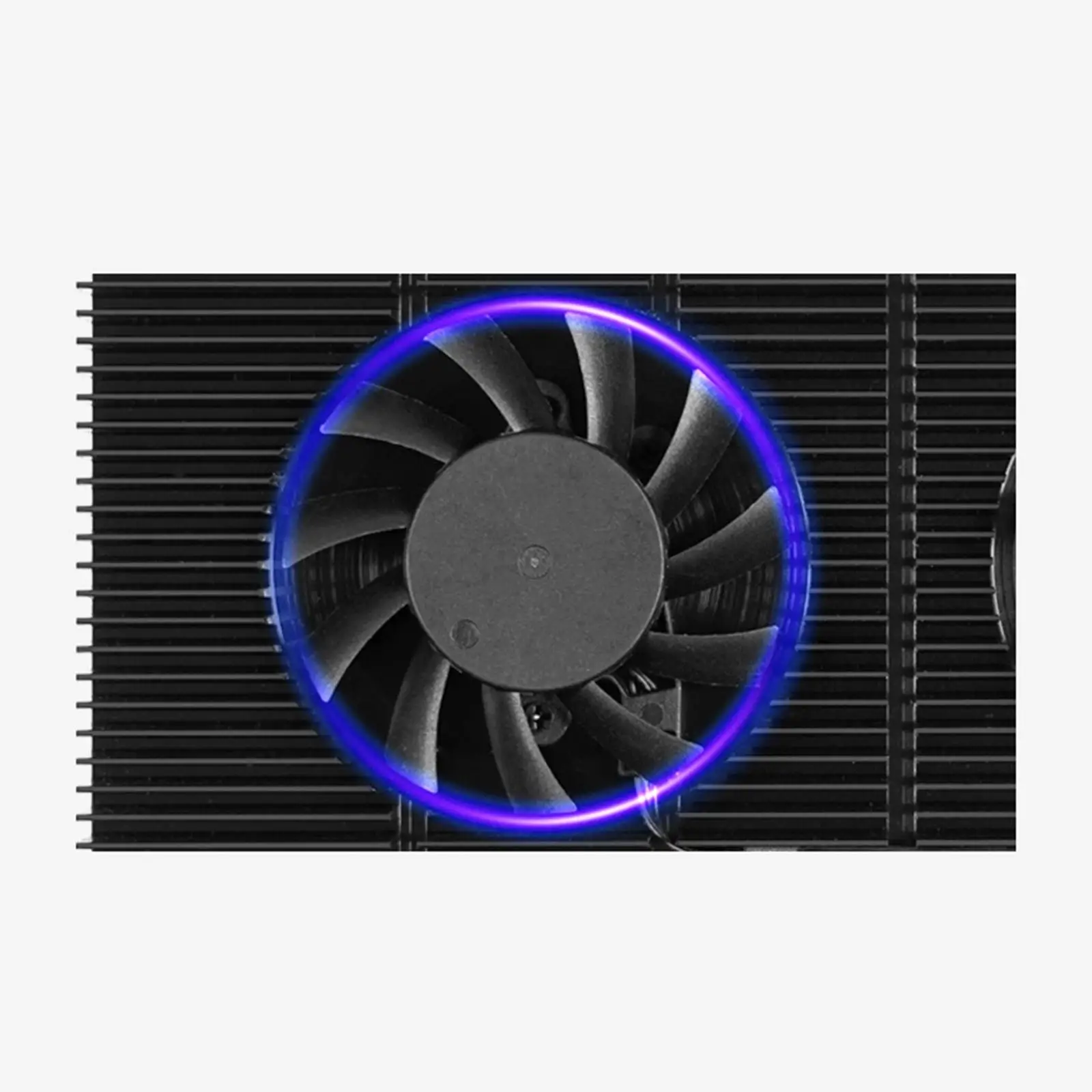

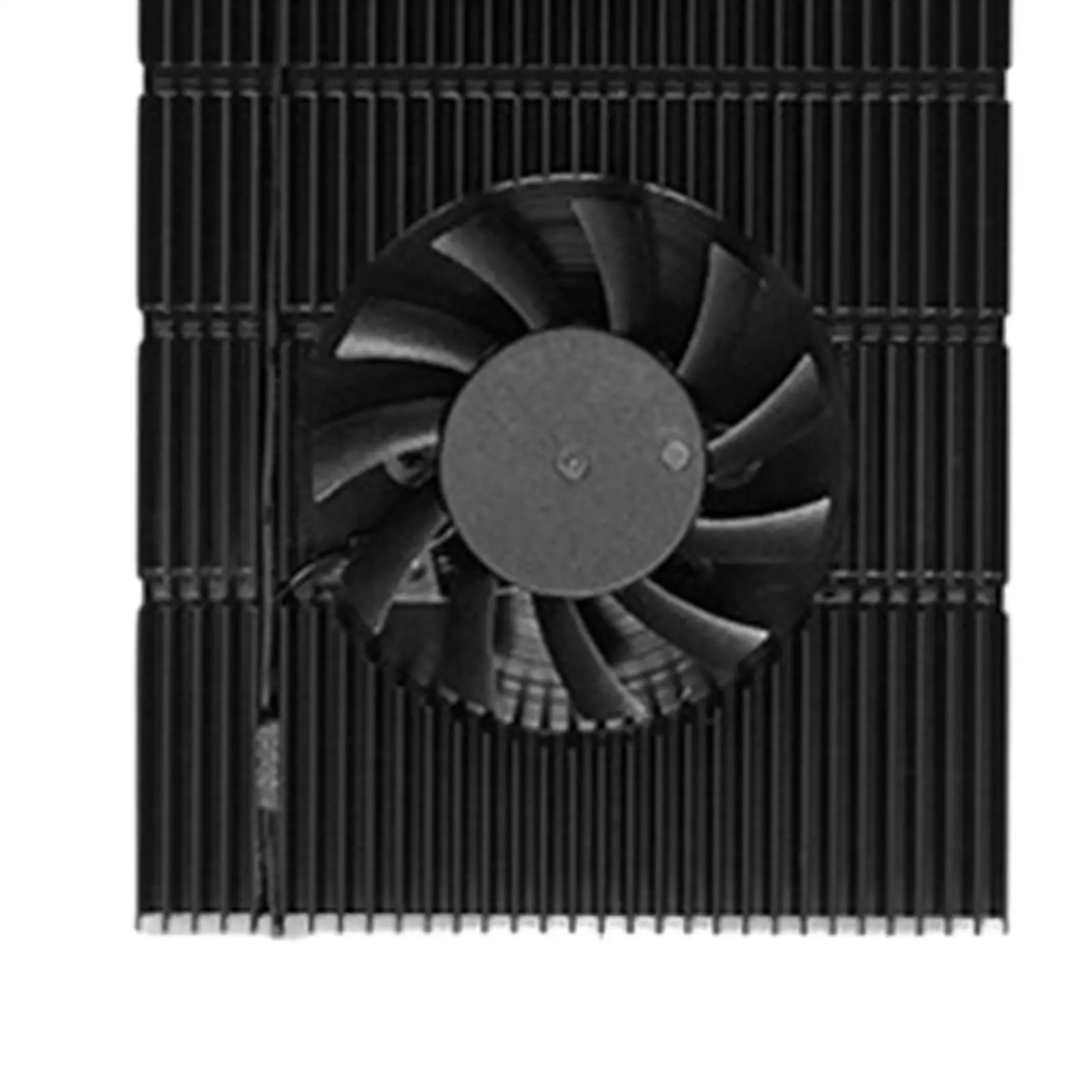

High performance adjustable speed fans, standard dual 6010 fans, up to 20CFM under full load, low noise hydraulic bearings, PWM speed regulation possible
Feature: The fan cable is a 4pin interface, which is the same as a normal chassis fan and is connected to a fan socket on the motherboard. It can be booted into the motherboard to adjust the speed, the speed range is 1500~4500 rpm, which can be adjusted arbitrarily.
Integrated Backplate Radiator, Anodized CNC machining, good compatibility, the thickness of the radiator body is 15 mm.

Specification:

Item Name: GPU Backplate Radiator
Material: Aluminum Alloy (anodized)
Fan model: 6010 bracket
Fan speed: 1500-4500±5% rpm
Fan interface: small 4pin, adjustable by PWM
Maximum noise: 25.5dB (single)
Bearing type:sleeve bearing
Wire length: 400mm±10mm
Application: for RTX 3090 3080 3070 Series Graphics Card

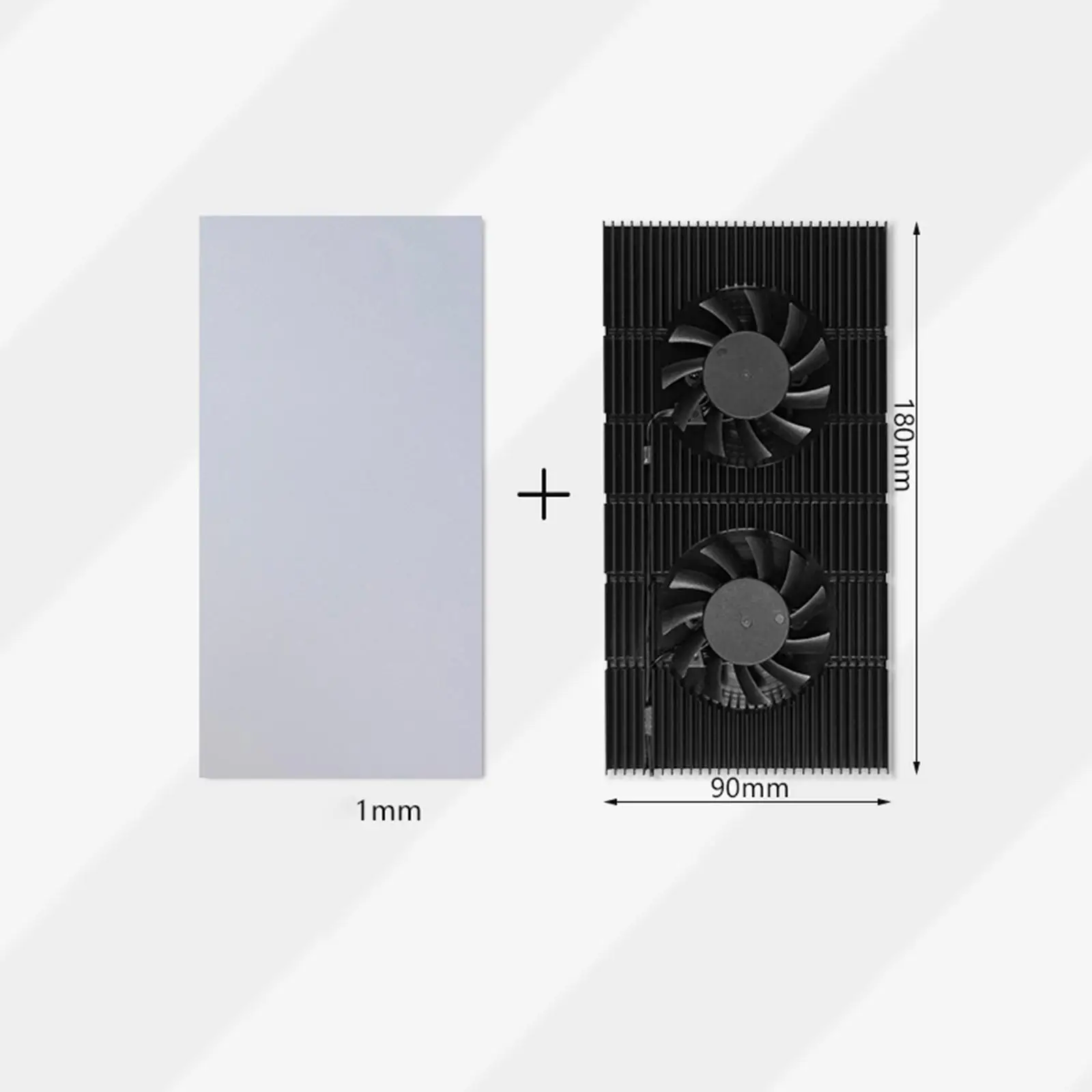

Size Chart:

180x90mm/7.09x3.54inch

Package Includes:

1 Piece Graphics Card Radiator
6 Piece Cable tie
3 Piece Rubber Band
4 Piece Wipe Papers

Note:

1. Please allow slightly error due to manual measurement.
2. Due to the difference between different monitors, the picture may not reflect the actual color of the item.
3. Wish you a wonderful on-line shopping!
