SPECIFICATIONS

Accessory Type: Sensor

Laser Type: Fiber Laser,Green -dot/Line

MTBF: >8000 h

Main material: aluminum

Output powe: 1000mw

Power: 1

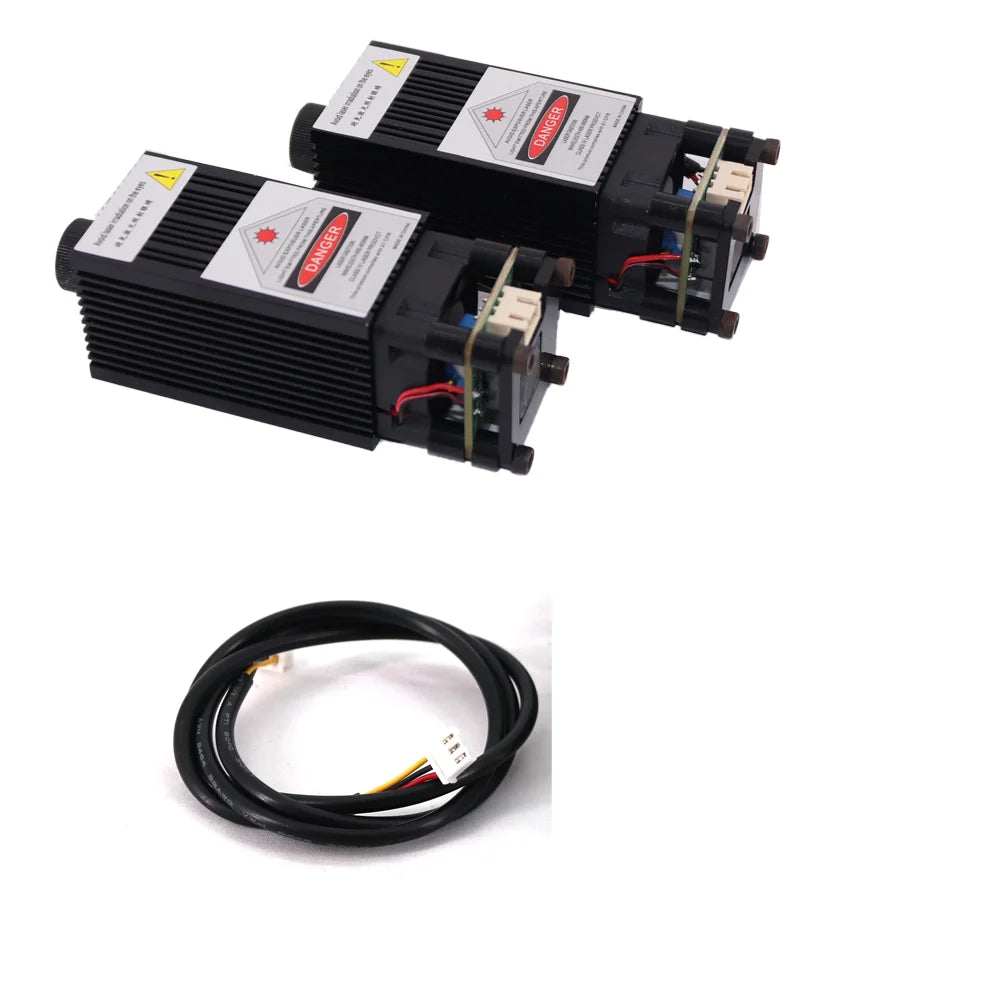

Product name: EMCH5201W-A04

Size: 33mm x 33mm x 100mm

Spot size: Adjustable

Voltage: DC12V

Wavelength: 515-540 nm

Working temp: -25℃~+60℃

brand name: EMC

condition: New

key selling points: The pattern can be customized

place of origin: Guangdong, China

spare parts type: High precision industrial equipment parts

warranty: 1 Year

wavelength: 520nm

weight (kg): 0.01

Product Description

	*Product parameters:*	*currently allocated*	*Settable scheme*
1	model:	EMC5201W-04	According to customization requirements
2	Overall dimensions:	33mm x 33mm x 100mm	According to customization requirements
3	texture of material:	aluminum	Copper, aluminum, steel, PC.ABS, etc
4	surface treatment:	Anodic treatment	According to customization requirements
5	service life:	>8000H	According to customization requirements
6	Output wavelength:	520nm	400nm-980nm optional
7	output power:	1000mw	0.5mw-500mw optional, consult customer service
8	Linethickness At 1m (FWHM)	Adjustable	According to customization requirements

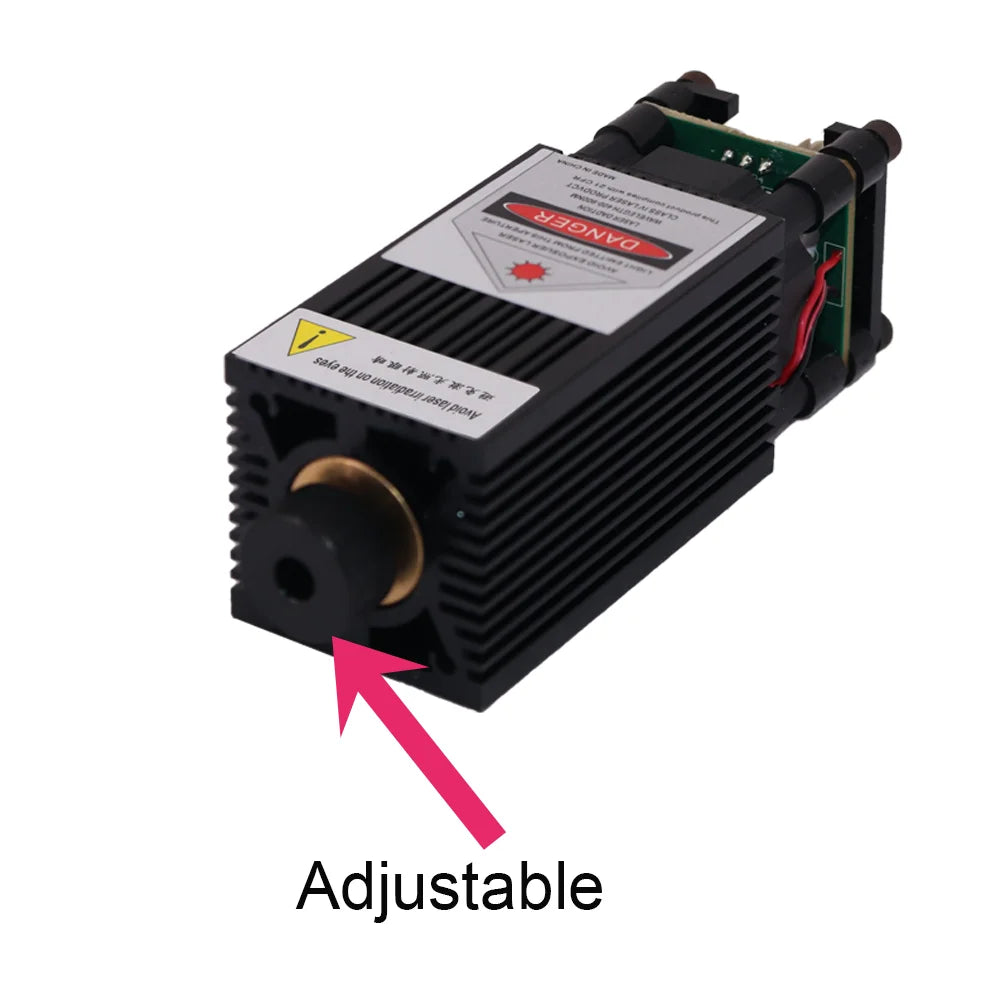

9	Adjustable light spot:	yes	According to customization requirements
11	Spot mode:	dot/lines	Dots, lines, crosshairs and other patterns
12	Line Span Angle (Fan Angle)	110deg	5-110deg
13	drive circuit:	ACC Constant current control	ACC.APC.TTL can be customized
14	working voltage:	12V	12V-24V customizable
15	Maximum operating current:	<1000ma	Current is proportional to light power
16	FM mode:	Continuous work	According to customization requirements
17	wireway:	UL1571 26#	Different wires and terminal wires can be customized
18	working temperature:	-10℃-+50℃	Depending on laser diode
19	Storage temperature:	-30℃-+80℃	Depending on laser diode
