SPECIFICATIONS

15MP pixels: 5MP Lens + 5MP Lens + 5MP Lens

3 PTZ Rotation: APP Operation

AI Functions: Motion Detection

APP: O-KAM Pro

Alarm Type: Local Alarm

App name: other

Audio Output: Two Way Audio

Brand Name: LS VISION

Certification: CE

Cloud Storage: Pay to use

Color: black

Color Night Vision: Yes

Connectivity: WIFI(2.4GHz)

Dimensions (L x W x D)(mm): Three Screens PTZ Camera

Feature 1: Two-way Audio

Feature 2: Human Detection

Feature 3: Automatic Tracking

Feature 4: Motion Detection

Feature 5: Real-time Alert

High Definition: 12.0 Megapixels

Hign-concerned Chemical: None

IP Rating: IP66

IR Distance(m): Up to 30M

Installation: Side,Normal,Wall Mounted,Vertical Pole Mount

Internal Storage: None

LAN connection: Works with RJ-45 netport

Lens (mm): 4mm,12mm

Lens Quantity: Tri-Lens

Megapixels: 15mp

Minimum Illumination(Lux): 0.01LUX

Model Number: LS-WL310

Movement Range(Pan): 0°-360°

Movement Range(Tilt): other

Operating Temperature: -20~+60 ℃

Optical Zoom: None

Origin: Mainland China

Power Consumption(W): 5W

Power Mode: Mains Electricity

Power Source: Mains Electricity

Power Supply: Normal

Power Supply(V): DC 12V

Rechargeable Battery: None

Scene: Indoor and outdoor

Scope of use: Outdoor / Indoor

Sensor: CMOS

Sensor Brand: SmartSens

Shell Material: Plastic

Smart home platform: None

Style: Dome Camera

Support TF Card Storage: Up to 256G

Supported Mobile Systems: Android,iOS

Supported Operating Systems: No

TF Card: None

Three Lens Design: Three Screens

Video Compression Format: H.264,H.265

Viewing Angle: 360 Degree Large range

Viewing Angle : 360°

WIFI connection: Works with 2.4G Wifi network

Zoom: None

Zoom type: None

is_customized: No

Specifications:

- Three Lens & Three sensors & Three screens design, allowing you to see more details;

- 15MP camera has an ultra wide angle+10x optical zoom, achieving clear monitoring of far and near distances;

15MP Resolution: Pixels of each lens are 5MP, 5MP Lens + 5MP Lens + 5MP Lens = 15MP

-  Pan&Tilt: horizontal 0~355 degrees, vertical 0~90 degrees;
The left and right PTZ cameras support 270° pan rotation (electric) and 90° tilt adjustment (manual)

- Equipped with a high gain enhanced 5dBi antenna, your camera can receive a wider range of signals;

- Built in infrared LED and white LED, presenting clear and colorful day/night images for you;

- 3 image modes: smart mode/infrared mode/color mode,

   Infrared mode is infrared on mode. The image is black and white, the white LED is off

   Color mode: white LED lights up, day and night are color vision;

- 24/7 motion detection; Real time push to protect your family safety;
- Supports auto tracking;Please notice that only the middle lens support auto tracking, but the left ahd right lens do not support.

- Built in high-quality speakers and microphones for unobstructed two-way conversations;

- Echo suppression and cancellation and noise suppression technology, perfect full duplex voice effect;

- Supports 2.4GHz WiFi connection (does not support 5G WiFi); Support RJ-45 network cable connection;

- Real time image transmission, adaptive network;

- APP: O-KAM Pro

Packing List:

1x PTZ Camera/1x User Manual
1x Power Supply/1x Screw Bag


Note: This camera dose not support onvif to work with NVR or DVR. PC client is not supported.

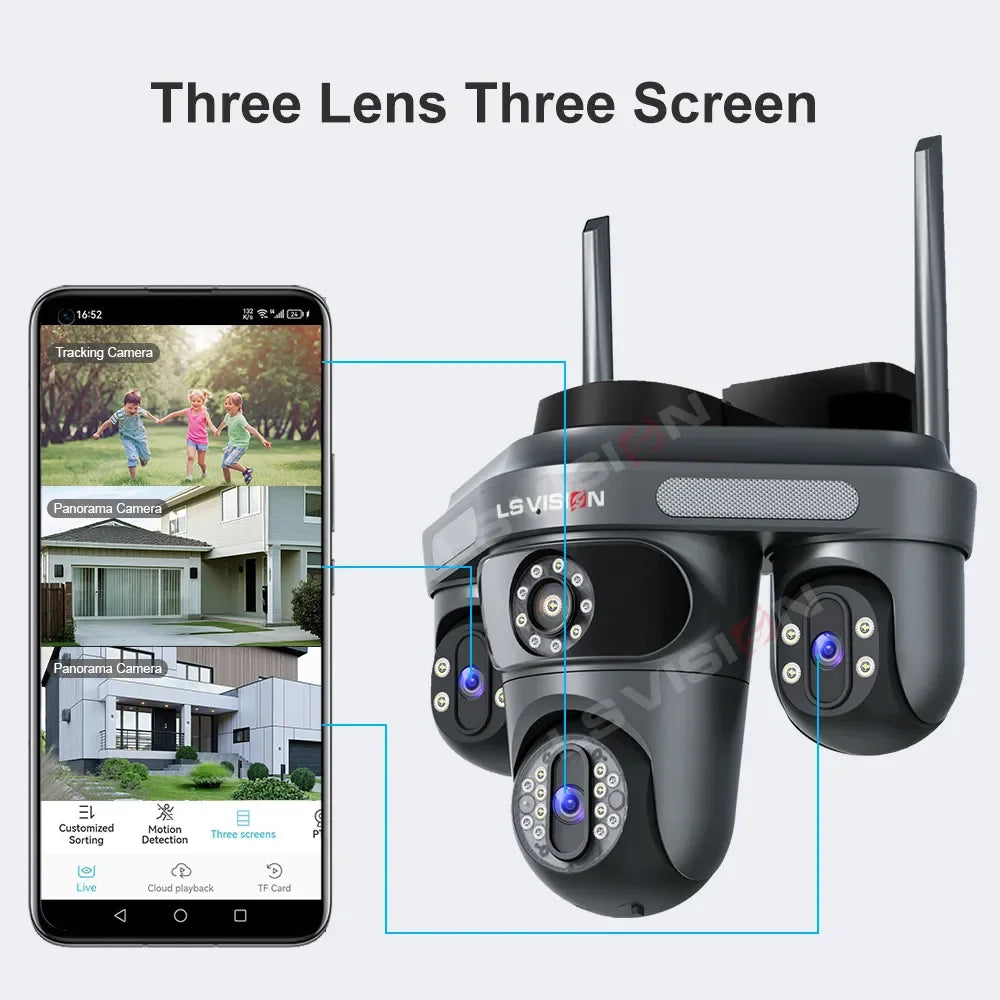

Three lens & Three screen design

* This cctv camera achieves real-time monitoring of four images. The three images is three pan tit camera. You can remotely control the camera rotation on the mobile phone APP, but please note that the left and right cameras only support 270° pan rotation, while the middle camera supports 355° pan rotation and 90° vertical rotation.

PTZ Control
* Pan&Tilt: horizontal 0~355 degrees, vertical 0~90 degrees;
The left and right PTZ cameras support 270° pan rotation (electric) and 90° tilt adjustment (manual).

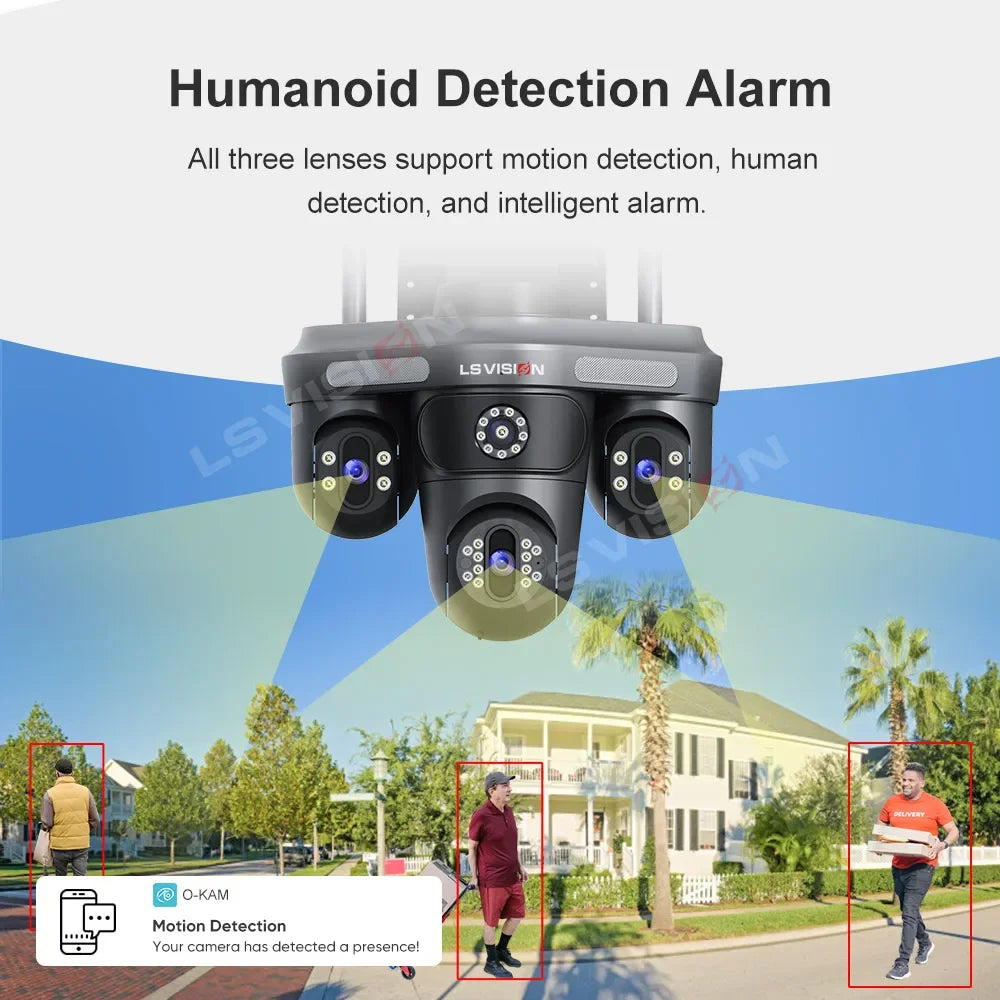

Humanoid Detection Alarm
* Three lenses will push alarm when they detect people. All support motion detection, human detection and inelligent.

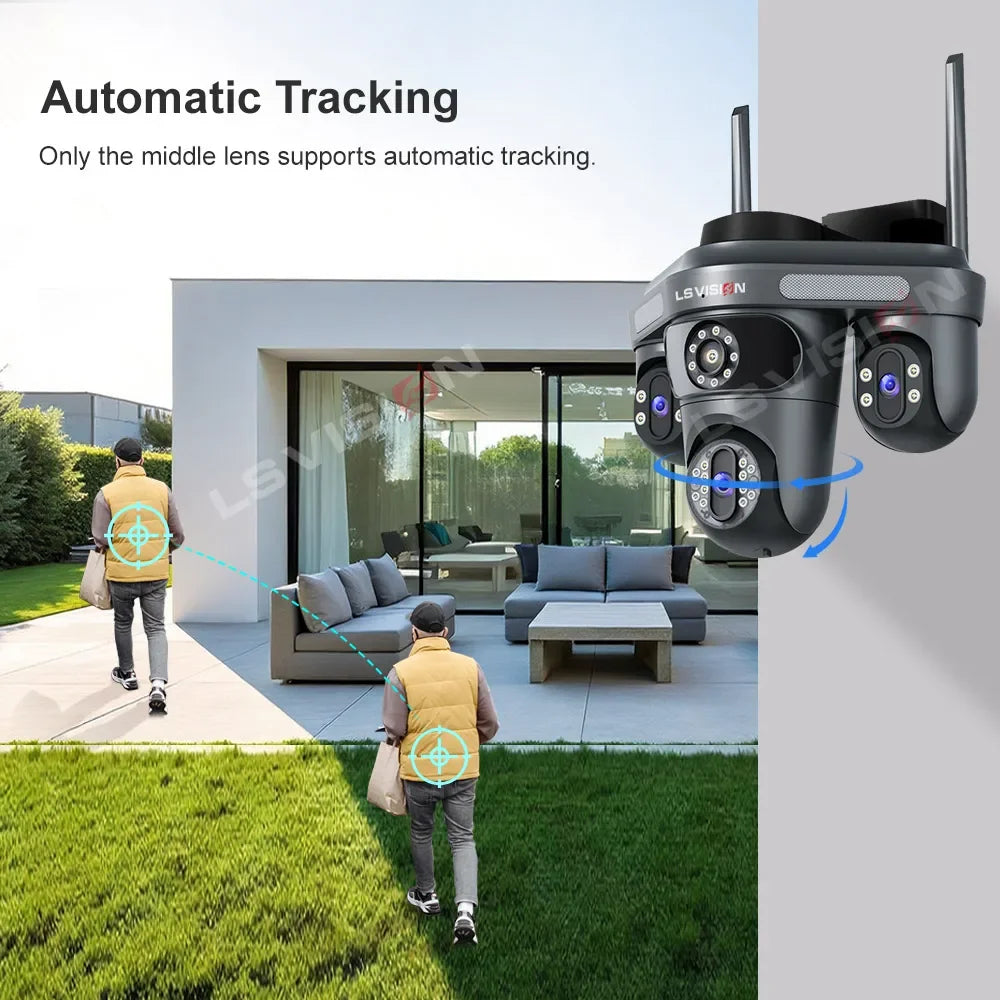

Automatic Tracking
* Pleases notice that only the middle camera supports auto tracking.The left and right camera do not support.

Flashing Light Alarm
* When the camera detects a moving object, the white light will automatically flash to give an alarm.

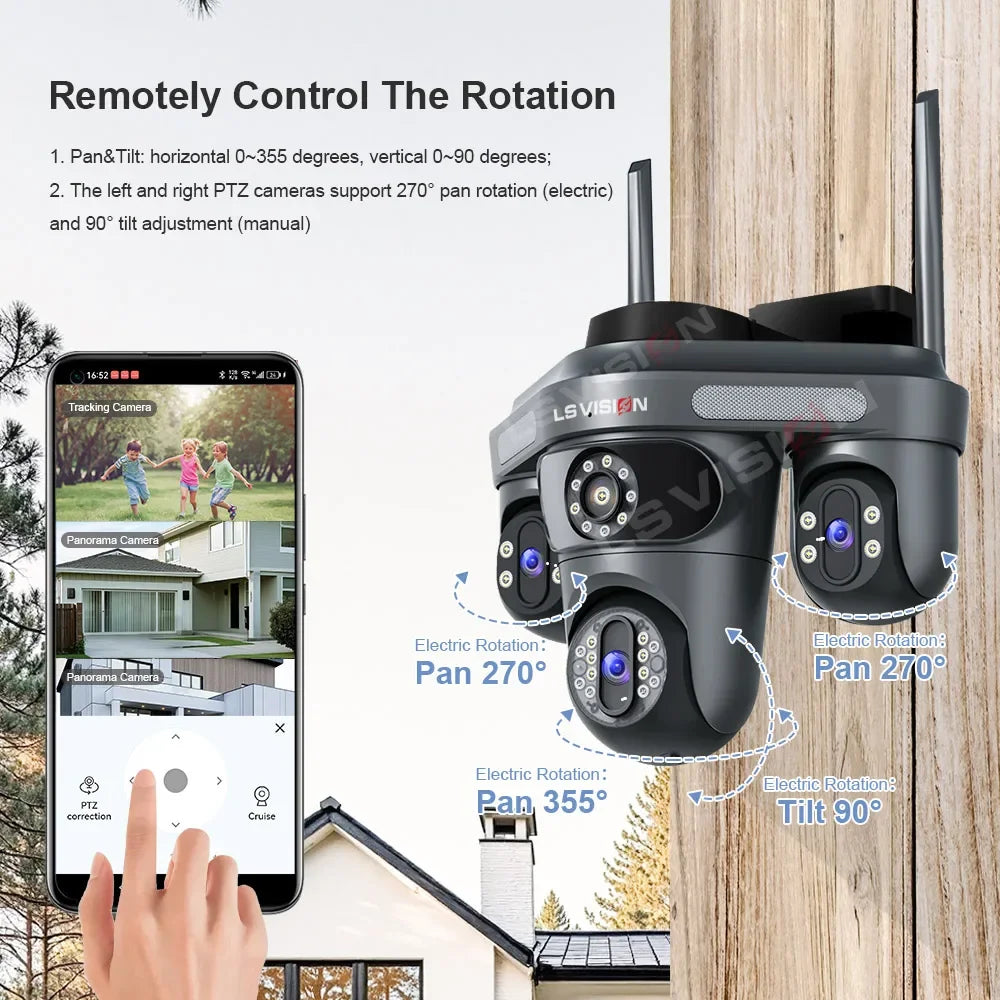

Remote Control the Rotation
* You can remotely control the camera rotation on the mobile phone APP, but please note that the left and right cameras only support 270° pan rotation, while the middle camera supports 355° pan rotation and 90° vertical rotation.

Various Installation Methods

*Camera supports side mounting and ceiling mounting, you can install it according to your needs.

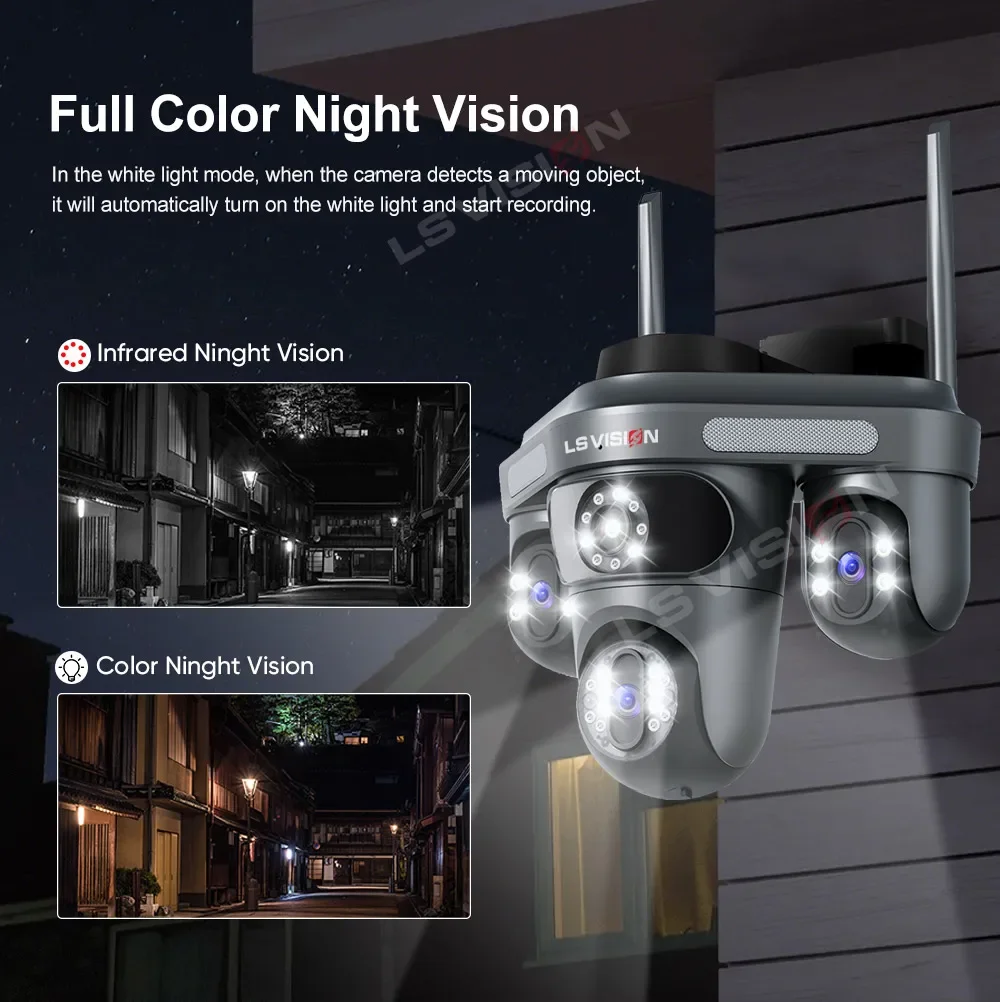

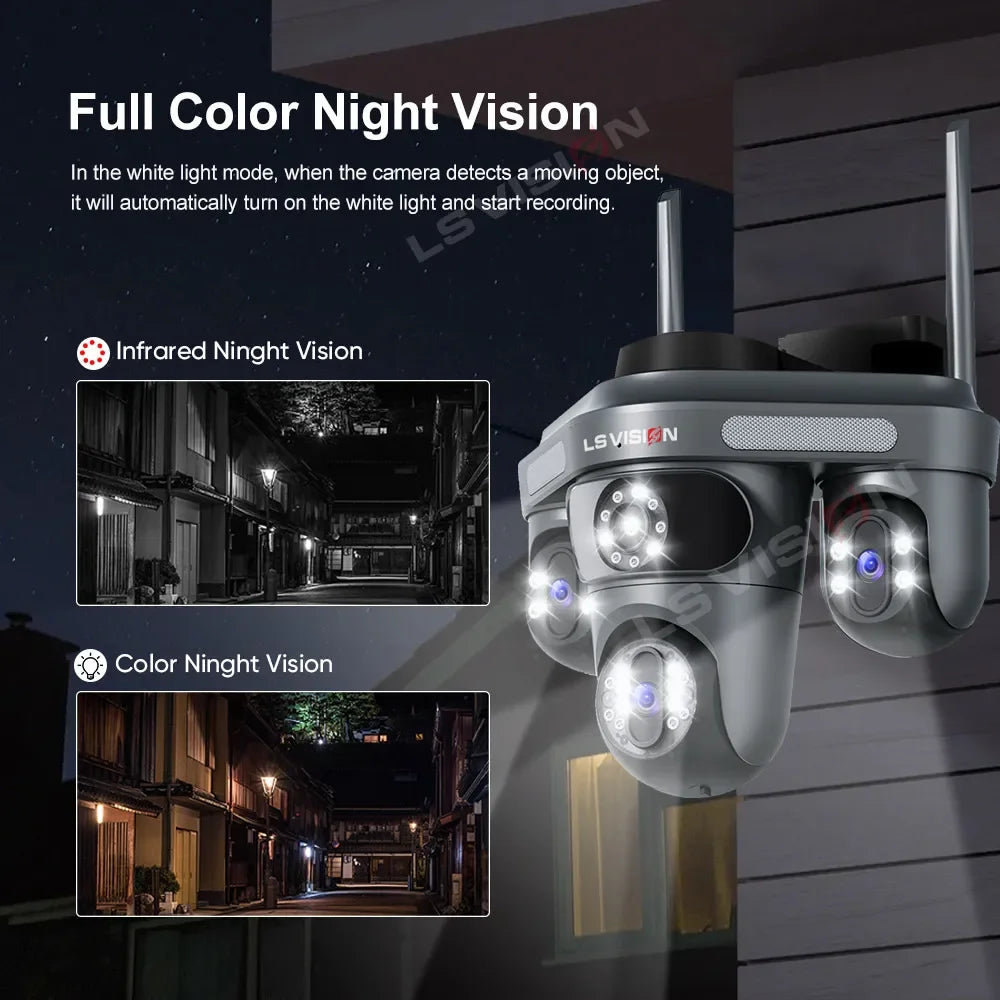

Clear Night Vision CCTV Camera

* Equipped with IR-Cut led lights, up to 30 meters night vision distance, so that you can get high quality video even at night.
* The smart IR-Cut filter switches automatically between day and night.

Two Way Audio CCTV Camera

* Built in microphone and speaker,support real time video,which allows you talk with your visitor in real time wherever you are.
Preset Point Settings
* Set a preset point for different monitoring directions, just click to retrun to the dirction of setting the preset point.

Support Bluetooth Quick Network Configuration

Support Wifi Connection or Network Cable Connection

IP66 Waterproof Video Surveillance

Support Gourp Sharing

* You can share the cctv account with family members. it is interesting to share good scenes with family members and friends in real time, multiple users function can fulfill your wish.

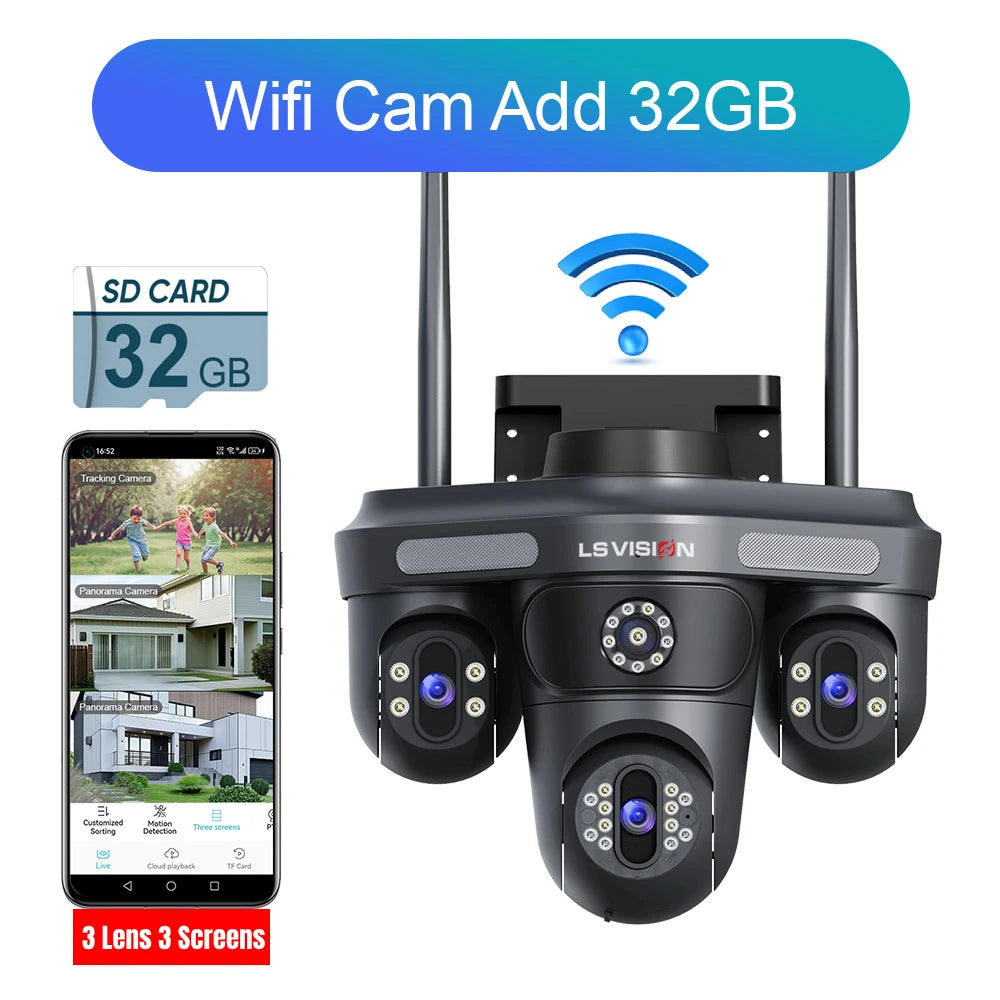

Support SD card & Cloud Storage(Need to pay)

* Insert a TF card up to 256 GB (TF can be selected as needed) helps you save the video you are not willing to delete.

Product Details:
