Miniature High-Power 15/20 Amp Solid State Relay 0-10V Sealed Protection Single Phase 10VDC/220VAC 5V Model SSR for Switching
Miniature High-Power 15/20 Amp Solid State Relay 0-10V Sealed Protection Single Phase 10VDC/220VAC 5V Model SSR for Switching
$17.68
Color
Rated Voltage

Reliable shipping

Flexible returns

SPECIFICATIONS

Ambient temperature: -30 ~+75℃

Brand Name: FCGK

Contact Form: 1NC

Contact Load: High Power

Control Voltage: 0-10VDC

Control current: DC 1-10mA

Dlelectric Stength: 2500VAC

Insulation Resistance: 1000MΩ

Load Current: 10-120A

Load Voltage: 0-250VAC

Max. switching current: 100 A

Max. switching voltage: 240 V

Model Number: FCGT1-F25VD25

Off Leakage Current: ≤2mA

On Voltage: ≤1.5V

On-off Time: ≤10mS

Place of Origin: Zhejiang, China

Power Source: AC/DC

Protect Feature: Sealed

Rated Current: 120 A

Size: Miniature

Terminal Shape: Screw Terminal

Theory: Solid State Relay

application: General Purpose

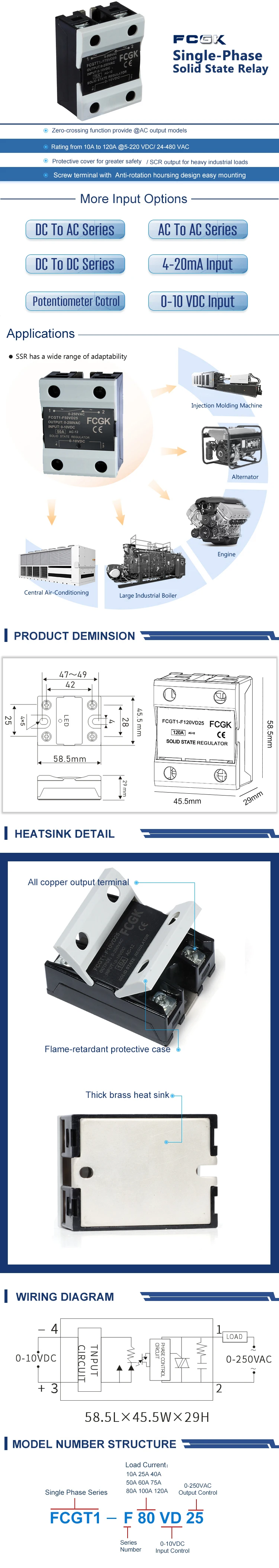

Technical Data
Technical Data

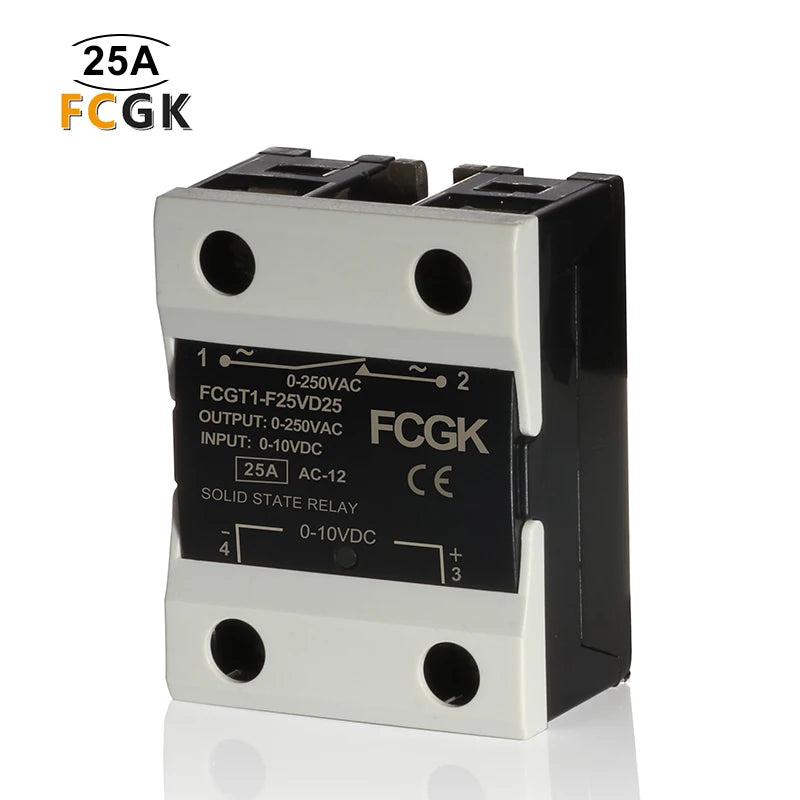

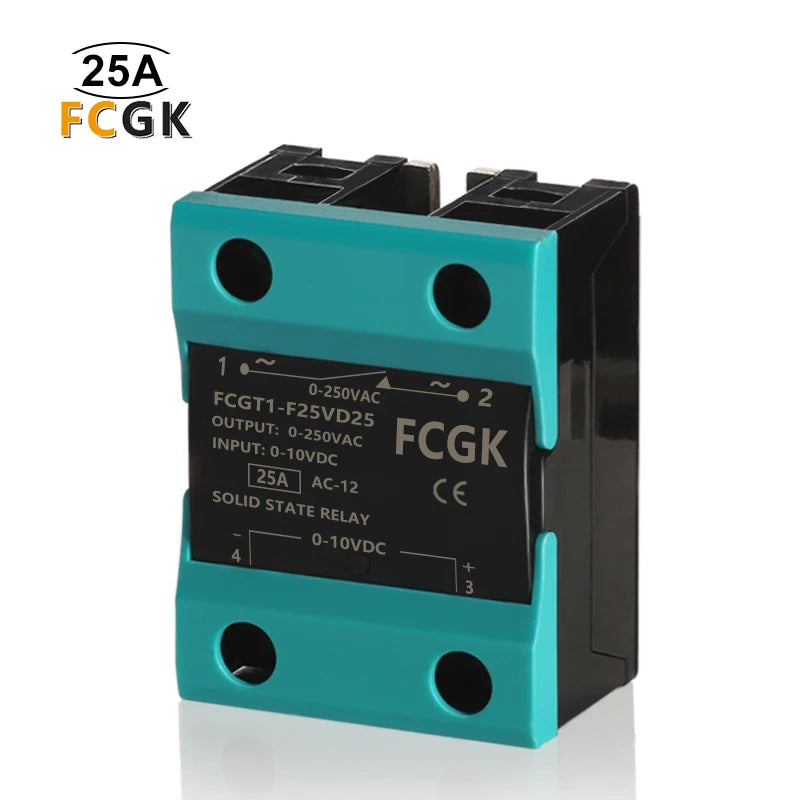

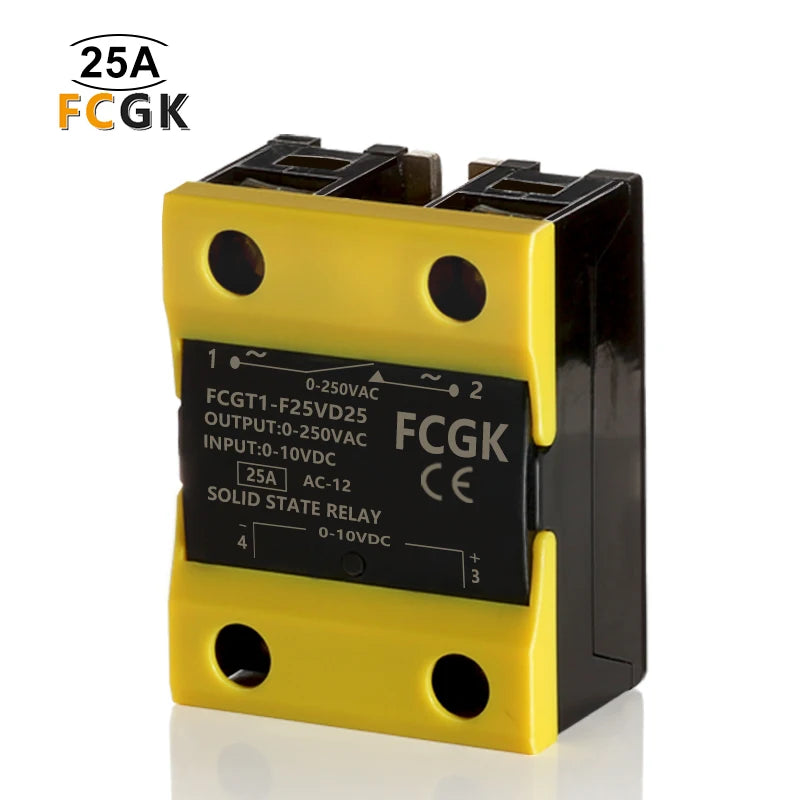

Model: FCGT1-F25VD25
Load Current: 25A
Load Voltage: 0-250 VAVC
Control Voltage: 0-10 VDC
Control Current: DC 3-25mA
On Voltage: ≤1.5V
Off Leakage Current: ≤2 mA
On-off Time: ≤ 10mS
Dielectric Strength:  2500VAC
Insulation Resistance : 1000MΩ/500VDC
Ambient Temperature:  -30~+75°c
Mounting Methods:  Screw bolt
Indicator: Indicating light
Weight:  80g

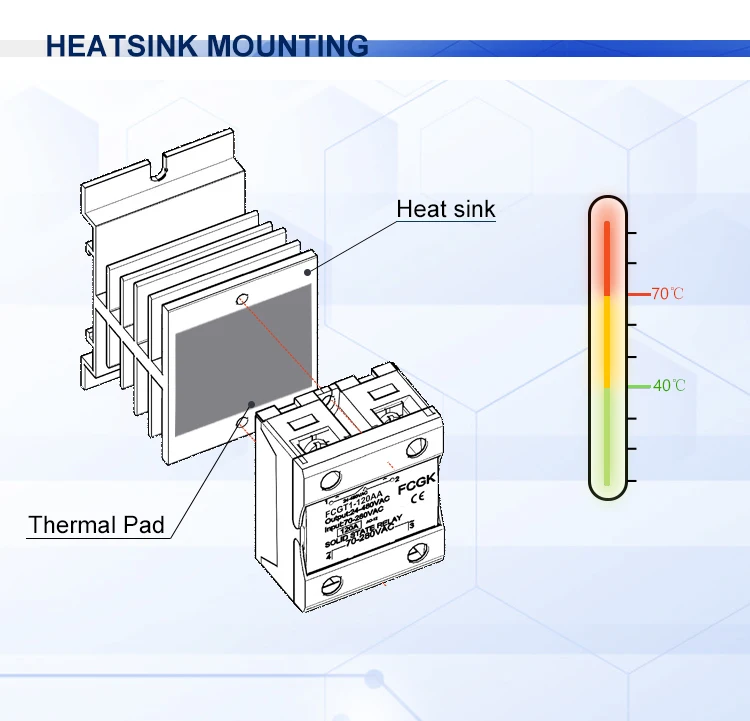

Heat-sink Selection

Heatsink -1

Company Information


FAQ

Q:How and how long can I get a sample to check your quality?

A: After price confirmation, you can require for samples to check our quality. Then after you send us confirmed files, the samples will be ready for delivery in 7 days. The samples will be sent to you via express and arrive in 5-7 workdays.



Q:How to order our product ?

A: 1).Please tell us the model and quantity and other request you need.

2).We make the PI for you.

3).After you confirm the PI, we arrange the order for you after receiving your payment.

4).After the goods finished, we send the goods out to you and tell you the tracking number.

5).We will track your goods until you receive the goods.



Q: Can I have a visit to your factory before the order?

A: welcome! Our factory address: Beibaixiang Industrial Zone, Yueqing, Wenzhou, Zhejiang, China



Q: What's your shipment method?

A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.



Q: What's about MOQ?

A: First order MOQ=1pcs



Q: If i want to release order, what's the payment method you accept ?

A: We accept T/T, Paypal, Western union, L/C,etc.



Q: If i want to release order, what's the process?

A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
