MSI Ventus GeForce RTX 5060 Ti 8GB GDDR7 PCI Express 5.0 X 16 (use X8) Graphics Card RTX 5060 Ti 8G VENTUS 2X OC PLUS

$1,030.99

video memory capacity 8 GB

gpu model GeForce RTX 5060 Ti 8G SHADOW 2X OC PLUS 1 GeForce RTX 5060 Ti 8G VENTUS 3X OC GeForce RTX 5060 Ti 8G SHADOW 2X OC PLUS GeForce RTX 5060 Ti 8G INSPIRE 2X OC

Reliable shipping

Flexible returns

SPECIFICATIONS

Card Bus: PCI Express 5.0 X 16

Card size: 227 x 126 x 41 mm

Core Clock: 2602 MHz

MODEL NAME: GeForce RTX 5060 Ti 8G VENTUS 2X OC PLUS

Memory Bus: 128 Bit

Memory Clock: 28 Gbps

Memory Size: 8 GB

Multi-view: 4

Output Interface Type: support HDMI input,DP

Power Connectors: 1 x 16-pin

Recommended PSU: 600W

application: Workstation,Desktop

brand name: MSI

chip process: 4 nanometers

chipset manufacturer: nVIDI,A

cooler type: Fan

core clock(mhz): 2602 MHz

directx: DirectX 12

interface type: PCI EXPRESS

item condition: MXM

memory clock(mhz): 28 Gbps

memory interface: 128 Bit

outputs: Displayport

place of origin: Guangdong, China

private mold: Yes

products status: New

video memory speed: 1ns

video memory type: GDDR7

Product Description

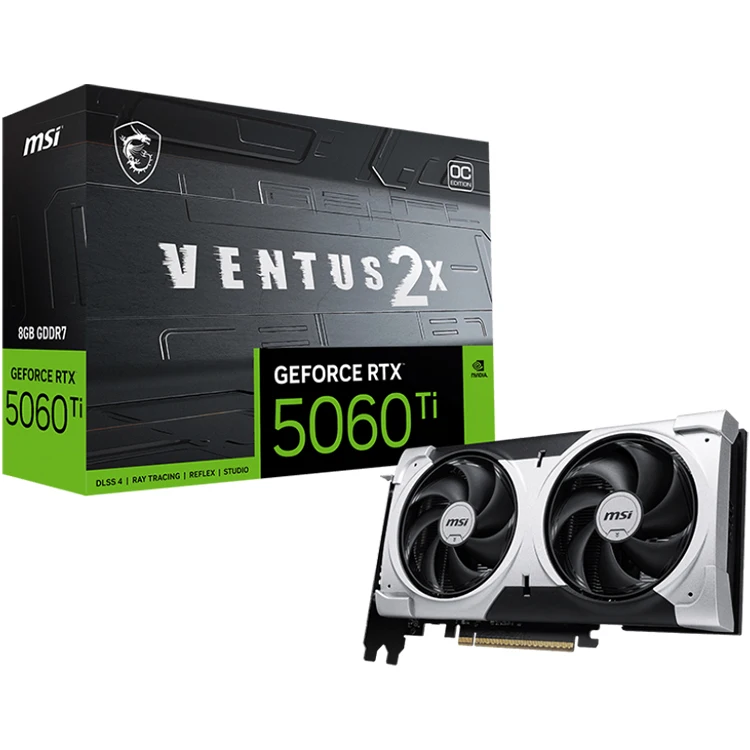

MSI Ventus GeForce RTX 5060 Ti 8GB GDDR7 PCI Express 5.0 X 16 (use X8) Graphics Card RTX 5060 Ti 8G VENTUS 2X OC PLUS

Powered by the NVIDI,A Blackwell architecture and DLSS 4
Core Clock:
Extreme Performance: 2617 MHz (MSI Center)
Boost: 2602 MHz

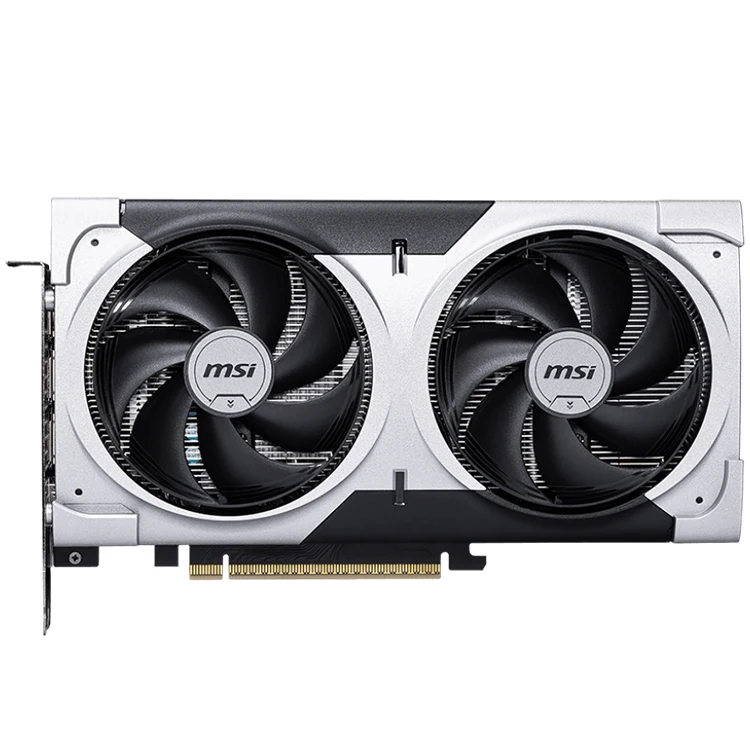

STORMFORCE FAN: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
Heat Pipes designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.

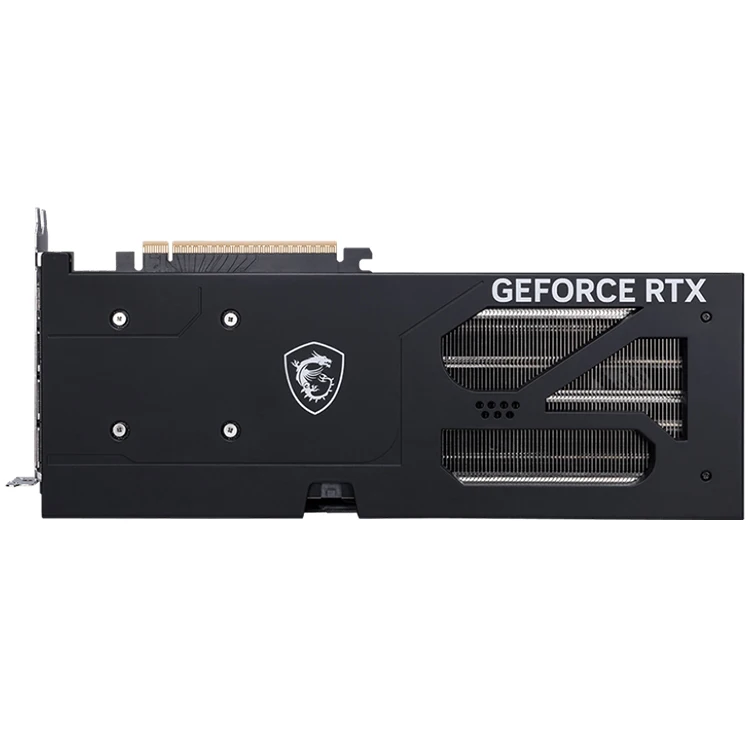

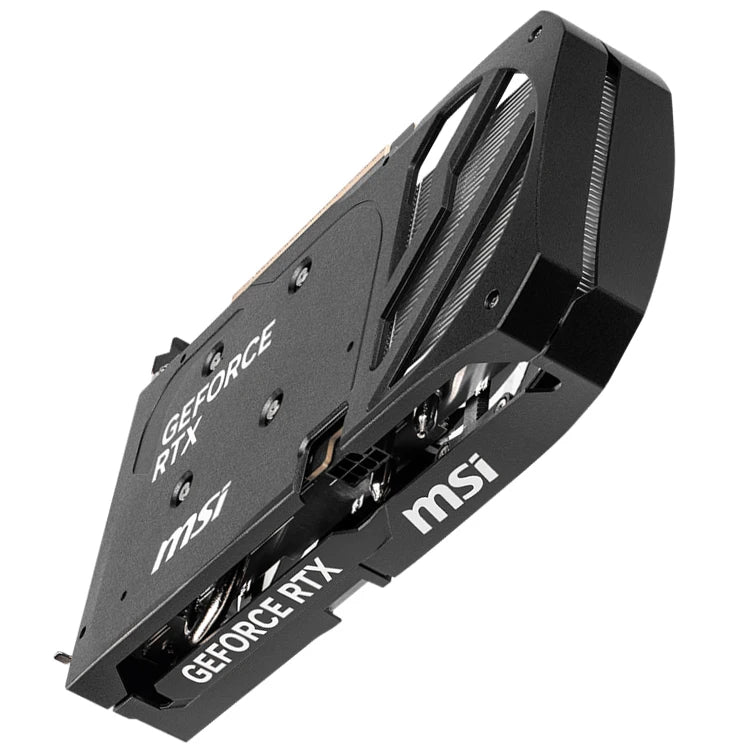

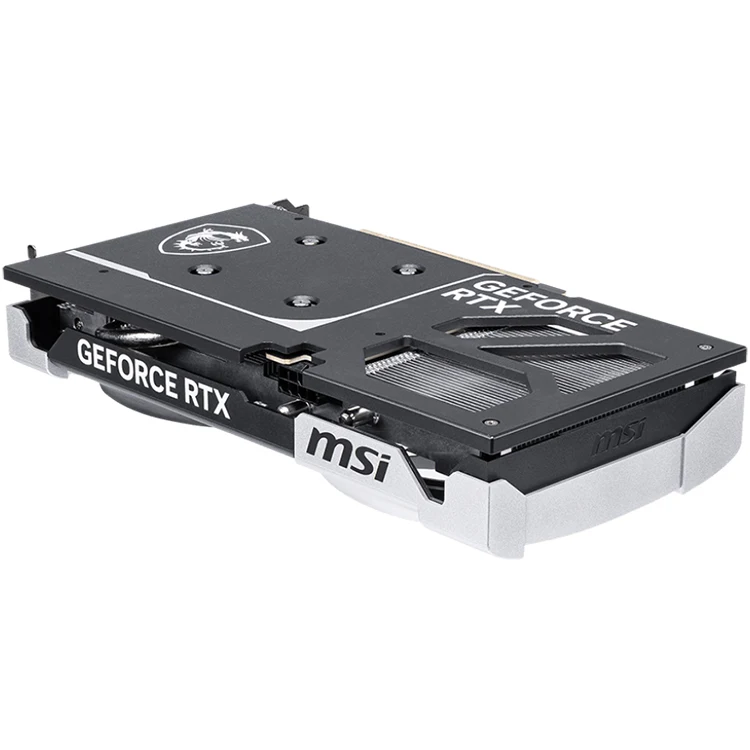

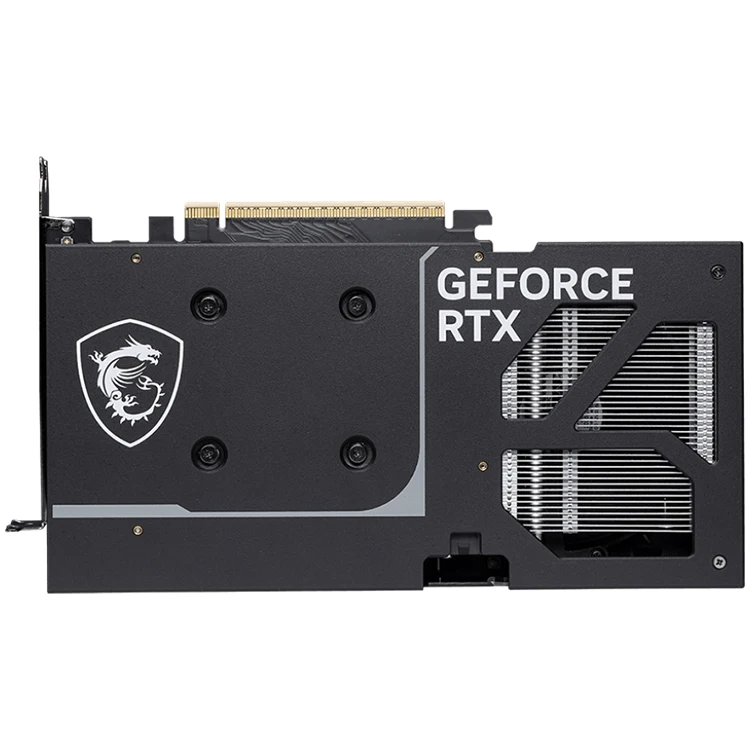

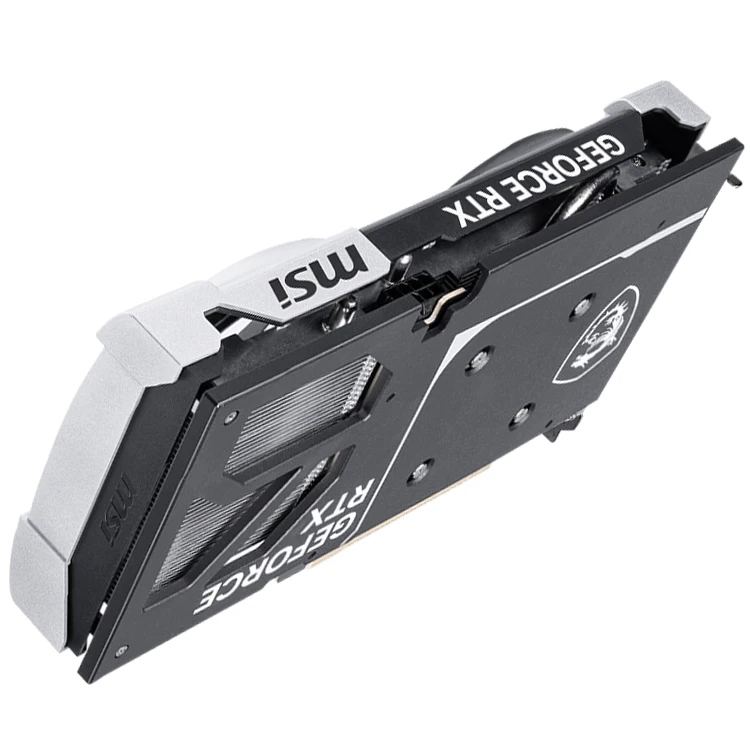

Reinforcing Backplate: The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through.
MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.

Marketing Name	GeForce RTX™ 5060 Ti 8G VENTUS 2X OC PLUS
Model Name	G506T-8V2CP
Graphics Processing Unit	NVIDI,A® GeForce RTX™ 5060 Ti
Interface	PCI Express® Gen 5 x16 (uses x8)
Core Clocks	Extreme Performance: 2617 MHz (MSI Center) Boost: 2602 MHz
CUDA® CORES	4608 Units
Memory Speed	28 Gbps
Memory	8GB GDDR7
Memory Bus	128-bit

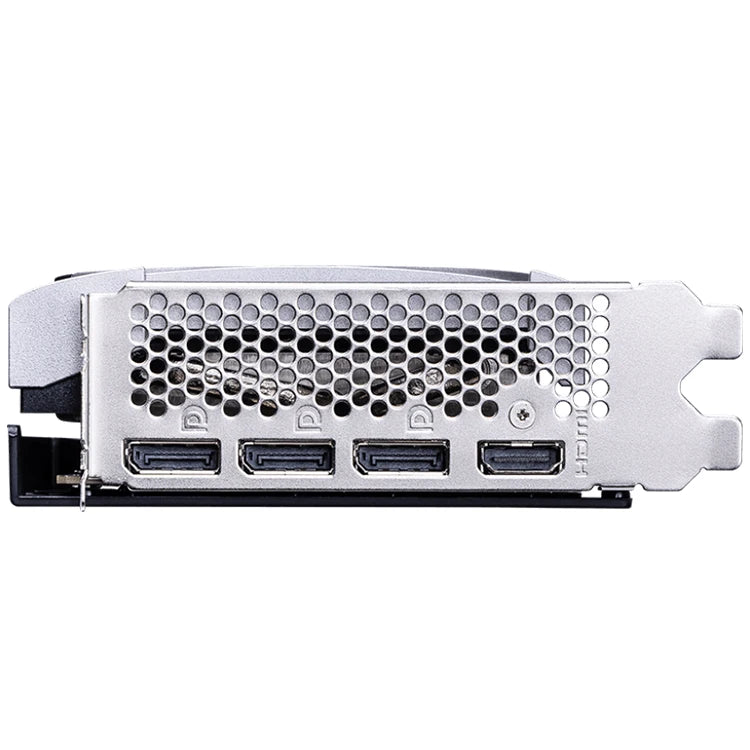

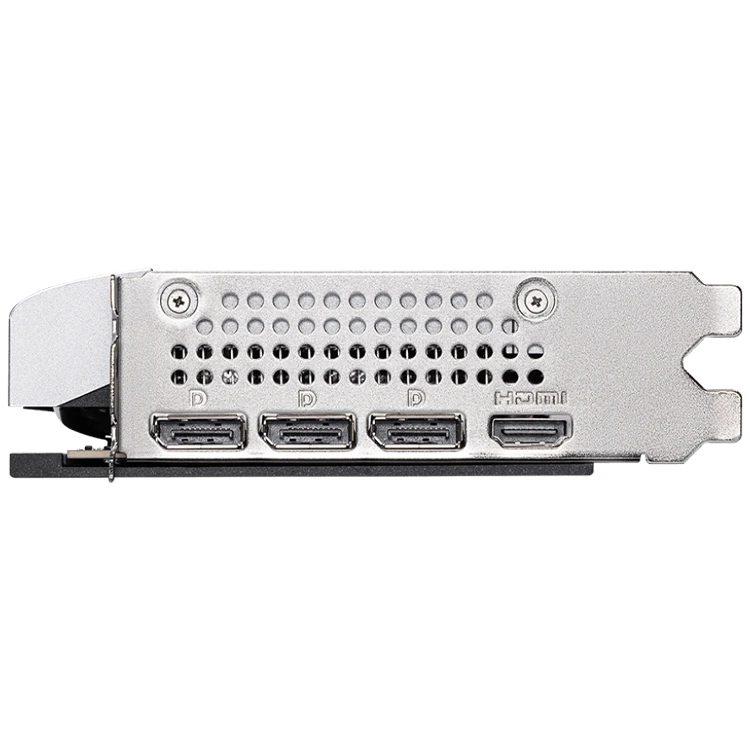

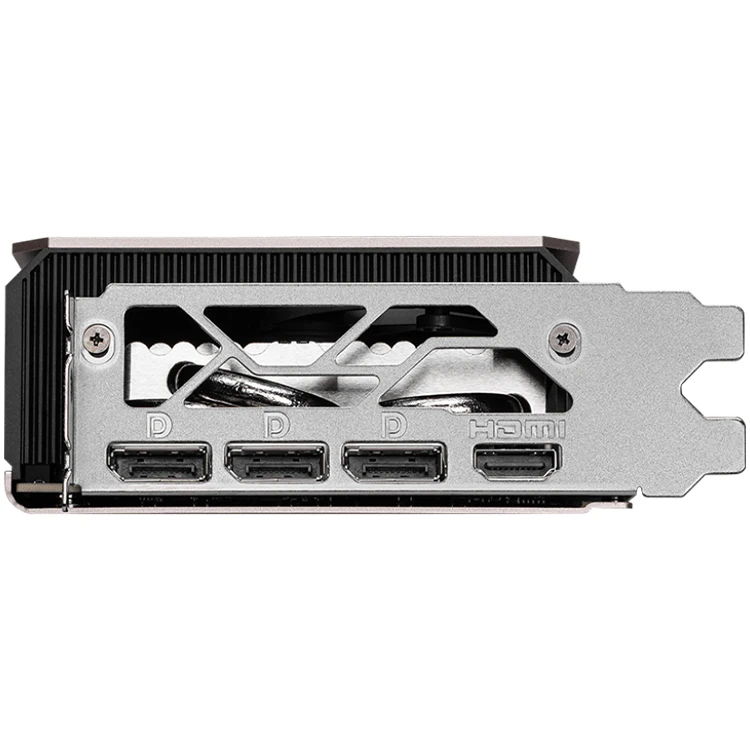

Output	DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support	Y
Power consumption	180 W
Power connectors	8-pin x1
Recommended PSU	600 W
Card Dimension (mm)	227 x 126 x 41 mm
Weight (Card / Package)	573 g / 834 g
DirectX Version Support	12 Ultimate
OpenGL Version Support	4.6
Maximum Displays	4
G-SYNC® technology	Y
Digital Maximum Resolution	7680 x 4320

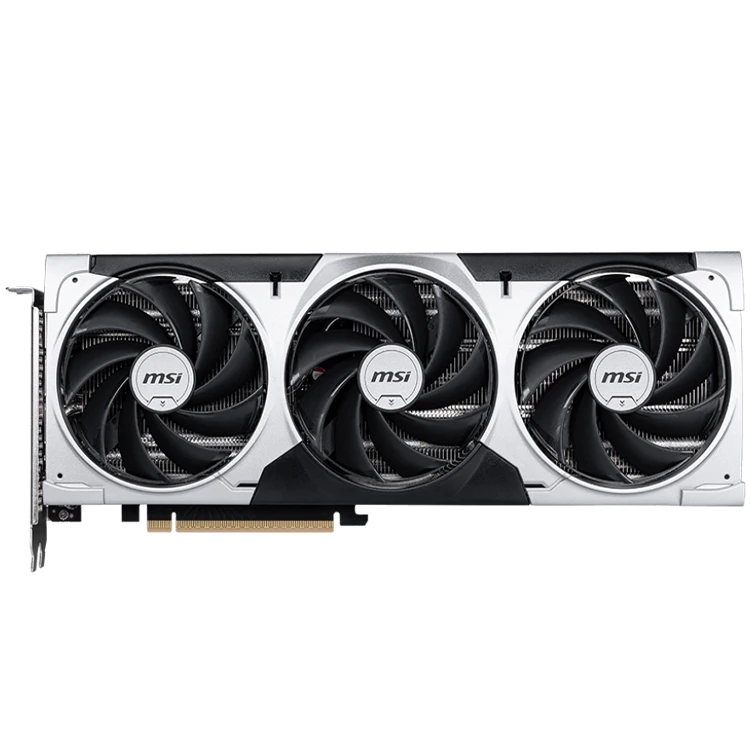

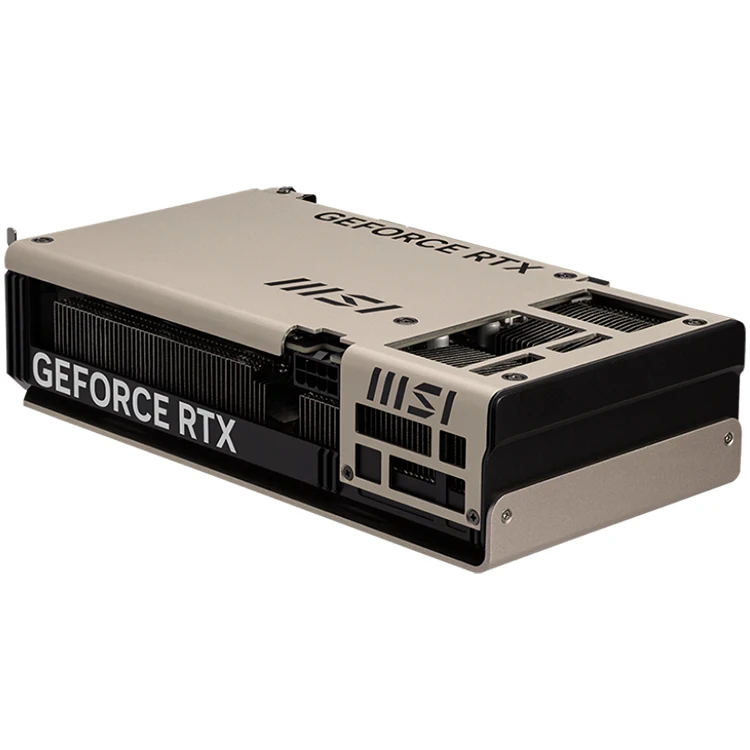

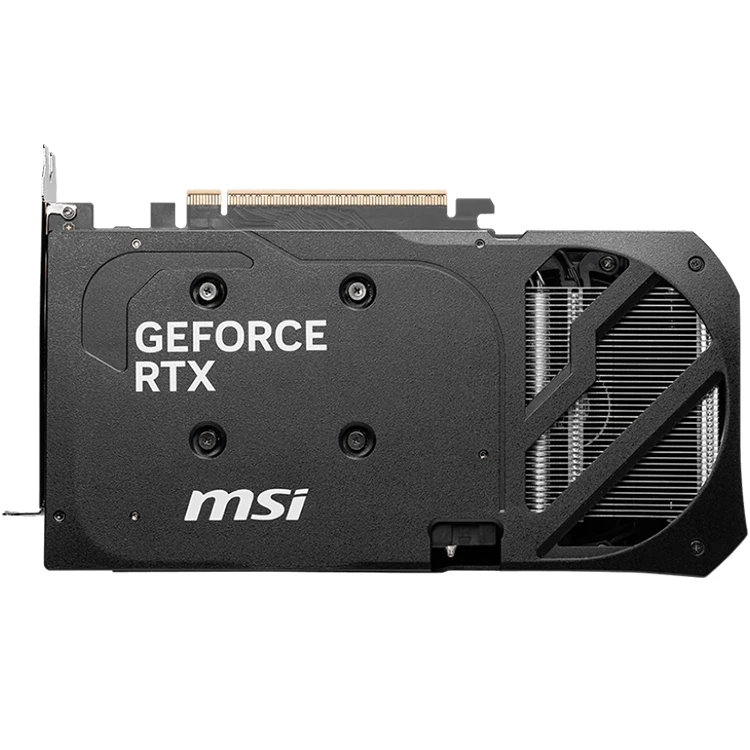

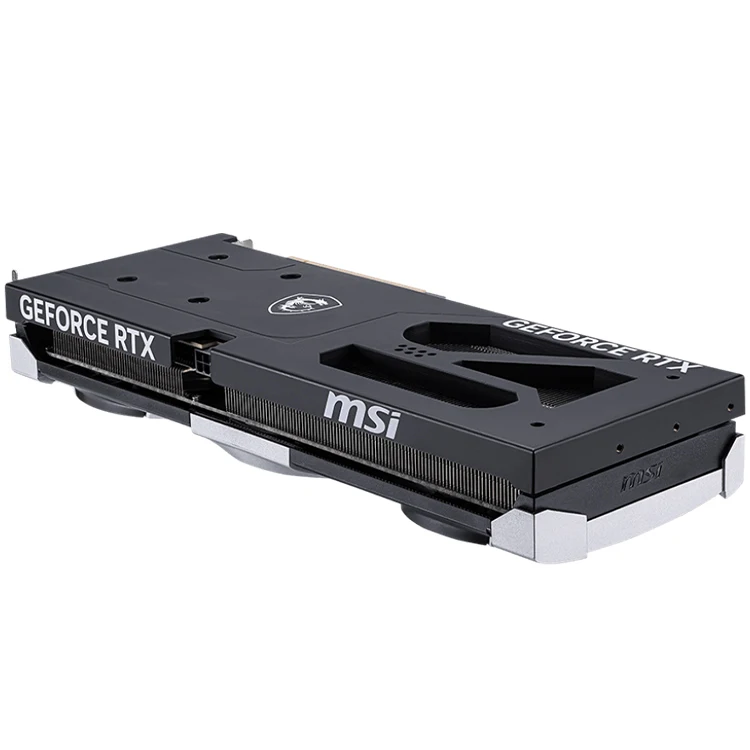

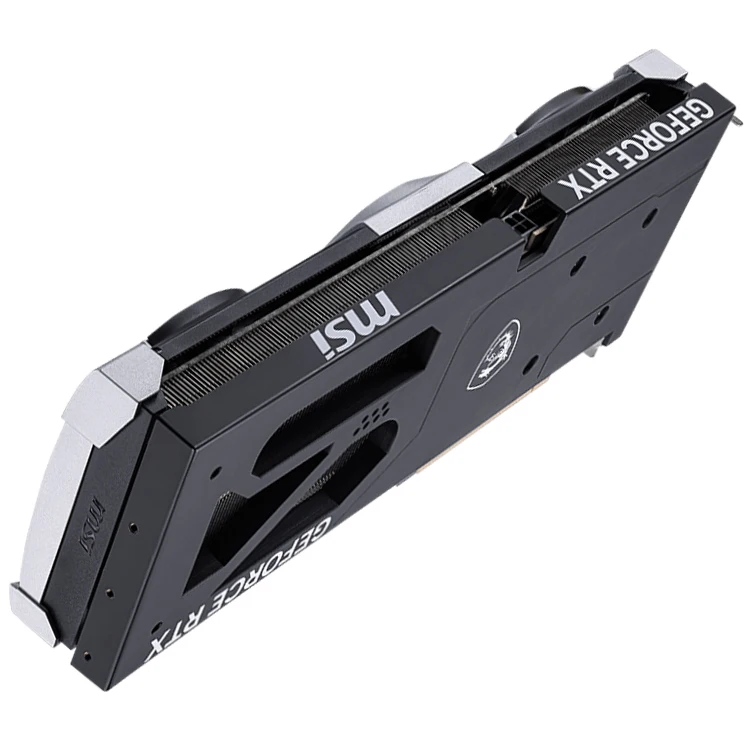

5060 Ti VENTUS 2X 01 - .jpg 5060 Ti VENTUS 2X 02 - .jpg 5060 Ti VENTUS 2X 03 - .jpg 5060 Ti VENTUS 2X 04 - .jpg 5060 Ti VENTUS 2X 05 - .jpg 5060 Ti VENTUS 2X 06 - .jpg 5060 Ti VENTUS 3X 01.jpg 5060 Ti VENTUS 3X 02.jpg 5060 Ti VENTUS 3X 03.jpg 5060 Ti VENTUS 3X 04.jpg 5060 Ti VENTUS 3X 05.jpg 5060 Ti VENTUS 3X 06.jpg 5060 Ti SHADOW 01.jpg 5060 Ti SHADOW 02.jpg 5060 Ti SHADOW 03.jpg 5060 Ti SHADOW 04.jpg 5060 Ti INSPIRE 01.jpg 5060 Ti INSPIRE 02.jpg 5060 Ti INSPIRE 04.jpg 5060 Ti INSPIRE 06.jpg
