SPECIFICATIONS

Brand Name: SZGOING

Customized support: OEM, ODM

Data Storage Options: Cloud,Memory Card

Function: Waterproof / Weatherproof,Two-Way Audio,Pan-Tilt,Night Vision,Built-In Mic

IP Rating: IP65

Infrared: 30M

Lens: 3.6,3.6mm Lens

Material: Plastic

Model Number: Solar Battery Powered Ptz Ip Camera

Network: WiFi/4G

Outdoor: Waterproof IP66

Pixels: 5MP

Place of Origin: Guangdong, China

Power: Solar power

Resolution: 1080p

Sensor: CMOS

Software: UBOX

Special Features: Night Vision,Motion Detection,Waterproof / Weatherproof,Pan-Tilt,Two-Way Audio,Low Power,Solar -PAN-TILT

Style: PTZ Camera

Technology: Solar Battery Powered Ptz Ip Camera

Type: Solar Camera

Video Compression Format: H.265 solar camera

Viewing Angle: 360

Warranty: 2 Years

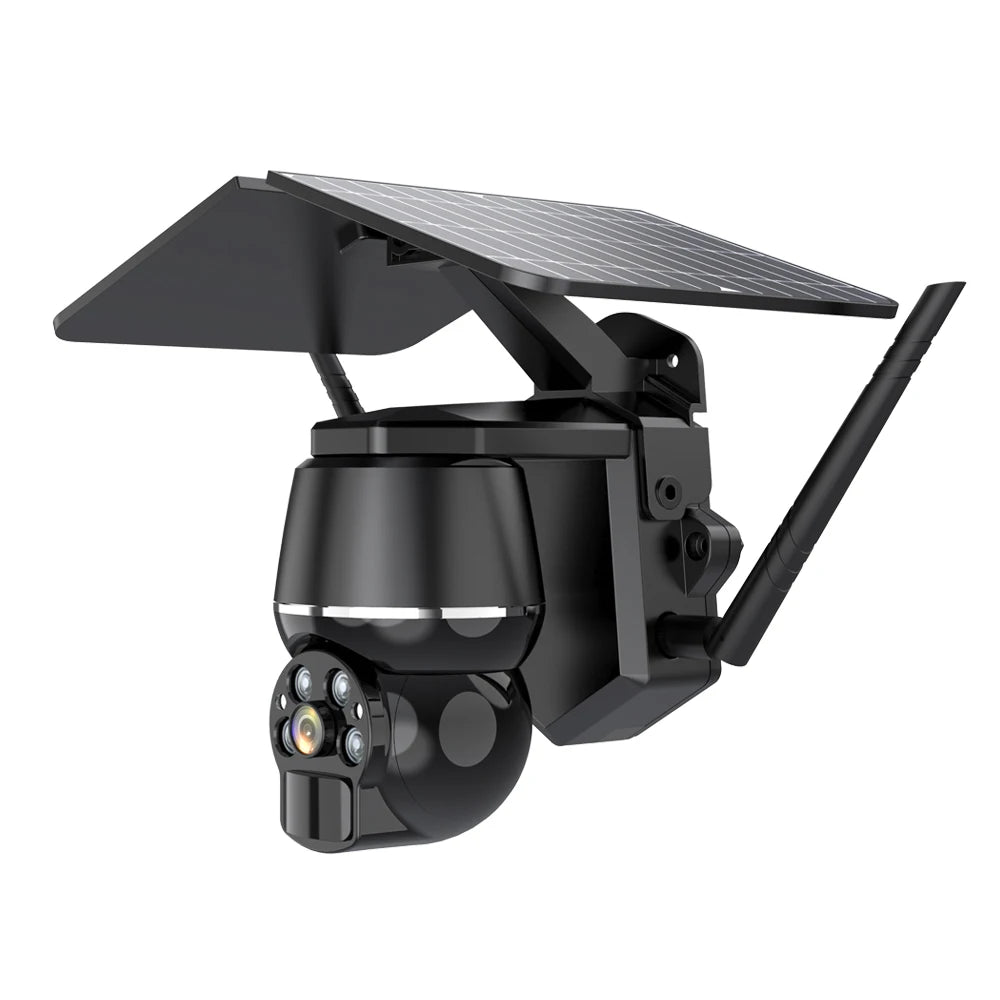

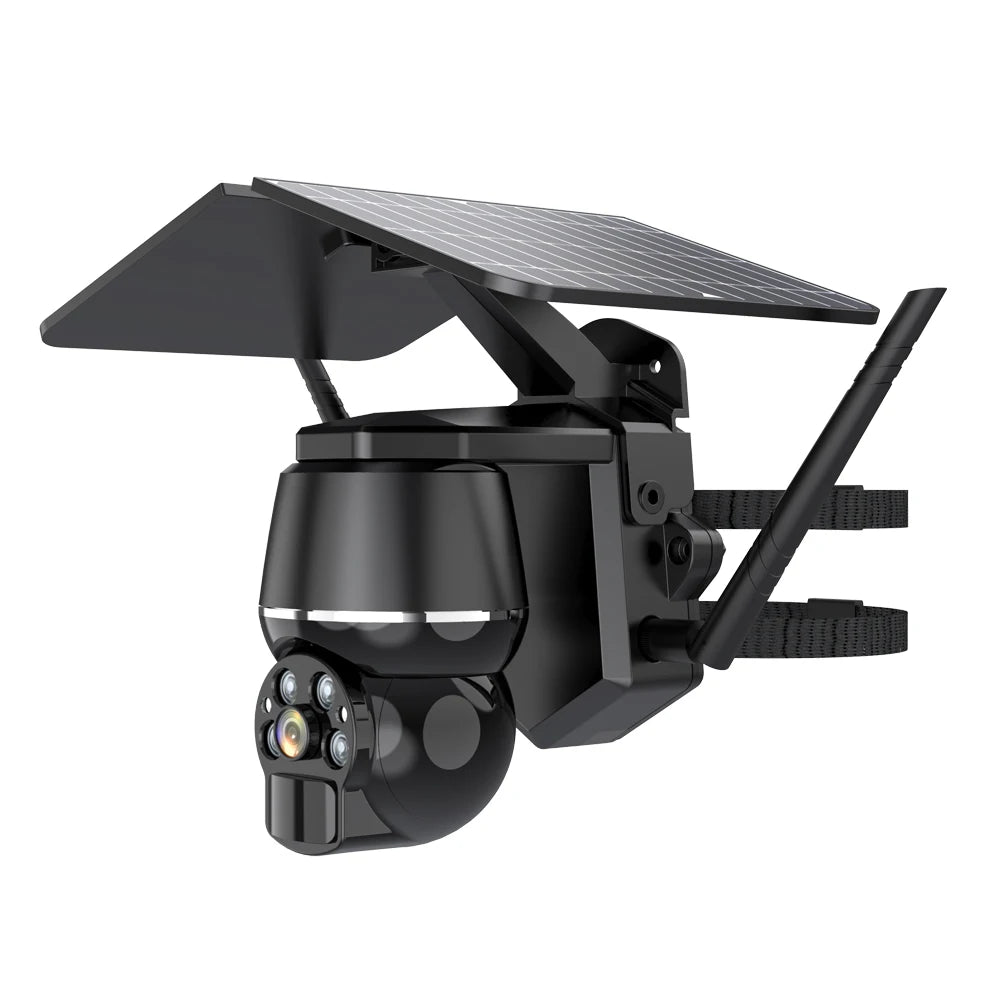

Dual panels solar ptz camera

SZGOING 3MP/5MP Solar camera WiFi/4G

Product Description

Model: GT-Q7-Black

*3MP/5MP solar ptz camera with 4X digital zoom

*6W (2pcs 3W) solar panel and 9600mAH Li battery,It can work at anywhere without power and internet,

connected by WIFI or 4G network.Easy to remote view it by app.

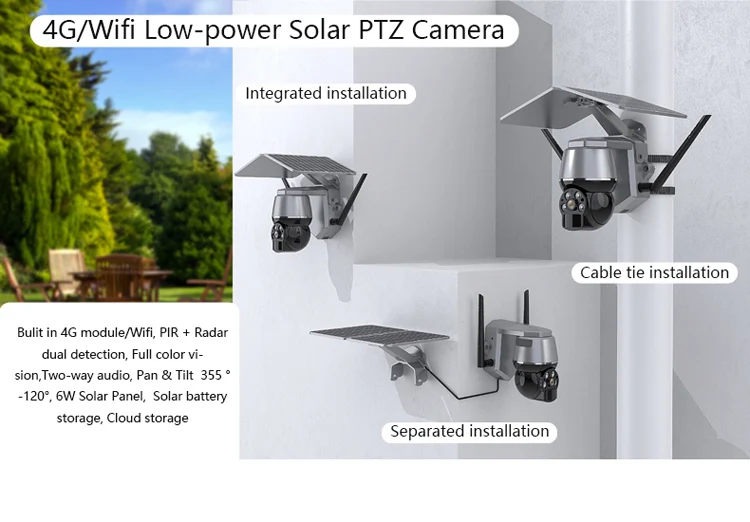

* it is easy installation design,It is easy to be installed on to a pole or wall.
*Solar camera is easy to connect,Just need connect solar plug.

*This solar camera support max 128G merroy,it can record to this memory card,And it supports cloud storage too.

*It has PIR motion sensor,When somebody near it,It will work,and push alarm message to APP if need.

Specification

Model：Q7			Version	Band	WiFi	4G
Network	Wireless WiFi frequency	2.4 GHz	IEEE802.11b, 802.11g, 802.11n Draft	Support	N/A
				5.0 GHz	N/A	N/A	N/A
		4G nano SIM card	Southeast Asia	B1/B3/B5/B8/B34/B38/B39/B40/B41	N/A	Support
				Australia	B1/B2/B3/B4/B5/B7/B8/B28/B40/B66	N/A	Support
				Japan	B1/B3/B8/B18/B19/B26	N/A	Support
				America	B2/B4/B5/B12/B13/B14/B25/B26/B41/B66/B71	N/A	Support
				Europe	B1/B3/B5/B7/B8/B20/B38/B40/B41	N/A	Support
Video	Master sensor	1080P	lngenic T31ZL+2063
				1440P	lngenic T31ZX+4653
		Resolution	Main stream: 1920x1080@15fps, Sub stream: 640x360@15fps
		Format	Compression format			H.265
				Video file format			MP4
		Lens	4mm F2.0 lens, Low lux., wide view angle: 120 degrees. 4X digital zoom
		Night vision	4pcs array infrared LEDs, night vision distance 30m. Full-colorful day/night
Audio	Compression	G.726/AAC. Audio code rate: 8Kbps, 16bit

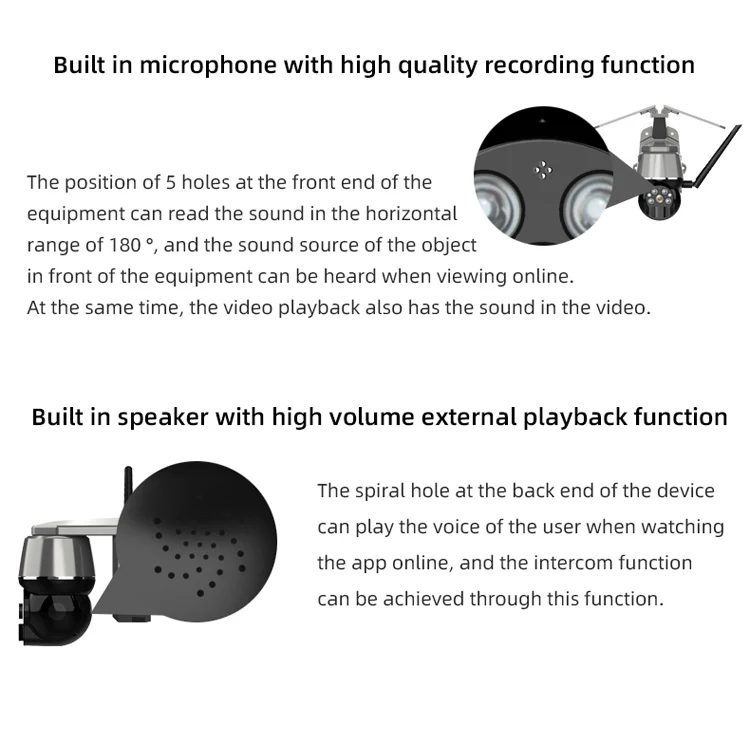

		Input/Output	Built-in MIC and Speakers, support two way audio
Alarm	PIR motion detection	Support max 12 meters PIR detection range.
		Alarm linkage	Alarm record videos to Micro SD card;Alarm mobile phone message push
Video storage	Memory card	Support up to 128G micro SD card. Support cloud storage
		Record	PIR alarm recording.
		Replay	Support App remote play and download the video

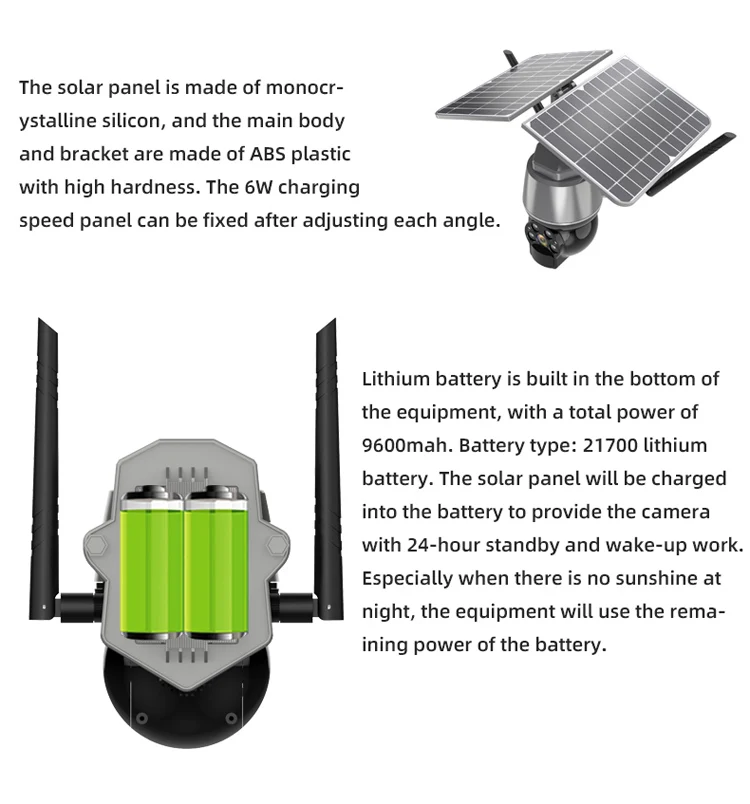

Power supply	Solar panels	2X3W monocrystalline silicon solar panel
		Battery	Built-in 2 pcs 21700 battery, total volume max 9600mAh
		Operating mode	Low power working mode
		Wake-up method	PIR alarm wake up, remote manual wake up
		Hibernation	When alarm end or remote connection disconnected.
		Power consumption	Sleeping stand-by power: 0.03W; Working: 1.3W@days/3W@night

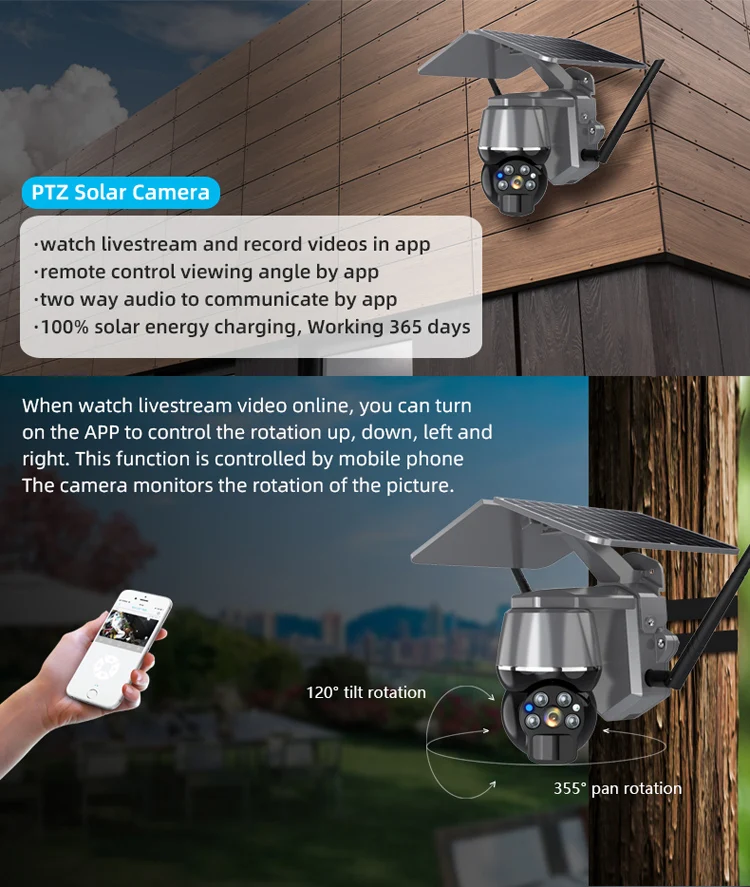

PTZ	Rotation angle	Horizon Pan: 0°～355°, Vertical Tilt: 0°～120°
		Spinning speed	Horizontal speed: 10°～ 30°/S; Vertical speed: 8°～ 25°/S
Other	Power input	DC5V 2A
		Environment	Environment -20℃~+60℃(-4℉~+140℉), Humidity 10%～80%, non-condensing
		Shell material	ABS fireproof plastic material, vandal-proof, waterproof level IP65
		Power cable	Type-c interface, extension cable 3 meters

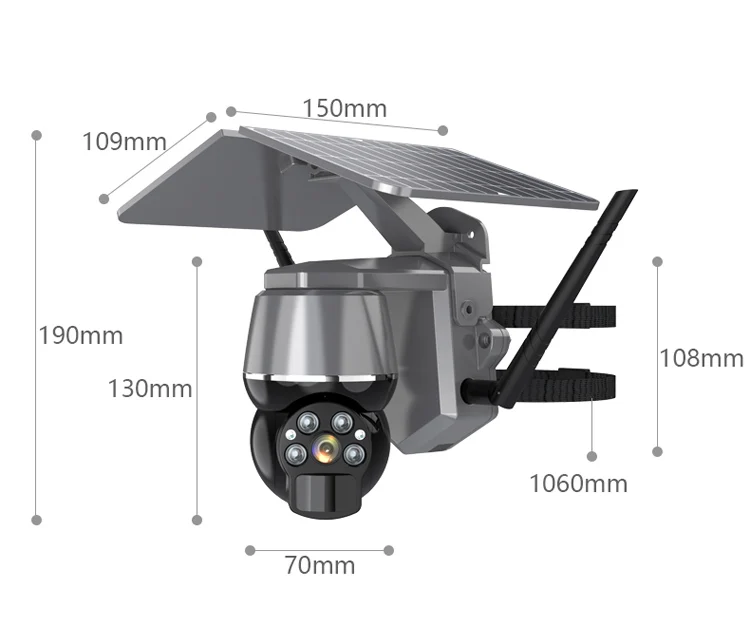

		Product Size	220mm×150mm×109mm(L×W×H)
		Package dimensions	245x218x124mm(L×W×H); Product weight: 1.4kg
		Packing list	IP Camera, Antenna, Solar panel, Support, Mounting screws, Screwdriver, USB cable, Manual,Cable tie

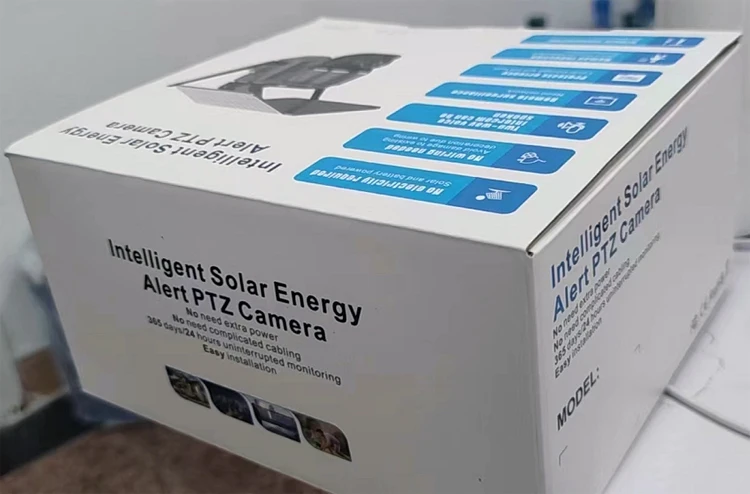

Packing & Delivery

Packing list for this solar cctv camera
1.PTZ camera x1pcs
2.Solar panel x2pcs
3.Screw x1kit
4.Tool x1pcs
5.User manual x1pcs
6.Extend cable x1pcs

Warranty: 1 Year
