Model:

P2

APP:

V380 Pro

System structure:

Embedded Linux system, ARM chip structure

Chip:

AK3918E V330

Resolution:

3.0MP

Sensor Resolution:

1/2.9″GC2063/SC2232H

Lens

4MM

View angle:

80°

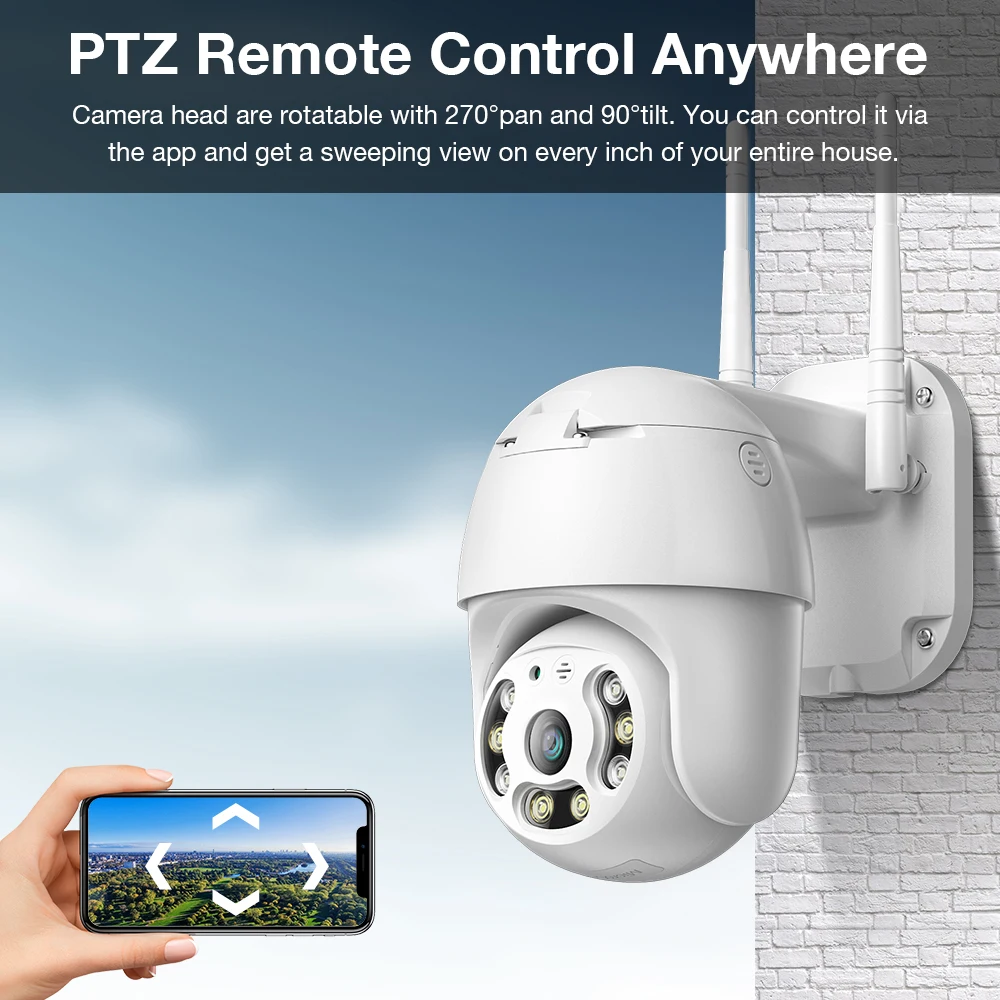

Pan-tilt:

Rotates Horizontal:355°  Vertical：90°

Preset point
quantity:

6

Video compression

standard:

H.265/20FPS

Video format:

PAL

Minimum illumination:

0.01Lux@（F2.0，VGC
ON),O.Luxwith IR

Electronic
shutter:

Auto

Backlight
compensation:

Support

Noise reduction:

2D、3D

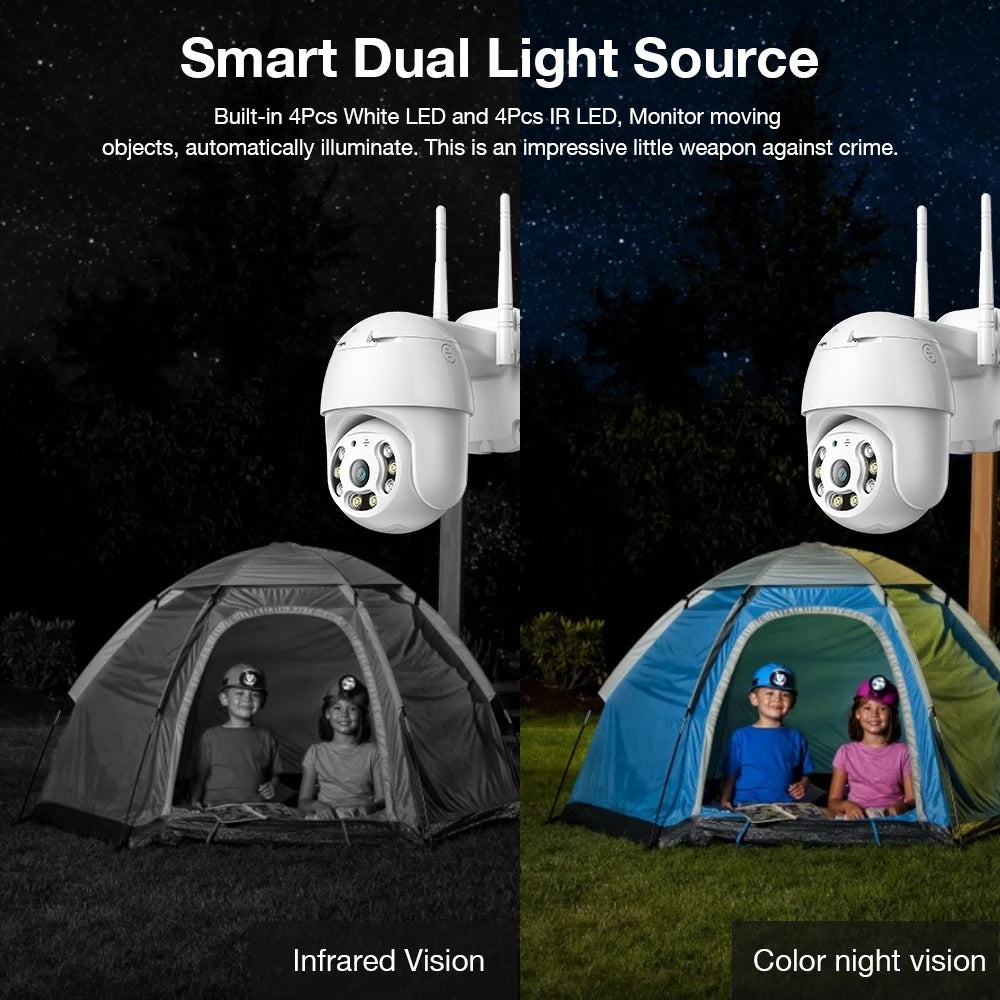

Led quantity:

4pcs White Led + 2pcs
Infrared LED

Connection method:

WIFI, AP hotspot , RJ45 Network port

Network:

WIFI wireless transmission (support IEEE802.11b/g/n wireless protocol).

Night vision

IR-CUT
switch Automatic，about
5-8meters (It varies from environment)
White Led can be remote control via APP:①Turn ON ②Turn
OFF ③ Auto
(In automatic mode, the infrared light will be turned ON after the IR-cut
switch to night vision automatically , it can intelligently detected human
body, and Turn ON/OFF the White light intelligently )

Audio:

Built-in
microphone and speaker, support two-way audio and real-time
transmission.
ADPCM audio compression standard, self-adapt to code stream

Network protocol:

TCP/IP、UDP、HTTP、DDNS、DHCP、FTP、NTP

Alarm:

①Motion detection and picture
push②AI Human intrusion Detection (optional)

ONVIF

Support ONVIF

Storage:

TF Card（Max 128G）；Cloud
storage /Cloud disk (optional)

Power input:

12V/2A

Work environment:

Working temperature:-10℃ ~ + 50℃Working Humidity: ≤95%RH
